Запчасти Case IH AFS (03-10) - HARNESS (55) - ELECTRICAL SYSTEMS

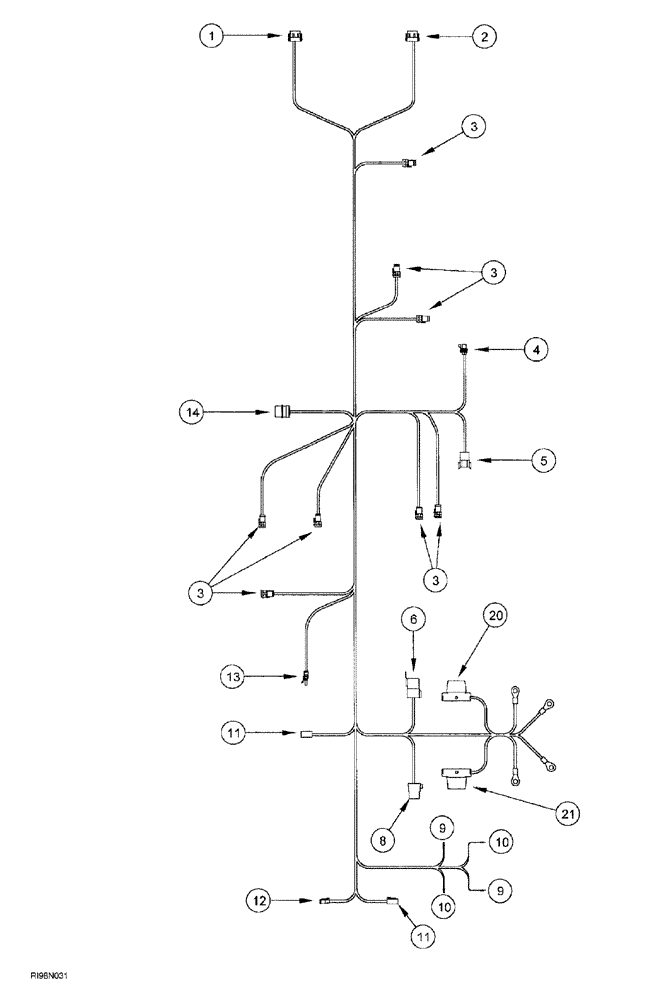

Схема запчастей Case IH AFS - (03-10) - HARNESS (55) - ELECTRICAL SYSTEMS
11
12
9
14
20
10
2
4
8
13
6
3
5
10
3
1
3
11
9
21
3

Артикул

Название

Примечание

Количество

328105A1

HARNESS

8900 Tractor

1шт.

1

223679A1

MULTIPOLE CONNECTOR,Female, 12 Pin

12-way DTM plug, black

1шт.

2

223671A1

CONTACT HOUSING,Female, 12 Pin

12-way DTM plug, gray

1шт.

3

298496A1

ELEC CONNECTOR,4 Pin

plug, 4 cavity

8шт.

4

182081A1

TERMINAL CONNECTOR,Female, 5 Pin

tower 5-way metri-pak

1шт.

5

225320C1

ELEC CONNECTOR

electrical

1шт.

6

296541A1

RELAY

80 amp.

1шт.

8

293256A2

RELAY,12V

weatherproof, 12 volt, 40 amp.

1шт.

9

280384A1

ELEC. TERMINAL PIN

size 8

2шт.

10

280386A1

ELEC CONNECTOR,Nickel, 2.0 - 3.0mm

size 12

2шт.

11

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

4-cav plug DT series

2шт.

12

225316C1

ELEC CONNECTOR,Female, 2 Pin

electrical, 2 cavity

1шт.

13

245482C1

ELEC CONNECTOR,2 Pin

wire

1шт.

14

310057A1

ELEC CONNECTOR,Male, 9 Pin

HD 10 series Receptacle

1шт.

20

338055A1

FUSE,30A, Maxival, Green

1шт.

21

338055A1

FUSE,30A, Maxival, Green

1шт.

Выбрано товаров: 16
