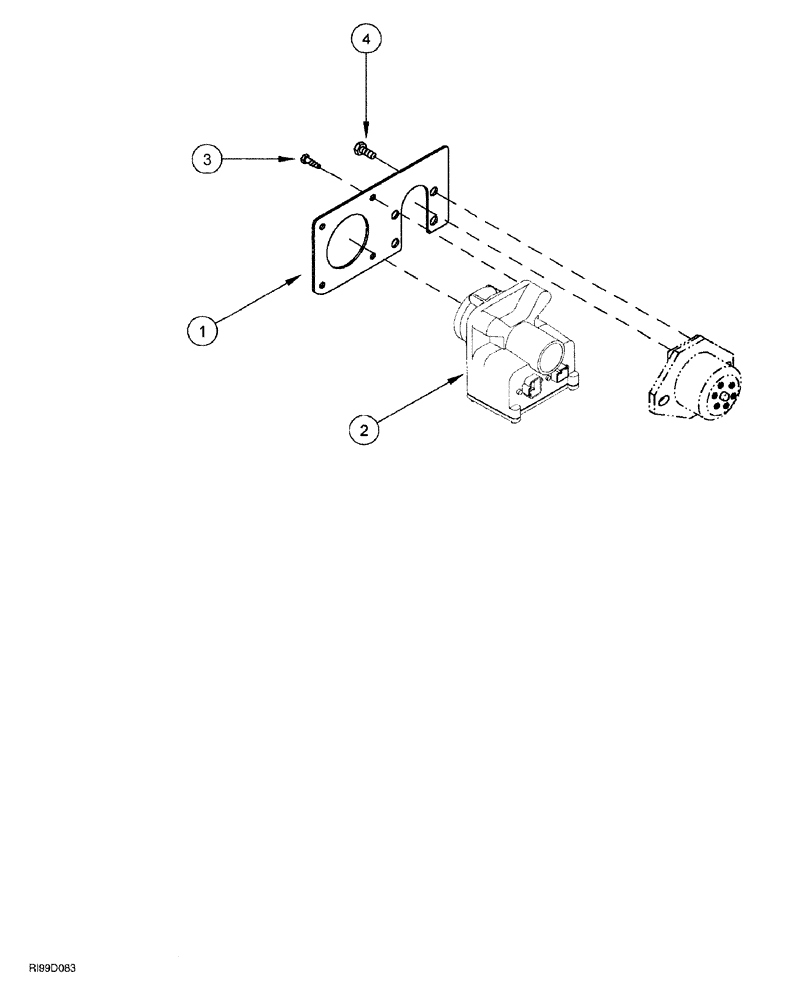

Запчасти Case IH AFS (03-08) - IMPLEMENT CONNECTOR MOUNTING (55) - ELECTRICAL SYSTEMS

1

298617A1

PLATE

MOUNT implement receptacle

1шт.

2

323597A1

MULTIPOLE CONNECTOR

implement, electrical

1шт.

3

779-34616

SELF-TAP SCREW,Hex Hd, M6.3 x 16

hex-head, 6.3 x 16 mm

4шт.

4

426-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 8

BOLT hex, 5/16 NC x 1-1/4 inch, grade 8

2шт.

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, included in the AFS display installation kit, but not shown

1шт.

417-524

BOLT,Sq Hd, 5/16" - 18 x 1-1/2", Gr 2

BOLT battery terminal, 5/16-18 x 1.5 inch, grade 2, included in the AFS display installation kit, but not shown

2шт.

425-105

NUT,5/16"-18, G5

Battery terminal, Included in the AFS display installation kit, but not shown

2шт.

131-634

SPRING NUT,J, Ret, 3/8"-16

J-type, 3/8 inch NC, included in the AFS display installation kit, but not shown

1шт.
