(03-04) - HARNESS, AFS, ADAPTER FOR STEIGER TRACTOR

Запчасти Case IH AFS (03-04) - HARNESS, AFS, ADAPTER FOR STEIGER TRACTOR (55) - ELECTRICAL SYSTEMS

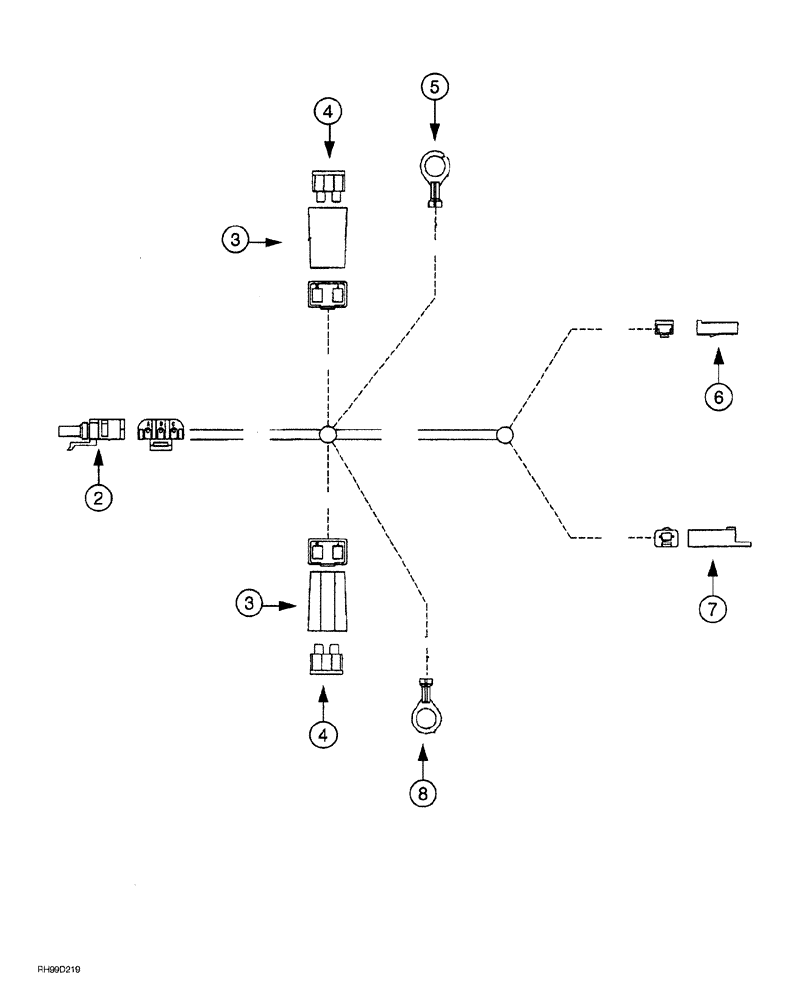

Схема запчастей Case IH AFS - (03-04) - HARNESS, AFS, ADAPTER FOR STEIGER TRACTOR (55) - ELECTRICAL SYSTEMS
7
4
6
5
8
3
4
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

336316A1

HARNESS

AFS adapter

1шт.

2

245484C1

ELEC CONNECTOR,3 Pin

plug 3 Pin

1шт.

3

247676A1

MULTIPOLE CONNECTOR,Female, 2 Pin

switched fuse

2шт.

4

A149801

FUSE,Lt Blue, 15 Amp

light blue, 15 amp.

2шт.

5

200332

TOGGLE

CONNECTOR terminal, B+

1шт.

6

223-155

ELEC CONNECTOR,Female, 1 Pin

male, single contact

1шт.

7

739070C1

CONNECTOR, ELEC

CONNECTOR single pin

1шт.

8

200329

TERMINAL

CONNECTOR terminal, ground

1шт.
