Запчасти Case IH AFS (03-02) - HARNESS (55) - ELECTRICAL SYSTEMS

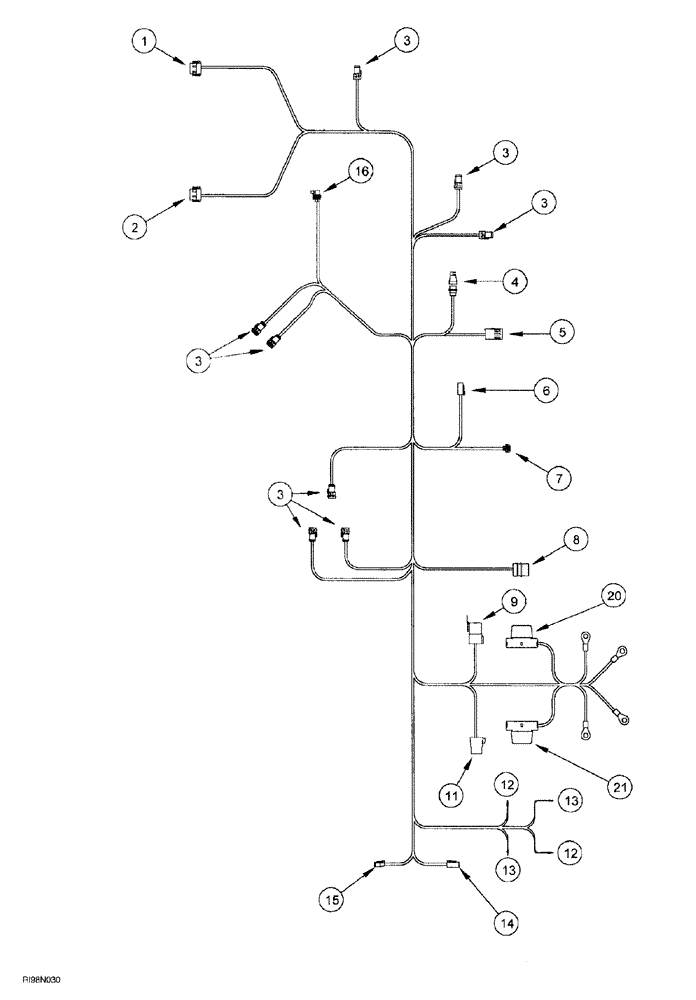

Схема запчастей Case IH AFS - (03-02) - HARNESS (55) - ELECTRICAL SYSTEMS
5
13
12
12
8
3
9
3
6
3
13
2
3
15
7
14
1
11
16
20
4
3
21

Артикул

Название

Примечание

Количество

328961A1

HARNESS

AFS Steiger tractor

1шт.

1

223671A1

CONTACT HOUSING,Female, 12 Pin

12-way DTM plug, gray

1шт.

2

223679A1

MULTIPOLE CONNECTOR,Female, 12 Pin

12-way DTM plug, black

1шт.

3

298496A1

ELEC CONNECTOR,4 Pin

plug, 4 cavity

8шт.

4

247725A1

ELEC CONNECTOR

1шт.

5

245485C1

ELEC CONNECTOR,Male, 3 Pin

receptacle, 3 cavity

1шт.

6

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

4-cav plug DT series

1шт.

7

245482C1

ELEC CONNECTOR,2 Pin

wire

1шт.

8

310057A1

ELEC CONNECTOR,Male, 9 Pin

HD 10 series Receptacle

1шт.

9

296541A1

RELAY

80 amp.

1шт.

11

293256A2

RELAY,12V

weatherproof, 12 volt, 40 amp.

1шт.

12

280384A1

ELEC. TERMINAL PIN

size 8

2шт.

13

280386A1

ELEC CONNECTOR,Nickel, 2.0 - 3.0mm

size 12

2шт.

14

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

4-cav plug DT series

1шт.

15

225316C1

ELEC CONNECTOR,Female, 2 Pin

electrical, 2 cavity

1шт.

16

182081A1

TERMINAL CONNECTOR,Female, 5 Pin

tower 5-way metri-pak

1шт.

17

323597A1

MULTIPOLE CONNECTOR

implement, electrical

1шт.

20

338054A1

FUSE,20A, Maxival, Yellow

1шт.

21

338055A1

FUSE,30A, Maxival, Green

1шт.

Выбрано товаров: 19
