(02-60) - HARNESS, TILLAGE TOW BEHIND

Запчасти Case IH AFS (02-60) - HARNESS, TILLAGE TOW BEHIND (55) - ELECTRICAL SYSTEMS

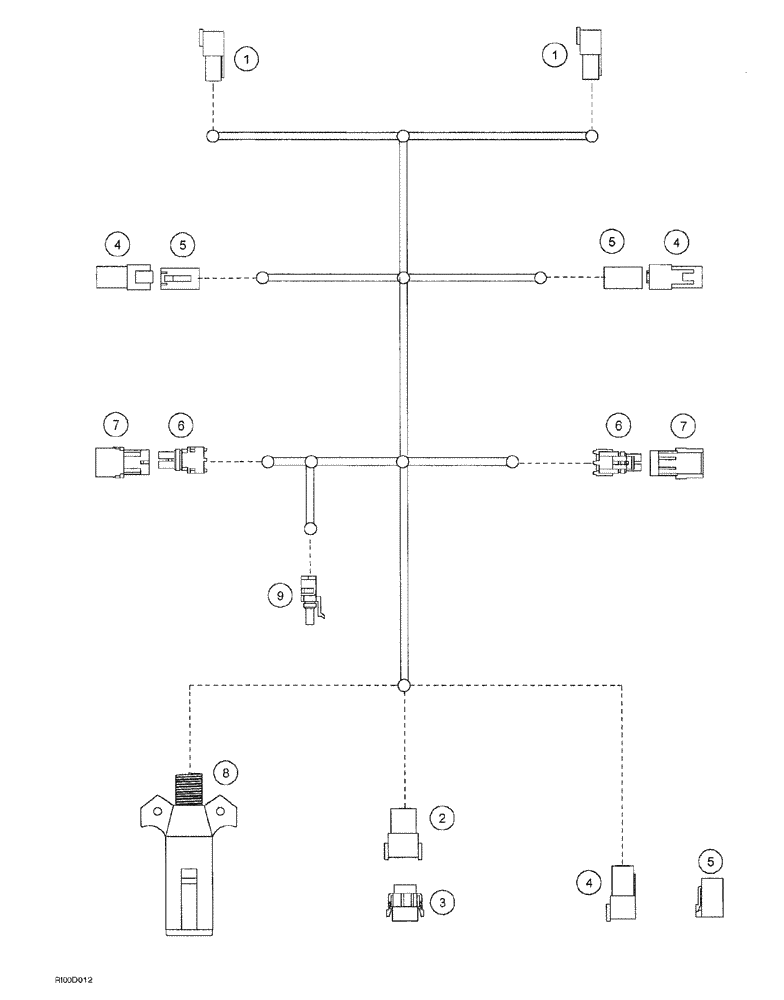

Схема запчастей Case IH AFS - (02-60) - HARNESS, TILLAGE TOW BEHIND (55) - ELECTRICAL SYSTEMS
6
5
1
3
7
4
4
2
4
6
7
8
5
9
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

352427A1

HARNESS

tillage tow behind

1шт.

1

277905A1

ELEC CONNECTOR,Male, 4 Pin

4 cavity

2шт.

2

280458A1

CONNECTOR,ELECTRIC

8 cavity

1шт.

3

280456A1

CONNECTOR,ELECTRIC

1шт.

4

225350C1

ELEC CONNECTOR,Male, 6 Pin

electrical, type LY

3шт.

5

225351C1

ELEC CONNECTOR,Female, 6 Pin

electrical, 6 cavity

3шт.

6

245482C1

ELEC CONNECTOR,2 Pin

wire

2шт.

7

245483C1

ELEC CONNECTOR,Male, 2 Pin

harness, female

2шт.

8

121646A1

CONNECTOR, 7 cavity, to tractor lights

1шт.

9

245484C1

ELEC CONNECTOR,3 Pin

plug 3 Pin

1шт.
