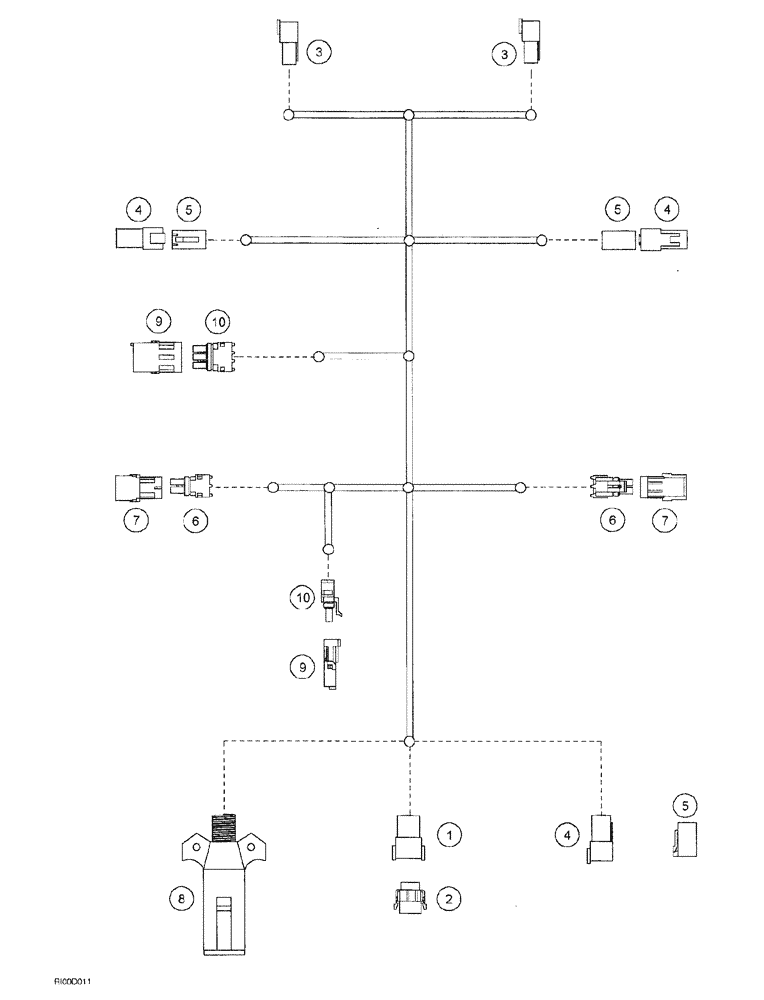

Запчасти Case IH AFS (02-58) - HARNESS, TILLAGE TOW BEHIND SDX (55) - ELECTRICAL SYSTEMS
9
3
5
10
9
3
7
1
7
5
4
6
4
10
4
2
6
8
5
№
Артикул
Название
Примечание
Количество
377863A1
HARNESS
tillage tow behind SDX
1шт.
1
280458A1
CONNECTOR,ELECTRIC
8 cavity
1шт.
2
280456A1
CONNECTOR,ELECTRIC
1шт.
3
277905A1
ELEC CONNECTOR,Male, 4 Pin
4 cavity
2шт.
4
225350C1
ELEC CONNECTOR,Male, 6 Pin
electrical, type LY
3шт.
5
225351C1
ELEC CONNECTOR,Female, 6 Pin
electrical, 6 cavity
3шт.
6
245482C1
ELEC CONNECTOR,2 Pin
wire
2шт.
7
245483C1
ELEC CONNECTOR,Male, 2 Pin
harness, female
2шт.
8
121646A1
CONNECTOR, 7 cavity, to tractor lights
1шт.
9
245485C1
ELEC CONNECTOR,Male, 3 Pin
receptacle, 3 cavity
2шт.
10
245484C1
ELEC CONNECTOR,3 Pin
plug 3 Pin
2шт.
Выбрано товаров: 11
