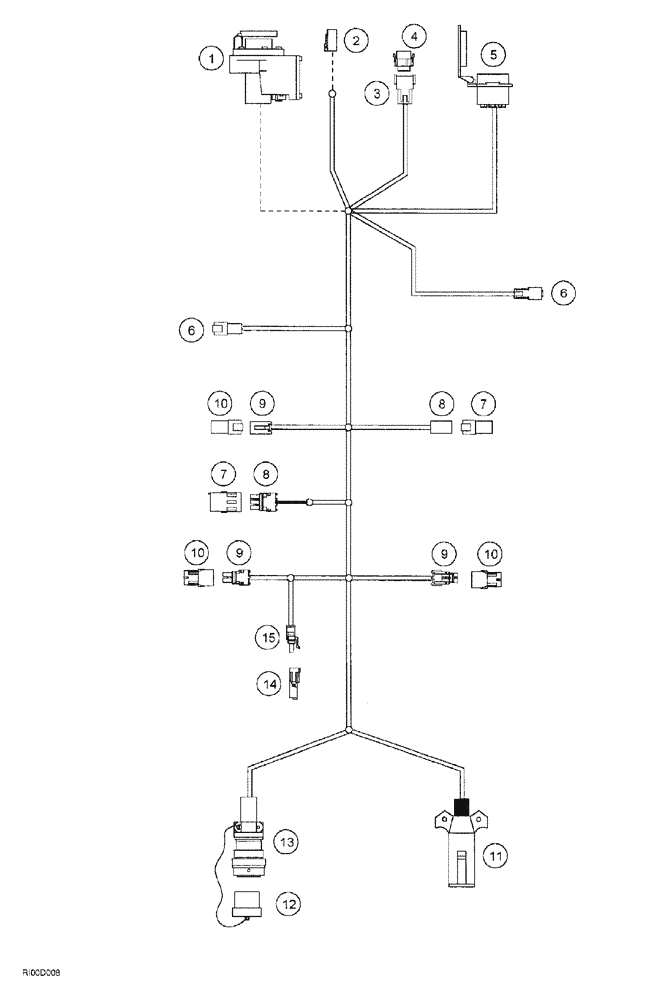

Запчасти Case IH AFS (02-54) - HARNESS, TILLAGE TOW BEHIND SDX (55) - ELECTRICAL SYSTEMS

377862A1

HARNESS

tillage tow behind SDX

1шт.

1

323597A1

MULTIPOLE CONNECTOR

implement, electrical

1шт.

2

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

4-cav plug DT series

1шт.

3

280458A1

CONNECTOR,ELECTRIC

8 cavity

1шт.

4

280456A1

CONNECTOR,ELECTRIC

1шт.

5

121645C1

MULTIPOLE CONNECTOR,7 Pin

covered, 7 cavity

1шт.

6

277905A1

ELEC CONNECTOR,Male, 4 Pin

4 cavity

2шт.

7

225350C1

ELEC CONNECTOR,Male, 6 Pin

electrical, type LY

2шт.

8

225351C1

ELEC CONNECTOR,Female, 6 Pin

electrical, 6 cavity

2шт.

9

245482C1

ELEC CONNECTOR,2 Pin

wire

2шт.

10

245483C1

ELEC CONNECTOR,Male, 2 Pin

harness, female

2шт.

11

121646A1

CONNECTOR, 7 cavity, to tractor lights

1шт.

12

245043C1

CAP

electrical connector, type EB, chain to connector 13 below

1шт.

13

279043A1

ELEC CONNECTOR,Female, 9 Pin

electrical

1шт.

14

245485C1

ELEC CONNECTOR,Male, 3 Pin

receptacle, 3 cavity

2шт.

15

245484C1

ELEC CONNECTOR,3 Pin

plug 3 Pin

2шт.
