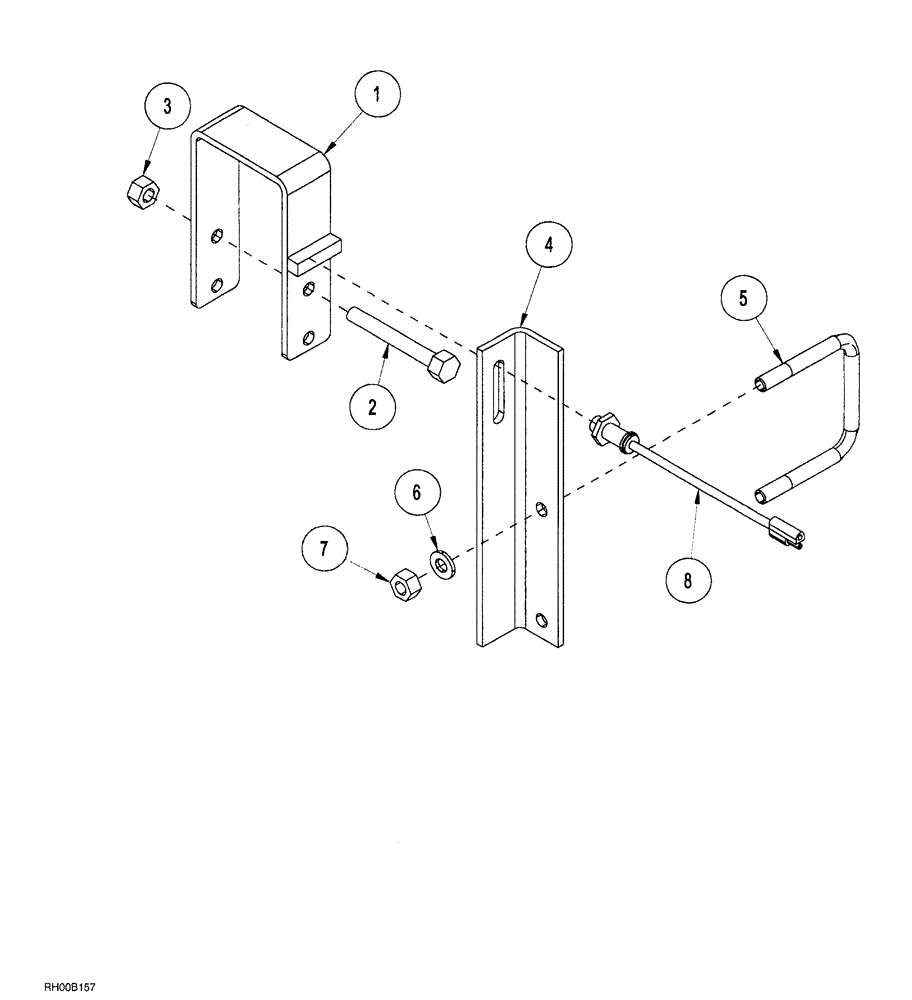

Запчасти Case IH AFS (02-36) - IMPLEMENT STATUS SWITCH MOUNTING (55) - ELECTRICAL SYSTEMS

1

1030498

MOUNTING PARTS

BRACKET magnet

1шт.

2

413-448

BOLT,Hex, 1/4" - 20 x 3", Gr 5

BOLT hex, 1/4 NC x 3 inch

1шт.

3

231-1444

NUT,1/4"-20, GB

1шт.

4

1030502

BRACKET

implement status switch

1шт.

5

1030501

U-BOLT

3/8 NC x 4 inch

1шт.

6

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

2шт.

7

231-1446

NUT,3/8" - 16, Gr 5

2шт.

8

308311A1

SWITCH

implement status, up/down

1шт.
