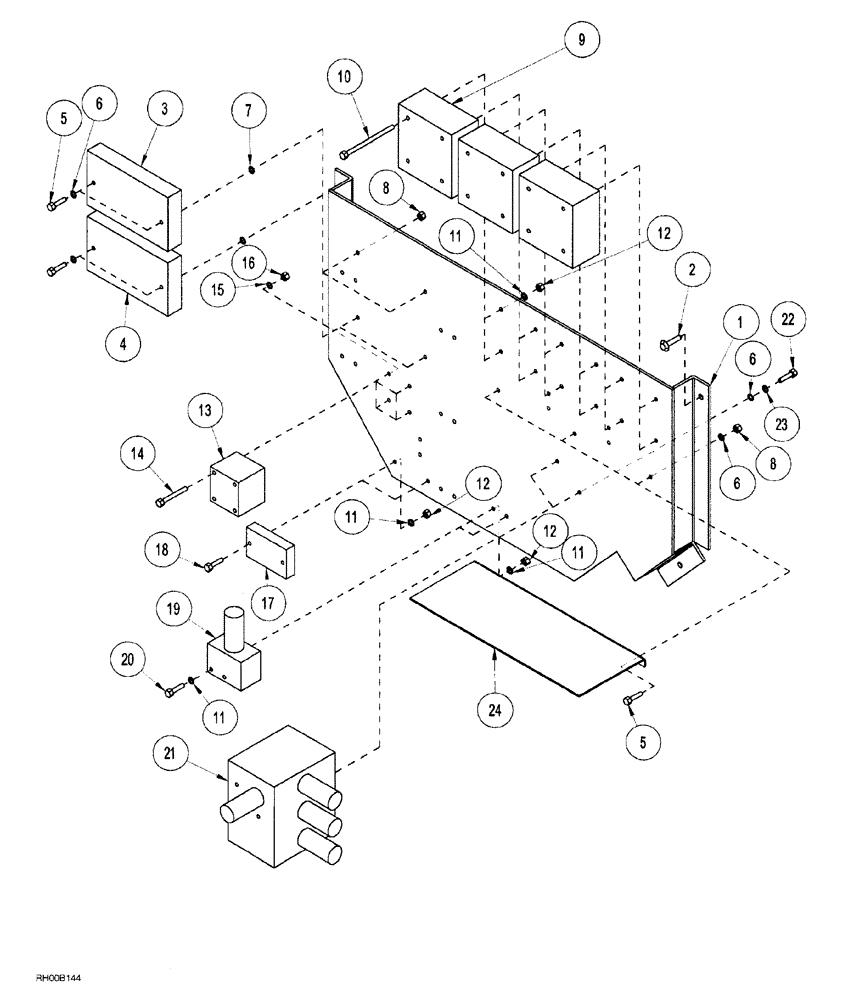

Запчасти Case IH AFS (02-04) - CONTROL ASSEMBLY, AFS CONCORD (55) - ELECTRICAL SYSTEMS

1

312217A1

MOUNTING PARTS

AFS components

1шт.

2

283-24916

SELF-TAP SCREW,Hex Wash Hd, 3/8"-32 x 1"

self-tapping, hex washer head, 3/8 NC x 1 inch

4шт.

3

330314A1

BOARD, PRINTED CIRCU

IT MODULE multi-channel controller, without software

1шт.

3

405513A1R

REMAN-MODULE

Reman for New PN 330314A1

1шт.

3

405513A1C

CORE-MODULE

Return Number

1шт.

4

330315A2

PRINTED CIRCUIT BOAR

MODULE monitor interface controller, without software

1шт.

4

405514A1R

REMAN ELECT CONTROL

AFS CONCORD AIR SYSTEMS, MODULE monitor interface controller, without software, Reman for New PN 330315A2

1шт.

4

405514A1C

CORE-ELECTRONIC CONT

Return Number

1шт.

5

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

7шт.

6

495-11034

WASHER,5/16", SAE

(Flat, 11/32 x 11/16 x 1/16")

9шт.

7

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

4шт.

8

231-1445

NUT,5/16"-18, GB

7шт.

9

293807A4

CONTROL BLOCK

MODULE bin level gateway, for 2300, 3400

2шт.

9

293807A4

CONTROL BLOCK

MODULE bin level gateway, for 3503

3шт.

10

413-460

BOLT,Hex, 1/4" - 20 x 3-3/4", Gr 5

BOLT hex, 1/4 NC x 3-3/4 inch

12шт.

11

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

30шт.

12

231-1444

NUT,1/4"-20, GB

16шт.

13

323081A1

PANEL

fuse

1шт.

14

440-11032

SCREW,Cross Pan Hd, #10-24 x 2"

10 x 2 inch

4шт.

15

495-31022

WASHER,#10

4шт.

16

231-14409

NUT,#10-24, GB

hex, NC

4шт.

17

284638A2

ELEC CONNECTOR,4 Pin

terminator, active

1шт.

18

414-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

BOLT hex, 1/4 NF x 3/4 inch

2шт.

19

226734A4

VALVE

proportional flow control, 3503 only, see Figure 02-06

1шт.

20

1302308

BOLT

hex, 1/4 x 2.50

2шт.

21

293519A3

VALVE

multi vary rate, see Figure 02-08

1шт.

22

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

23

492-11031

LOCK WASHER,5/16"

2шт.

24

312310A1

PLATE

SHIELD heat

1шт.
