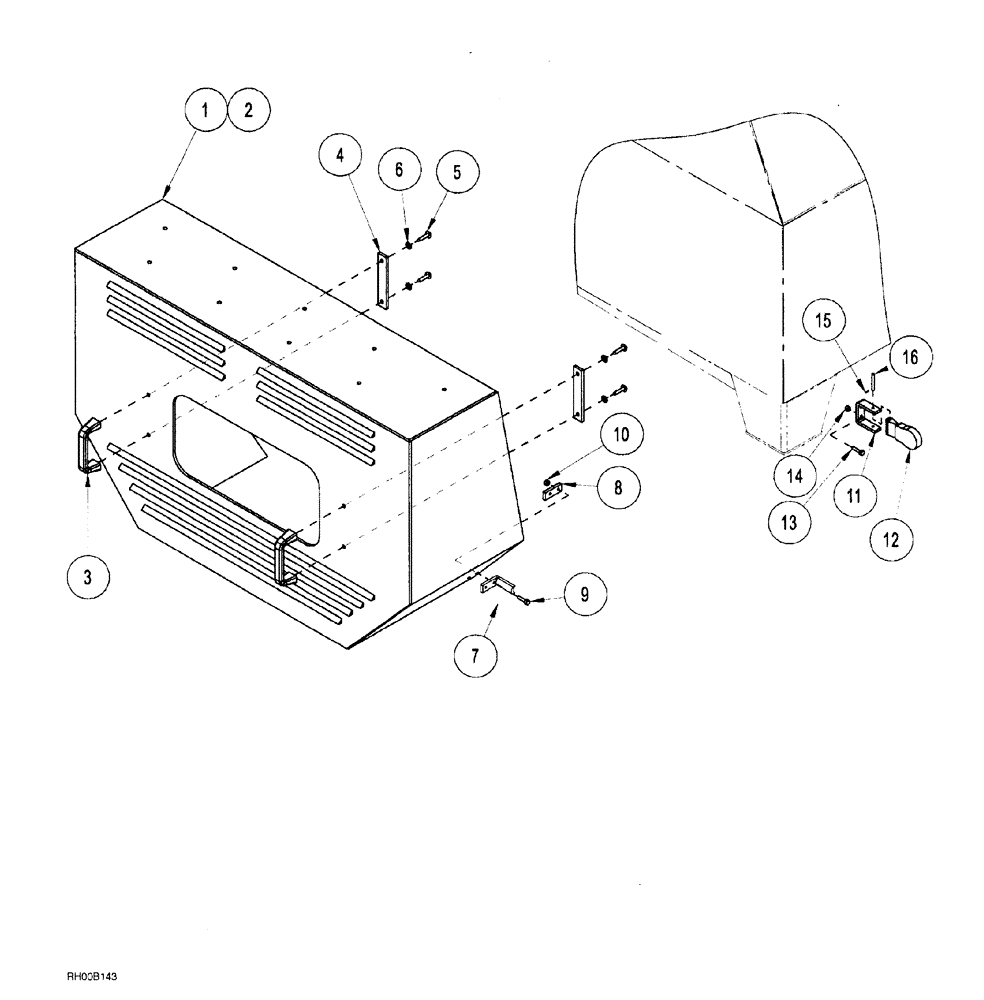

Запчасти Case IH AFS (02-02) - COVER, AFS CONTROL CENTER (55) - ELECTRICAL SYSTEMS

1

312726A1

COVER

ASSEMBLY, AFS, 2300/3400/3503

1шт.

2

NSS

NOT SOLD SEPARAT

COVER poly AFS component

1шт.

3

312523A1

HANDLE

AFS component cover

2шт.

4

312725A1

PLATE

handle mount

2шт.

5

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

6

492-11031

LOCK WASHER,5/16"

2шт.

7

L105124

LATCH HOOK

HOOK latch

4шт.

8

312724A1

PLATE

fastener

4шт.

9

470-11012

SCREW,Pan HD, #10 - 24 x 3/4"

8шт.

10

231-51409

SERRATED NUT,Flg, USR, #10-24

8шт.

11

188103C2

BRACKET

hood anchor

4шт.

12

494307C1

LATCH

hold down

4шт.

13

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

4шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

7шт.

15

432-812

COTTER PIN,3/4" OAL x 1/8" W

4шт.

16

439-1424

HEADED PIN,6.35mm OD x 38.1mm L

4шт.
