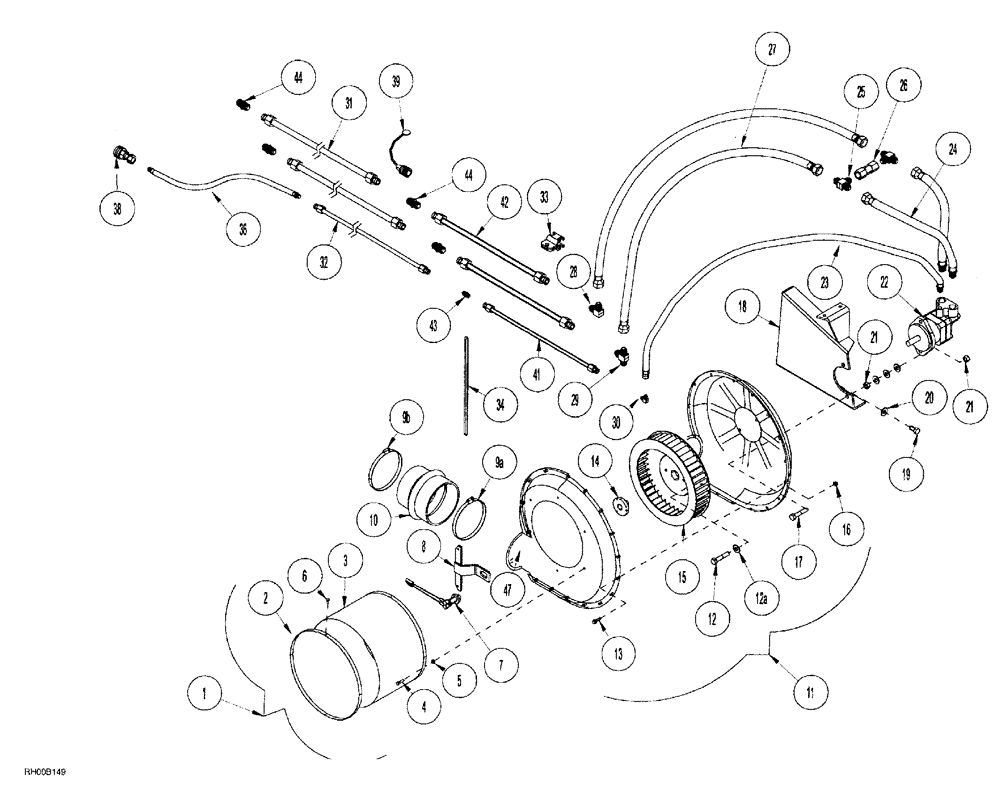

Запчасти Case IH AFS (02-18) - HYDRAULIC BLOWER AND MOUNTING HYDRAULIC LINES, DRAWPOLE TO BLOWER (35) - HYDRAULIC SYSTEMS

1

1020801

SCREEN

KIT

1шт.

2

1020540

SCREEN

end

1шт.

3

1020543

SCREEN

1шт.

4

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

4

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

5

1020416

WASHER

flat, 1/4 inch

6шт.

6

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

self-tapping, hex head, 1/4 NC x 1/2 inch

4шт.

7

324049A1

SENSOR

speed hall

1шт.

8

290952A1

BRACKET

fan speed sensor

1шт.

9a

1016416

CLAMP

hose, 5.56 - 6.50 inch

1шт.

9b

214-1488

HOSE CLAMP,130.05mm - 152.4mm

Adj.

1шт.

10

1014892

HOSE,5.00" ID, 6.00" ID x 6.00"

Hump reducer

1шт.

11

1024770

BLOWER

MODIFICATION hydraulic

1шт.

11a

1015650

HOUSING

inlet

1шт.

11b

1024907

HOUSING

drive side

1шт.

1023712

BOLT AND NUT

adjustment

2шт.

1020418

BLOWER

hydraulic

1шт.

12

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

2шт.

13

409-7416

BOLT,Hex Flg, 1/4" - 20 x 1", Spcl

16шт.

14

1020459

BUSHING

hub, taper lock

1шт.

15

1024908

FAN

ROTOR

1шт.

16

1015656

NUT

flange lock, 1/4 inch

16шт.

17

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

18

1020527

MOUNTING PARTS

BRACKET hydraulic

1шт.

19

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

20

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

21

425-108

NUT,1/2" - 13, Gr 5

6шт.

22

1013988

MOTOR, HYDRAULIC

1шт.

1013988R

REMAN-HYD MOTOR

AFS - CONCORD Air Systems

1шт.

1013988C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

312672A1

SEAL KIT

Seal Kit For 1013988

1шт.

23

1015017

HOSE ASSY.

.38 x 44 inch

1шт.

24

1024327

HOSE ASSY.

.75 x 19 inch

2шт.

25

218-556

TEE,1 1/16"-12, 37 Degree x 3/4"-14, NPTF Br

TEE, 3/4 PT branch x 1-1/16-12 inch flare x flare

2шт.

26

1024320

VALVE, CHECK

1шт.

27

1024330

HOSE ASSY.

.75 x 34 inch

2шт.

28

218-476

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC

90°, 1-1/16-12 inch flare x flare

1шт.

29

218-596

TEE,1 1/16"-12 37 Degree

TEE, 1-1/16-12 inch flare branch x flare x flare

1шт.

30

218-474

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male JIC

1шт.

31

1024393

HYD TUBE,19.1 mm OD, 3353 mm Length

3503, 3400, 2300

2шт.

31

1015025

HYD TUBE,19.1 mm Diameter, 3048 mm Length

2000

2шт.

32

1024392

HYD TUBE,12.7 mm Diameter, 3353 mm Length

3503, 3400, 2300

1шт.

32

1015026

HYD TUBE,12.7 mm Diameter, 3048 mm Length

2000

1шт.

33

1015018

CLAMP

tube

2шт.

33

S97491

CLAMP

tube

4шт.

34

1021331

RUBBER

TRIM

2шт.

36

1018860

HOSE ASSY.

.38 x 130 inch

1шт.

38

1018128

FITTING

quick coupling

1шт.

38

1018131

FITTING

quick coupling

1шт.

39

114533A1

DUST CAP

CAP dust

2шт.

39

114534A1

PLUG

dust

2шт.

39

1015978

DUST CAP

1шт.

39

1015979

PLUG

dust

1шт.

39

1026167

PLUG

CAPLUG, .50

1шт.

39

1026168

CAP

CAPLUG, .75

1шт.

40

1030323

EXTENSION

boss

1шт.

41

1027941

TUBE,0.5" Diameter, 22" Length

3503, 3400

1шт.

42

1027942

TUBE,0.75" Diameter, 22" Length

3503, 3400

2шт.

43

1028916

ADAPTER

3503, 3400

1шт.

44

218-737

UNION,1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

CONNECTOR straight, 1-1/16-12 inch flare, 3500, 3400

4шт.
