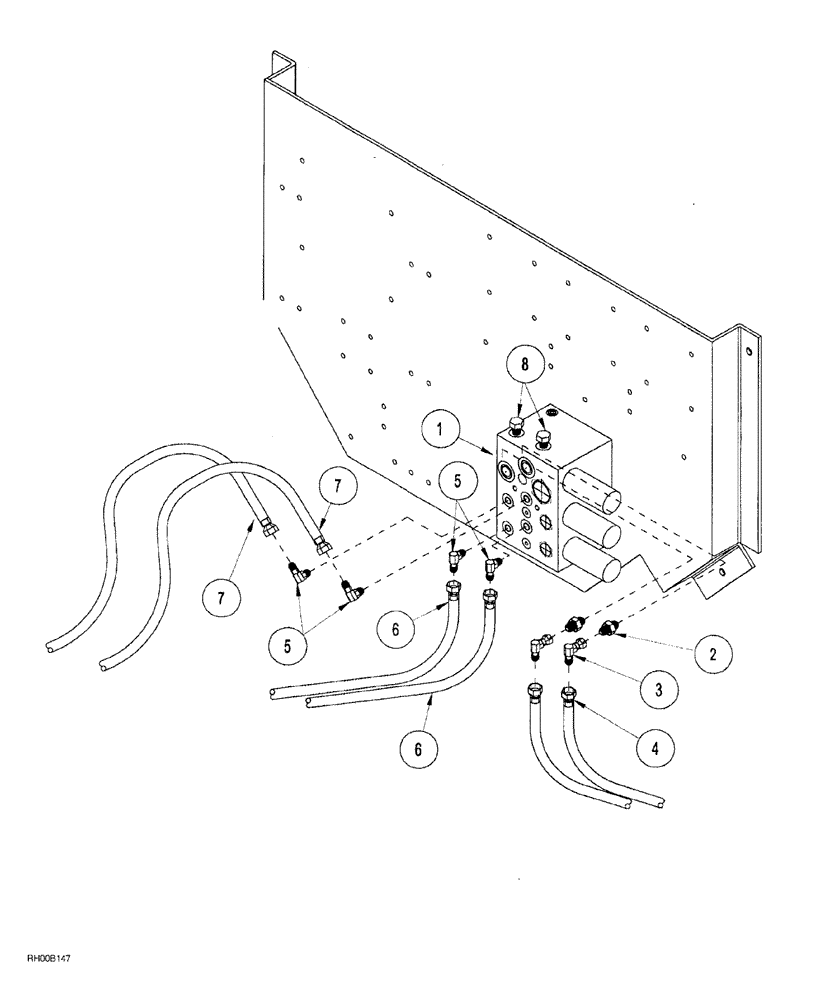

Запчасти Case IH AFS (02-14) - HYDRAULIC FITTINGS (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

VALVE multi vary rate, see Figures 02-04 and 02-08, AFS Concord 2300

1шт.

2

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER straight, 1-1/16-12 inch flare x O-ring boss, AFS Concord 2300

2шт.

Ref. 2, 3, and 4 as shown are for hydraulic fan models only. These ports use fitting P/N 218-5212 plug-soc hd or boss 1-1/16-12 on diesel fan models.

1шт.

3

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

AFS Concord 2300

2шт.

Ref. 2, 3, and 4 as shown are for hydraulic fan models only. These ports use fitting P/N 218-5212 plug-soc hd or boss 1-1/16-12 on diesel fan models.

1шт.

4

312420A1

HYDRAULIC HOSE,19.05 mm ID x 450.00 mm

15 inch, AFS Concord 2300

2шт.

Ref. 2, 3, and 4 as shown are for hydraulic fan models only. These ports use fitting P/N 218-5212 plug-soc hd or boss 1-1/16-12 on diesel fan models.

1шт.

5

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90°, 9/16-18 inch flare x adj. O-ring boss, AFS Concord 2300

4шт.

6

1264172C2

HYDRAULIC HOSE,6.40 mm ID x 2665.00 mm, SAE 100R1

2667 mm (105 inch) long, to rear motor, AFS Concord 2300

2шт.

7

1277717C1

HYDRAULIC HOSE,6.35 mm ID x 1525.00 mm

To front motor, AFS Concord 2300

2шт.

8

71100209

PLUG,Hex Soc, 3/4"-16 ORB

AFS Concord 2300

2шт.

1

REF

INSTRUCTION

VALVE multi vary rate, see Figures 02-04 and 02-08, AFS Concord 3400

1шт.

2

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER straight, 1-1/16-12 inch flare x O-ring boss, AFS Concord 3400

2шт.

Ref. 2, 3, and 4 as shown are for hydraulic fan models only. These ports use fitting P/N 218-5212 plug-soc hd or boss 1-1/16-12 on diesel fan models.

1шт.

3

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

AFS Concord 3400

2шт.

Ref. 2, 3, and 4 as shown are for hydraulic fan models only. These ports use fitting P/N 218-5212 plug-soc hd or boss 1-1/16-12 on diesel fan models.

1шт.

4

312420A1

HYDRAULIC HOSE,19.05 mm ID x 450.00 mm

15 inch, AFS Concord 3400

2шт.

Ref. 2, 3, and 4 as shown are for hydraulic fan models only. These ports use fitting P/N 218-5212 plug-soc hd or boss 1-1/16-12 on diesel fan models.

1шт.

5

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90°, 9/16-18 inch flare x adj. O-ring boss, AFS Concord 3400

4шт.

6

1254526C2

HOSE ASSY.

3429 mm (135 inch) long, to front motor, AFS Concord 3400

2шт.

7

1277717C1

HYDRAULIC HOSE,6.35 mm ID x 1525.00 mm

To rear motor, AFS Concord 3400

2шт.

8

71100209

PLUG,Hex Soc, 3/4"-16 ORB

AFS Concord 3400

2шт.
