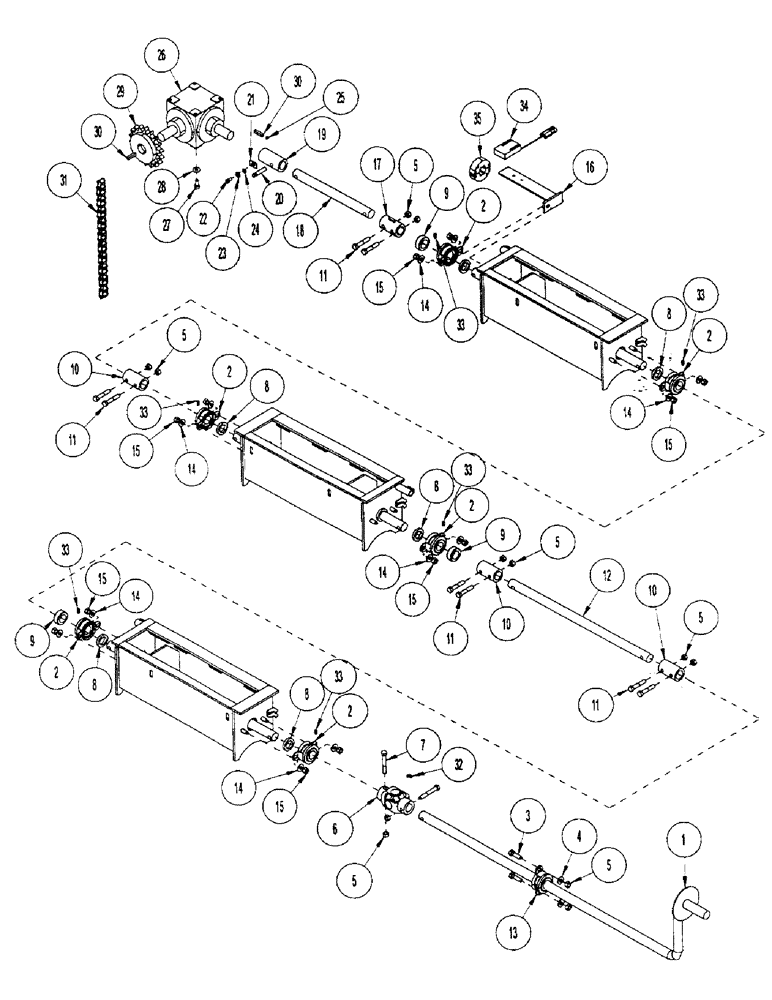

Запчасти Case IH 3503 (E16) - METER DRIVE LINE - 3503

1

1032470

CRANK

ASSY - crank

1шт.

1

1032485

DECAL

- indicator

1шт.

2

1012986

BEARING ASSY,25.4mm ID

BEARING FLANGE/A

6шт.

3

1011601

BOLT

BOLT - hex: .38 x 1.25 NC GR5 ZP

6шт.

5

425-106

NUT,3/8"-16, Cl 5

12шт.

6

1013301

JOINT

- universal (Rework)

1шт.

7

1015174

BOLT

BOLT - hex: .38 x 2.50 NC GR5 ZP

2шт.

8

1012978

SEAL

WASHER - rubber

6шт.

9

1013418

COLLAR

- set: 1.00

4шт.

10

1012996

TUBE,1.03" ID, 1.5" OD

- coupler

3шт.

11

1011725

BOLT

BOLT - hex: .38 x 2.00 NC GR5 ZP

8шт.

12

1033052

SHAFT

- connecting

1шт.

13

1030961

FLANGED BEARING,25.63mm ID

BEARING FLANGE/A

1шт.

14

1033262

WASHER

- flat: SAE .38 SS

12шт.

15

1033268

NUT

- nylock: .38 NC SS

12шт.

16

1025088

BRACKET

- sensor (Discontinued used W/M100 electrical sys)

1шт.

16

290354A1

BRACKET

/ W shaft sensor (See M200 Elec. for hardware)

1шт.

17

1025089

COUPLING

ASSY - coupler

1шт.

18

1021215

SHAFT

- connector

1шт.

19

1013042

TUBE,1.017" ID, 1.5" OD

- coupler 1.5 x 1.00 x 3.00

1шт.

20

1013218

PIN

Shear, Brass

1шт.

21

1013221

STRIP

- shear pin

1шт.

22

1013243

BOLT

BOLT - hex: .25 x .50 NC GR5 ZP

1шт.

23

0100979

WASHER

- flat: SAE .25 ZP

1шт.

24

1013242

WASHER, LOCK

WASHER - lock: .25 ZP

1шт.

25

1013044

SET SCREW

SCREW - set: .25 x .25 NC GR8 NP

1шт.

26

0100908

GEARBOX ASSY

ASSY - bevel gear drive

1шт.

27

1011600

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT - hex: .38 x 1.00 NC GR5 ZP

4шт.

28

95-11041

WASHER,3/8"

- flat: SAE .38 ZP

8шт.

29

1022874

SPROCKET ASSY.

SPROCKET - 60BS16 x 1.00 Martin: w/tire 1021954

1шт.

29

1025228

SPROCKET ASSY.

SPROCKET - 6015 x 1.00 bore: w/tires 1025683 & 1029688

1шт.

30

1012975

KEY

: .250 x .250 x 1.250

2шт.

31

1022845

CHAIN (AG)

CHAIN - roller: 29 links #60

1шт.

31

1018683

LINK

- offset: #60 OL

2шт.

31

1022965

LINK, CONNECTING

LINK - connector: #60 .750 Ptch

2шт.

32

1011747

FITTING

ZERK - grease: .25-28 NFT 45D

1шт.

33

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

ZERK - grease: .25 UNF STR

6шт.

34

290353A1

SENSOR

SMART SHAFT

1шт.

35

290356A1

RING

SENSOR MAGNETIC RING

1шт.

To convert from M100 to M200 order the following:

1шт.

306973A1 M100 to M200 for 3503 Hydraulics.

1шт.
