Запчасти Case IH 3400 (F09) - SECONDARY MANIFOLD, TUBES AND STANDS, DISCONTINUED

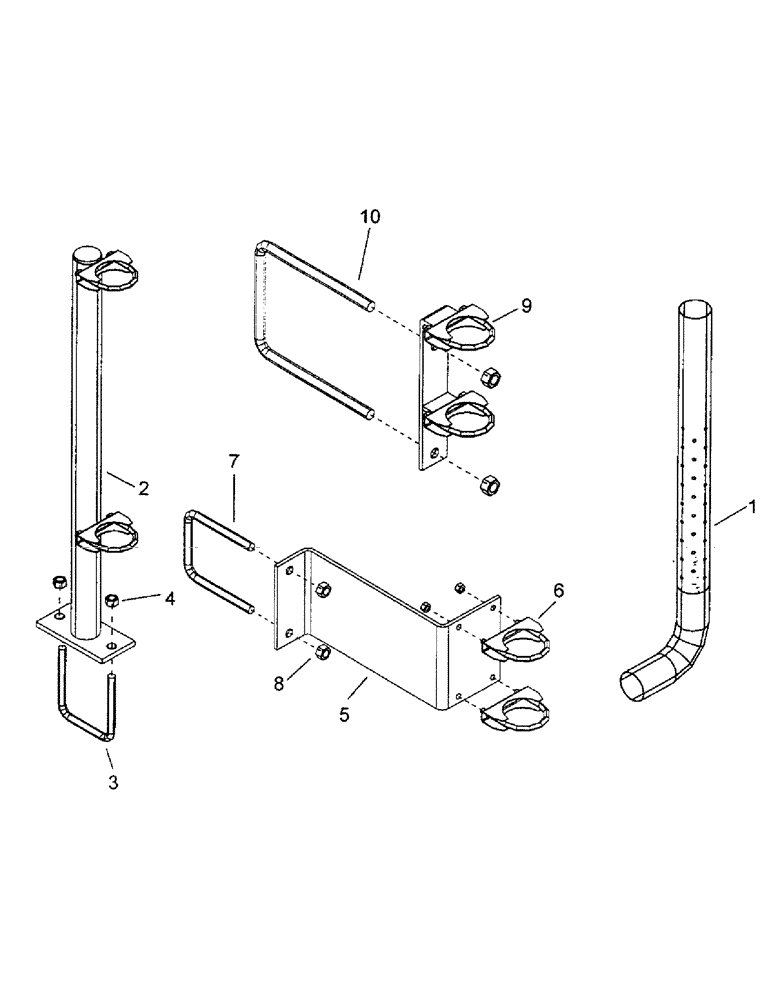

Схема запчастей Case IH 3400 - (F09) - SECONDARY MANIFOLD, TUBES AND STANDS, DISCONTINUED
8
2
9
7
10
5
4
1
3
6

Артикул

Название

Примечание

Количество

1

1013209

TUBE,2.5" Diameter, 32.875" Length

SECONDARY TUBE - standard

1шт.

1026248

TUBE,34.12" Length

SECONDARY TUBE - dimpled

1шт.

2

1013211

LARGE PLATE

WLDMT - bracket - manifold

1шт.

3

1011821

BOLT

U-BOLT, 5/8" x 4 3/4" x 5 3/4"

1шт.

4

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

2шт.

5

1026557

BRACKET

1шт.

6

1013060

CLAMP

- muffler 2 1/2"

2шт.

7

1016523

BOLT

U-BOLT, 1/2" x 4 17/32" x 3"

1шт.

8

231-1448

NUT,1/2"-13, GB

nylock, 1/2"

2шт.

9

1025496

ANCHOR

WLDMT - mount, secondary, 3" x 4"

1шт.

1025497

ANCHOR

WLDMT - mount, secondary

1шт.

10

1025491

U-BOLT

5/8" x 7" x 8 1/2"

1шт.

Выбрано товаров: 12
