Запчасти Case IH 3400 (E68) - ELECTRICAL DIESEL M100 - DISCONTINUED

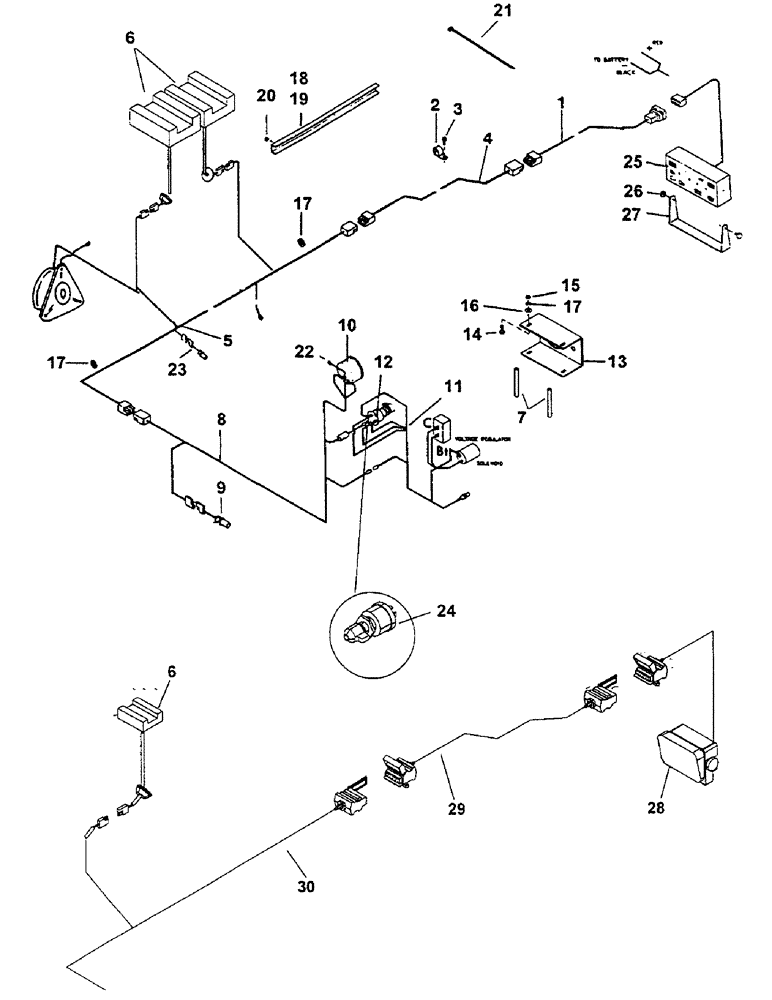

Схема запчастей Case IH 3400 - (E68) - ELECTRICAL DIESEL M100 - DISCONTINUED
28
30
2
18
17
17
27
17
4
12
24
25
20
13
19
21
16
10
7
22
14
29
3
15
5
6
6
23
9
1
26
8
11

Артикул

Название

Примечание

Количество

1

1024929

HARNESS

WIRING HARNESS, tractor, 20 Ft.

1шт.

2

1016352

CLAMP

harness

5шт.

3

100862

GASKET

SCREW

5шт.

4

1024928

HARNESS

WIRING HARNESS, tillage, 40 Ft.

1шт.

5

1024927

HARNESS

WIRING HARNESS, air system

1шт.

6

1027706

SENSOR

BIN LEVEL SENSOR

3шт.

Use 2.688" x 3.375". If sensor is 1-3/16" x 4-1/8" use part number 1016121

1шт.

7

1029677

SPACER

TUBE SPACERS

2шт.

8

1021293

HARNESS

WIRING HARNESS, tach and engine

1шт.

9

1016300

SENSOR

MAGNETIC PICKUP

1шт.

10

1016068

METER

TACHOMETER

1шт.

11

1016281

HARNESS

WIRING HARNESS, ignition and pressure

1шт.

12

1016194

IGNITION SWITCH

START AND IGNITION SWITCH

1шт.

13

1027379

PANEL

INSTRUMENT PANEL

1шт.

14

1029678

BOLT

BOLT, hex, 3/8" x 6", NC, GR5 (Order 413-696)

2шт.

15

232-1446

NUT,3/8"-16, GC

NUT, nylock, 3/8", NC, GR6 (Order 232-1446)

2шт.

16

1011828

WASHER

flat, 3/8", ZP

4шт.

17

1016235

GROMMET

4шт.

18

1033311

CHANNEL

wire protector

1шт.

19

1029654

CHANNEL

wire protector

1шт.

20

231-1445

NUT,5/16"-18, GB

NUT, hex, 5/16", NC, GR6, ZP

11шт.

21

1019700

CABLE TIE,.350" x 17 3/4"

TIE, 17 3/4"

14шт.

22

1016466

ELECTRICAL WIRE

WIRE, tachometer ground

1шт.

23

1024930

SENDER UNIT

SENDING UNIT, TR-100-7

1шт.

24

1016388

ELEC. TERMINAL PIN

CONNECTOR

1шт.

25

1024891

CONTROL

MONITOR BOX (Model 100)

1шт.

26

1024940

BRACKET

MONITOR BOX MOUNT BRACKET

1шт.

27

1024941

KNOB

2шт.

28

1027488

BOX

- monitor, Vansco 3503 only

1шт.

29

1027491

HARNESS

- tillage 3503 only

1шт.

30

1027490

HARNESS

- tank 3503 only

1шт.

Выбрано товаров: 31
