Запчасти Case IH 3400 (E54) - DIESEL AUGER FITTINGS, NO ATD, AND 3 AND 4 RANK ATD

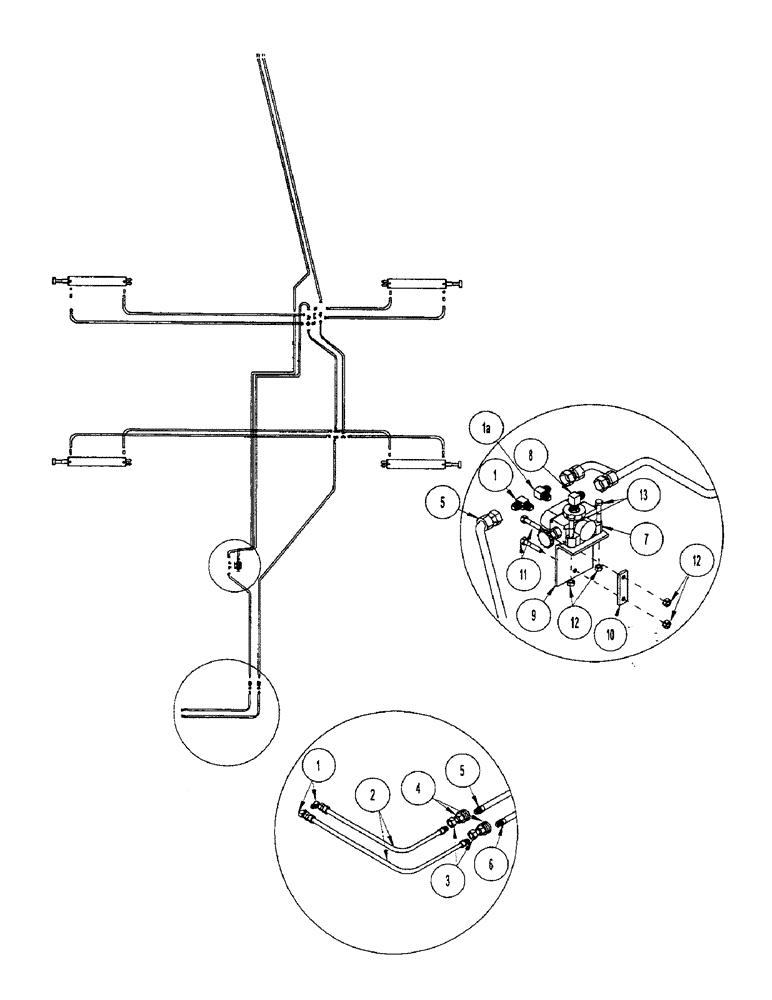

Схема запчастей Case IH 3400 - (E54) - DIESEL AUGER FITTINGS, NO ATD, AND 3 AND 4 RANK ATD
1
3
4
5
10
9
1
12
1
7
6
5
11
12
2
13
8

Артикул

Название

Примечание

Количество

1

1024426

FITTING

FTG - elbow TMK#2501-12-12 (Order 218-486)

1шт.

1a

1024328

FITTING

FTG - elbow TMK#2501-L-12-12 (Order 218-486)

1шт.

2

1027049

HOSE ASSY.

HOSE .50 x 504-12JICFSW/-8NPTM

2шт.

3

1018131

FITTING

FTG - QK coup AQ#FD45-1003-08-10

2шт.

4

1018128

FITTING

FTG - QK coup AQ#FD45-1002-08-10

2шт.

1

1024426

FITTING

FTG - elbow TMK#2501-12-12 (Order 218-486)

3шт.

1a

1024328

FITTING

FTG - elbow TMK#2501-L-12-12 (Order 218-486), Diesel auger - 3 & 4 rank atd

1шт.

2

1027049

HOSE ASSY.

HOSE .50 x 504-12JICFSW/-8NPTM, Diesel Auger Fitting - rank 3&4 ATD

2шт.

3

1018131

FITTING

FTG - QK coup AQ#FD45-1003-08-10, Diesel Auger - rank 3&4 ATD

2шт.

4

1018128

FITTING

FTG - QK coup AQ#FD45-1002-08-10, Diesel Auger - rank 3&4 ATD

2шт.

5

1027050

HOSE ASSY.

HOSE .50 x 072-8NPTM/-12JICFSW, Diesel Auger Fitting - rank 3&4 ATD

1шт.

6

1027044

HOSE ASSY.

HOSE .50 x 158-8JICFSW/-8NPTM, Diesel Auger Fitting - rank 3&4 ATD

1шт.

7

1024240

VALVE

- selector: VS4BKLF6, Diesel Auger Fitting - rank 3&4 ATD

1шт.

8

1024328

FITTING

FTG - elbow TMK#2501-L-12-12, Diesel Auger - rank 3&4 ATD

1шт.

9

1024344

PLATE

- mount, Diesel Auger Fitting - rank 3&4 ATD

1шт.

10

1024345

LARGE PLATE

PLATE BOLTING TK .25'' PNTD, Diesel Auger Fitting - rank 3&4 ATD

1шт.

11

1013249

BOLT - hex: .38 x 3.00 NC GR5 ZP, Diesel Auger Fitting - rank 3&4 ATD

2шт.

12

425-106

NUT,3/8"-16, Cl 5

Diesel Auger Fitting - Rank 3 & 4 ATD 3/8"-16, G5

4шт.

13

1011725

BOLT

BOLT - hex: .38 x 2.00 NC GR5 ZP (Order 413-632), Diesel Auger Fitting - rank 3&4 ATD

3шт.

14

1027045

HOSE ASSY.

HOSE .50 x 216-8JICFSW/12JICFS (4 rank), Diesel Auger Fitting - rank 3&4 ATD

1шт.

14

1027047

HOSE

.50 x 182-8JICFSW/12JICFS (3 rank), Diesel Auger Fitting - rank 3&4 ATD

1шт.

15

1027046

HOSE ASSY.

HOSE .50 x 216-8JICM/-12JICFSW (4 rank), Diesel Auger Fitting - rank 3&4 ATD

1шт.

15

1027048

HOSE

.50 x 182-8JICM/-12JICFSW (3 rank), Diesel Auger Fitting - rank 3&4 ATD

1шт.

Выбрано товаров: 23
