Запчасти Case IH 3400 (E28) - FUEL TANK

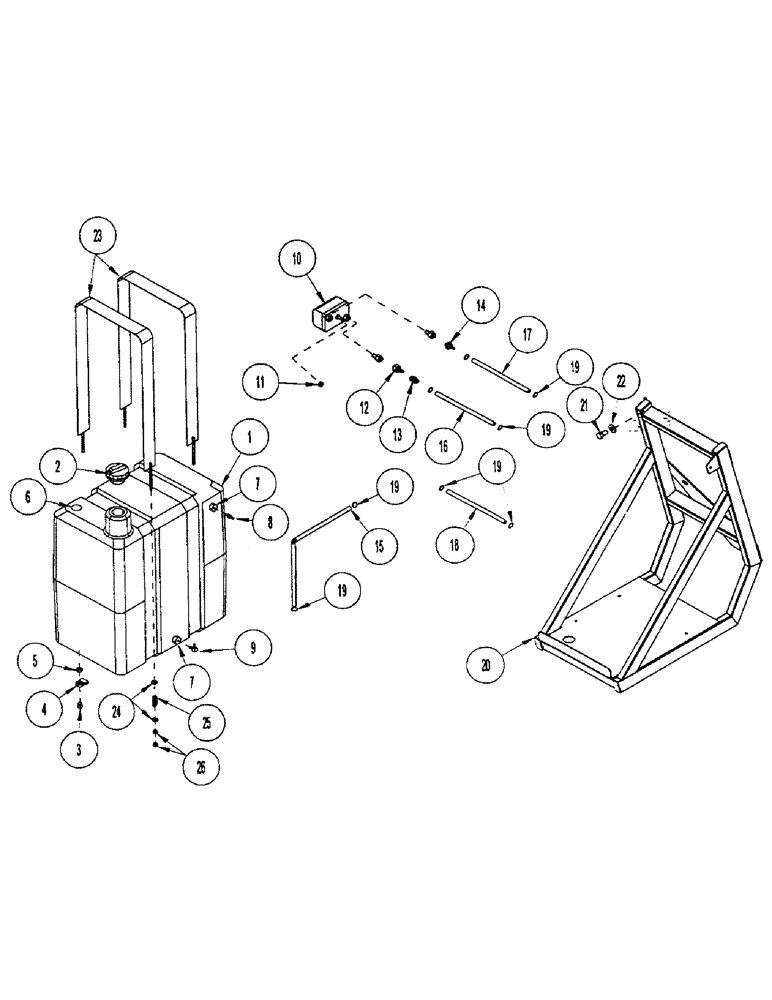

Схема запчастей Case IH 3400 - (E28) - FUEL TANK
7
2
7
16
19
19
4
24
13
19
8
19
23
22
25
9
10
15
12
21
11
1
5
14
18
19
3
6
20
26
17

Артикул

Название

Примечание

Количество

1

1030338

FUEL TANK

ASSY - fuel tank: 23.5 gallon

1шт.

1

1030036

FUEL TANK

FUEL - tank: 23.5 gallon

1шт.

2

1030349

FILLER CAP

CAP - stant: 1.500 (27588)

1шт.

3

1030345

PLUG

- cap: (27484)

1шт.

4

1030344

CLAMP

: (27362)

1шт.

5

1030350

GROMMET

: (27593)

1шт.

6

1030343

GAUGE

KELCH REMOTE GAUGE: (27592)

1шт.

7

1030348

BUSHING

: (27545)

2шт.

8

1030346

FITTING

BARB - hose straight: .19 (27538)

1шт.

9

1030347

FITTING

BARB - hose 90 degree elbow: .19 (27552)

1шт.

10

1013157

FILTER, FUEL

FILTER - fuel: AC# TP-888

1шт.

Ref: 10 1013157 Used on S/N CKB0011847 & Prior for S/N's after use spin on filter 311934A1 per ECN CD981225 It will require new bracket 306697A1 to attach filter to engine. A kit p/n 311932A1 is also released to adapt old fuel style filters to new. NAPO Tech. Note

1шт.

11

231-1445

NUT,5/16"-18, GB

NUT - nylock: .31 NC GR5 ZP

5шт.

12

1013158

FITTING

FTG - swivel AQ#4797-5-4B

1шт.

13

1013159

FITTING

FTG - adapter: AQ#200001-6-5B

1шт.

14

1013160

FITTING

FTG - adapter: AQ#4740-4B

1шт.

15

1016180

FUEL HOSE,0.25" ID x 50.00"

0.25" ID x 50.00"

1шт.

16

1016178

FUEL HOSE,0.25" ID x 24.00"

0.25" ID x 24.00"

1шт.

17

1016179

FUEL HOSE,0.25" ID x 33.00"

0.25" ID x 33.00"

1шт.

18

1016179

FUEL HOSE,0.25" ID x 33.00"

0.25" ID x 33.00"

1шт.

19

1012406

CLAMP

- hose: S.S.#04 .22-.63

8шт.

20

1030402

ANCHOR

WLDMT - fuel tank mount

1шт.

21

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

22

1011584

WASHER

- flat: SAE .50 ZP

4шт.

23

1030406

CLAMP

WLDMT - clamp band

2шт.

24

1011582

WASHER

- flat: SAE .31 ZP

4шт.

25

1030411

SPRING

4шт.

Выбрано товаров: 27
