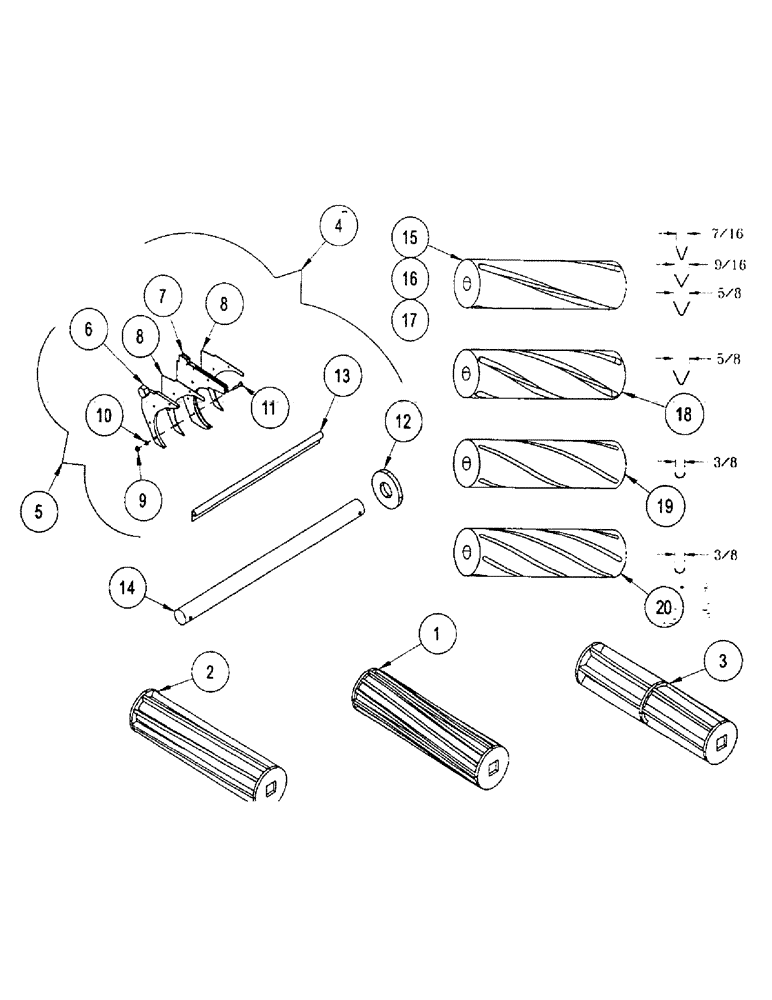

Запчасти Case IH 3400 (E23) - METERING ROLL ASSEMBLIES

1

1012608

ROLL

METERING ROLL, standard, 12-1/4" x 1/4" bars

1шт.

2

1013856

ROLL

METERING ROLL, high capacity, 8-1/4" x 1/2" bars

1шт.

3

1021264

ROLL

METERING ROLL, super high capacity, 6-1/4" x 3/4" bars

1шт.

4

1030624

FORK

KIT - seal (Incl. 5, 12, 13)

1шт.

5

1027945

PLATE

AND SEAL ASSEMBLY, fine seed, (Includes items 7-11)

1шт.

6

1032086

PLATE

FLOW CONTROL PLATE

1шт.

7

1027884

SEAL

rubber, outer

2шт.

8

1027887

RUBBER SEAL

rubber, inner

1шт.

9

1027932

LARGE PLATE

PLATE

1шт.

10

1032094

LOCK NUT

NUT, K-Lock,SS, #6

4шт.

11

1032479

SCREW

#6-32 x 1"

4шт.

12

1015623

DISC

thrust

1шт.

13

1027931

SEAL

extruded "P"

1шт.

14

1027957

SHAFT

DISCONTINUED ORDER 1032186

1шт.

Ref: 14 Per ECN K991321 - If customer has older shaft and wants to use with AFS they must order p/n 312910A1 shaft - if they order the new flutes it will have the correct shaft and they can use the existing square shaft on the machine. NAPO TECH NOTE

1шт.

15

1029252

METER

SPECIALTY CROP METER SHALLOW 3 GROOVE

1шт.

16

1029250

METER

SPECIALTY CROP METER MEDIUM 3 GROOVE

1шт.

17

1029251

METER

SPECIALTY CROP METER DEEP 3 GROOVE

1шт.

18

1030532

METER

SPECIALTY CROP METER DEEP 4 GROOVE

1шт.

19

1030533

METER

SPECIALTY CROP METER CANOLA 4 GROOVE

1шт.

20

1030534

METER

SPECIALTY CROP METER CANOLA 6 GROOVE

1шт.

The shear bolt, nut & washer are missing from the catalog.

1шт.
