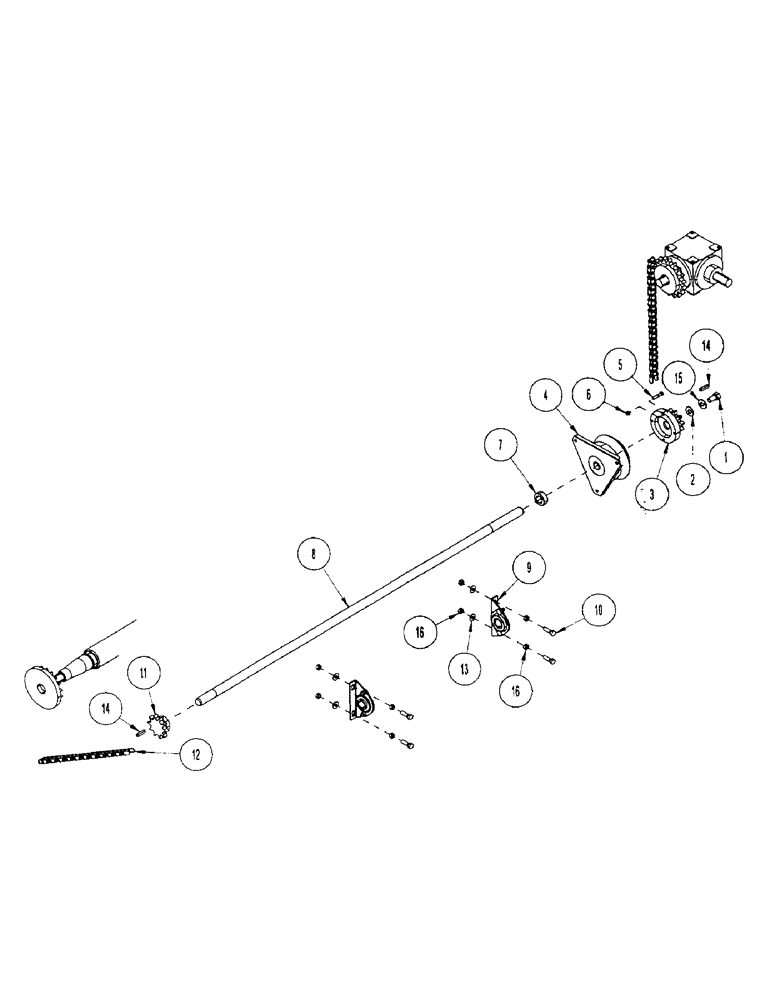

Запчасти Case IH 3400 (E20) - ASSY-CLUTCH

1

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

2

1014443

WASHER

- flat: .50 ZP

1шт.

3

1021091

ADAPTER

ASSY - adapter

1шт.

3a

1021095

BUSHING,1" ID x 1.125" OD x 1"

(Not Shown)

1шт.

4

1021090

CLUTCH DISC

CLUTCH - electric: Warner 5210-25

1шт.

4

1021588

CLUTCH

- electric: rework (Discontinued M100)

1шт.

5

1013940

BOLT

BOLT - hex: .25 x 1.25 NC GR5 ZP

4шт.

6

1011587

NUT,1/4"-20, G5

- hex: .25 NC GR2 ZP

4шт.

7

1013418

COLLAR

- set: 1.00

1шт.

8

1021234

SHAFT

- drive - (3503)

1шт.

8

1021478

SHAFT

- drive - (3503)

1шт.

8

1024668

TUBE,26 mm ID, 38.1 mm OD

- drive shaft (68-88) (2000)

1шт.

8

1024670

SHAFT

- drive clutch (2000)

1шт.

8

1024671

SHAFT

- drive wheel (2000)

1шт.

8

1021234

SHAFT

- drive - (3400, 2300)

1шт.

8

1021478

SHAFT

- drive - (3400, 2300)

1шт.

9

1018571

BEARING ASSY

ASSY - pillow block bearing

2шт.

10

1018574

CARRIAGE BOLT,5/16" x 0.75"

BOLT - CRG: .31 x .75 NC GR2 ZP

4шт.

11

1012976

DRIVE SPROCKET

SPROCKET - 60BS10 x 1.00 Martin

1шт.

12

1025048

CHAIN (AG)

CHAIN - roller: 27 links #60

1шт.

13

92-11031

LOCK WASHER,5/16"

WASHER LOCK: .31 ZP

4шт.

14

1012975

KEY

: .250 x .250 x 1.250

1шт.

15

1011581

LOCK WASHER

- lock: .50 ZP

1шт.

16

1011575

NUT,5/16"-18, G5

- hex: .31 NC GR2 ZP

8шт.
