Запчасти Case IH 3400 (E06) - FEATURE-AXLE - 3503, 3400, & 2300

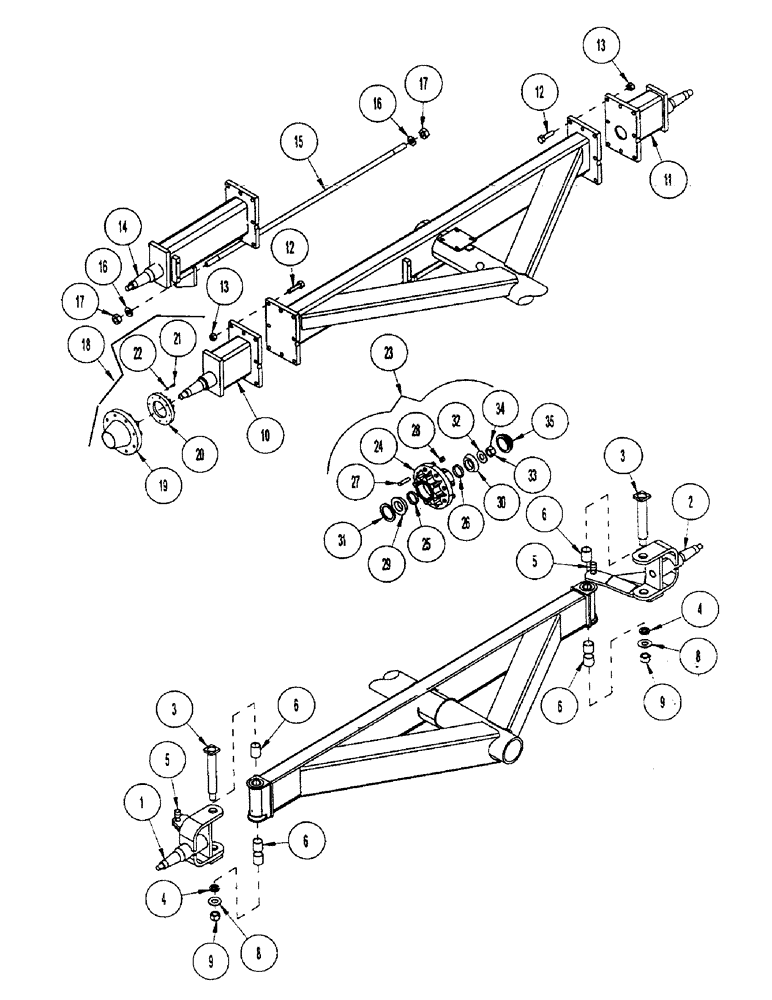

Схема запчастей Case IH 3400 - (E06) - FEATURE-AXLE - 3503, 3400, & 2300
32
9
17
8
11
1
6
24
10
28
23
3
13
26
13
8
2
6
18
19
3
6
12
34
35
15
29
5
17
25
31
16
21
4
16
22
6
30
4
12
27
33
9
5
14
20

Артикул

Название

Примечание

Количество

1

1020690

TRUNNION

WLDMT - front trunnion RH

1шт.

2

1020689

TRUNNION

WLDMT - front trunnion LH

1шт.

3

1020687

PIN

WLDMT - king pin (12.50" long)

2шт.

4

1020688

THRUST BEARING,1.7717" ID x 2.874" OD x 0.7874"

BEARING - thrust: Timken T177

2шт.

5

1020691

BUSHING

- AA-1232-2

2шт.

6

1023441

BRONZE BUSHING,44.53mm ID x 50.8mm OD x 63.5mm L

BUSHING

6шт.

8

1020675

LOCK WASHER

- star: INT 1.25 ZP

2шт.

9

1020676

LOCK NUT

NUT - jam: 1.25 NF GR2 ZP (Order 425-1520)

2шт.

10

1020776

SPINDLE

WLDMT - spindle: RH 120.00

1шт.

11

1020775

SPINDLE

WLDMT - spindle: LH 120.00

1шт.

12

1012059

BOLT

BOLT - hex: .75 x 3.00 NC GR5 ZP (Order 413-1248)

16шт.

13

232-14412

NUT,3/4"-10, GB

NUT - nylock: .75 NC GR6 ZP (Order 232-14412)

16шт.

14

1020773

SPINDLE

WLDMT - spindle: LH 150.00 (2300)

1шт.

14

1020774

SPINDLE

WLDMT - spindle: RH 150.00 (2300)

1шт.

14

1032100

SPINDLE

WLDMT - spindle LH 150 (3400, 3503)

1шт.

14

1032101

SPINDLE

WLDMT - spindle RH 150 (3400, 3503)

1шт.

15

1030426

TRUSS ROD

ROD - truss

2шт.

15

1030426

TRUSS ROD

ROD - truss

2шт.

16

1020685

WASHER

- flat: 1.00 ZP

4шт.

16

232-14416

NUT,1"-8, GC

NUT - nylock: 1.00 NC GR6 ZP

4шт.

17

232-14416

NUT,1"-8, GC

NUT - nylock: 1.00 NC GR6 ZP

4шт.

18

1021050

HUB

ASSY - hub & sprocket (Incl. 19-22)

1шт.

19

1020999

HUB

- tapping (Includes cups and studs)

1шт.

For complete hub assembly, see item 23.

1шт.

20

1020647

FLANGE

WLDMT - flange & sprocket

1шт.

21

1013940

BOLT

BOLT - hex: .25 x 1.25 NC GR5 ZP (Order 413-420)

8шт.

22

1013297

LOCK WASHER

- lock: .25 NP (Order 492-11025)

8шт.

23

1017759

HUB ASSY.

ASSY - hub: CT&D # HA 817 Incl. 24-31 & 35

1шт.

24

1017760

HUB ASSY.

ASSY - hub w/ cups & studs (Order 1017759)

1шт.

25

1012359

CUP

- outer (Order 627707C1)

1шт.

26

1017761

BEARING CUP,3.5" ID x 3.8125" OD

CUP - inner (Order 105497H)

1шт.

27

1017762

STUD

- lug: CT&D # WB 46

8шт.

28

1013470

NUT

- Bev: CT&D # WB 18

8шт.

29

1017763

ROLLER BEARING,2.25" ID x 0.864"

CONE - inner (Order 327195R91)

1шт.

30

1012354

ROLLER BEARING,1.625" ID x 2.09375" OD x 0.7656"

CONE - outer (Order 6633557R91)

1шт.

31

1017764

SEAL

- #TCM-30404TA (CT&D #SE42)

1шт.

32

1013475

WASHER

- flat: F&H #106247

1шт.

33

425-1316

NUT,1"-14, G5

NUT - hex: slot 1-14 NS GR2 ZP

1шт.

34

1013473

ANGLE BAR

PIN - cotter: .19 x 2.00 NP (Order 432-1232)

1шт.

35

1013474

CAP

- hub: CT&D # DC26 (Order 2700631-28)

1шт.

Выбрано товаров: 40
