Запчасти Case IH 2400 (F06) - SECONDARY MANIFOLD, TUBES AND STANDS, 3/4" PORT, 1" PORT, 1 1/2" PORT

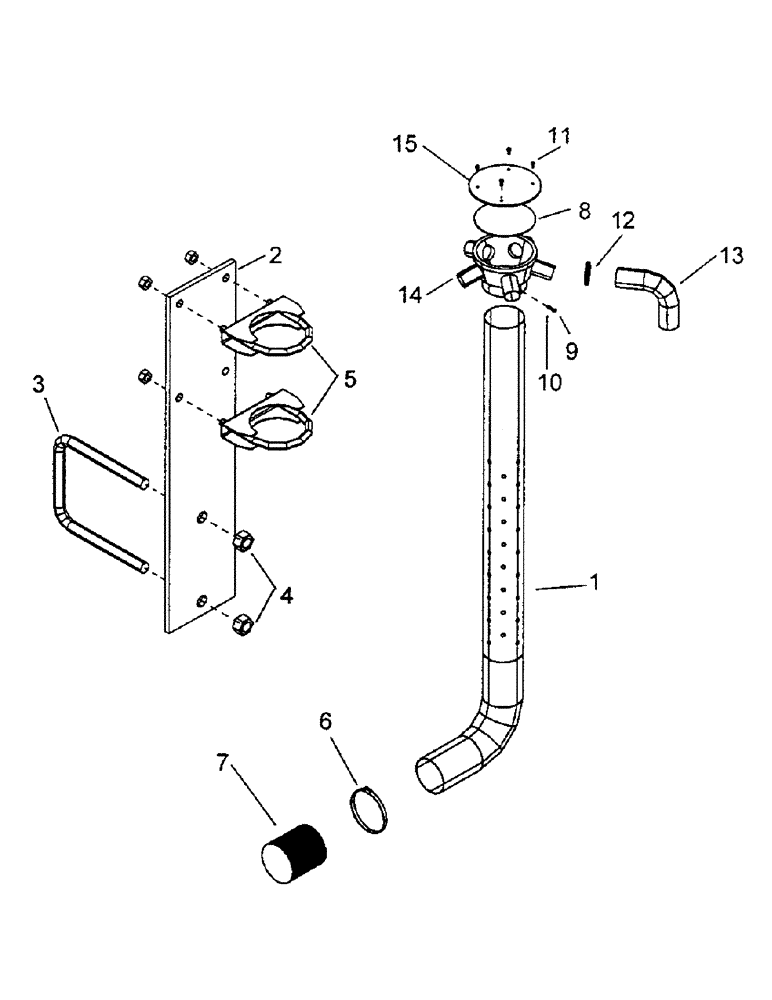

Схема запчастей Case IH 2400 - (F06) - SECONDARY MANIFOLD, TUBES AND STANDS, 3/4" PORT, 1" PORT, 1 1/2" PORT
14
11
12
1
9
10
5
7
6
4
8
2
3
15
13

Артикул

Название

Примечание

Количество

1

1026067

TUBE,63.5 mm Diameter, 590.55 mm Length

SECONDARY TUBE - dimpled

1шт.

2

1026249

LARGE PLATE

PLATE

1шт.

3

1023564

U-BOLT

1/2" x 4 17/32" x 5"

1шт.

3

1016523

BOLT

U-BOLT, 1/2" x 4 17/32" x 5"

1шт.

4

231-1448

NUT,1/2"-13, GB

nylock, 1/2"

2шт.

5

1013060

CLAMP

- muffler 2 1/2"

2шт.

6

1013236

CLAMP

- hose bundle

1шт.

7

1012984

HOSE,2.50" ID

- bulk: PVC-W 2.50" ID

1шт.

7

1032279

HOSE,2.50" ID

PVC-B 2.50" ID

1шт.

8

1022775

GASKET

CUSHION - manifold, 5 1/2"

1шт.

9

1013208

SET SCREW

SCREW SET, C-P 1/2" x 1"

2шт.

10

1013518

LOCK NUT

NUT, jam, 1/4"

2шт.

11

1018047

BOLT

BOLT, hex, 1/4" x 5/8"

1шт.

12

1013134

CLAMP

- hose, S.S. #28, 1.32-2"

1шт.

12

1012979

CLAMP

- hose, S.S. #20, .81-1.70"

1шт.

13

1029296

HOSE,25.70 mm ID BULK

- EVA-B 25.70 mm ID BULK

1шт.

13

1015887

HOSE,1.50" ID BULK

PVC 1.50" ID BULK

1шт.

1012985

HOSE,1.00" ID

- bulk: PVC-W 1.00" ID

1шт.

14

1018784

TUBE ASSY.

15 PORT MANIFOLD WITH COVER

1шт.

14

1018783

MANIFOLD

15 PORT WITHOUT COVER

1шт.

14

1026322

TUBE ASSY.

4 PORT MANIFOLD WITH COVER

1шт.

14

1026321

TUBE ASSY.

4 PORT WITHOUT COVER

1шт.

14

1026323

TUBE ASSY.

5 PORT MANIFOLD WITH COVER

1шт.

14

1023746

TUBE ASSY.

5 PORT WITHOUT COVER

1шт.

14

1017148

MANIFOLD

6 PORT MANIFOLD WITH COVER

1шт.

14

1017916

TUBE ASSY.

6 PORT WITHOUT COVER

1шт.

14

1015039

TUBE ASSY.

7 PORT MANIFOLD WITH COVER

1шт.

14

1015042

TUBE ASSY.

7 PORT WITHOUT COVER

1шт.

14

1014483

MANIFOLD VALVE

8 PORT MANIFOLD WITH COVER

1шт.

14

1014485

TUBE ASSY.

8 PORT WITHOUT COVER

1шт.

14

1013195

MANIFOLD

9 PORT MANIFOLD WITH COVER

1шт.

14

1013199

TUBE ASSY.

9 PORT WITHOUT COVER

1шт.

14

1012425

TUBE ASSY.

10 PORT MANIFOLD WITH COVER

1шт.

14

1012426

TUBE ASSY.

10 PORT WITHOUT COVER

1шт.

14

1013196

TUBE ASSY.

11 PORT MANIFOLD WITH COVER

1шт.

14

1013200

TUBE ASSY.

11 PORT WITHOUT COVER

1шт.

14

1013197

MANIFOLD

12 PORT MANIFOLD WITH COVER

1шт.

14

1013201

TUBE ASSY.

12 PORT WITHOUT COVER

1шт.

14

1013198

COVER

13 PORT MANIFOLD WITH COVER

1шт.

14

1013202

COVER

13 PORT WITHOUT COVER

1шт.

14

1014523

COVER

14 PORT MANIFOLD WITH COVER

1шт.

14

1015044

COVER

14 PORT WITHOUT COVER

1шт.

14

1018766

TUBE ASSY.

15 PORT MANIFOLD WITH COVER

1шт.

14

1018764

TUBE ASSY.

15 PORT WITHOUT COVER

1шт.

14

1025570

TUBE ASSY.

2 PORT MANIFOLD WITH COVER

1шт.

14

1026325

TUBE ASSY.

2 PORT WITHOUT COVER

1шт.

14

1024529

TUBE ASSY.

3 PORT MANIFOLD WITH COVER

1шт.

14

1024528

TUBE ASSY.

3 PORT WITHOUT COVER

1шт.

14

1017775

TUBE ASSY.

4 PORT MANIFOLD WITH COVER

1шт.

14

1017904

TUBE ASSY.

4 PORT WITHOUT COVER

1шт.

14

1017776

TUBE ASSY.

5 PORT MANIFOLD WITH COVER

1шт.

14

1017905

TUBE ASSY.

5 PORT WITHOUT COVER

1шт.

14

1017777

TUBE ASSY.

6 PORT MANIFOLD WITH COVER

1шт.

14

1017906

TUBE ASSY.

6 PORT WITHOUT COVER

1шт.

14

1018765

TUBE ASSY.

7 PORT MANIFOLD WITH COVER

1шт.

14

1018763

TUBE ASSY.

7 PORT WITHOUT COVER

1шт.

14

1018766

TUBE ASSY.

8 PORT MANIFOLD WITH COVER

1шт.

14

1018764

TUBE ASSY.

8 PORT WITHOUT COVER

1шт.

14

1026327

TUBE ASSY.

10 PORT MANIFOLD WITH COVER

1шт.

14

1026326

TUBE ASSY.

10 PORT WITHOUT COVER

1шт.

14

1026328

TUBE ASSY.

14 PORT MANIFOLD WITH COVER

1шт.

14

1024761

TUBE ASSY.

14 PORT WITHOUT COVER

1шт.

15

1013193

COVER

(1" - 4, 8, 12 & 15 PORT; 1 1/2" - 4 & 8 PORT)

1шт.

15

1014419

COVER

(1" - 5, 6 & 14 PORT; 1 1/2" - 6 PORT)

1шт.

15

1013192

COVER

(1" - 7 & 11 PORT); 1 1/2" - 2, 5, 7 & 14 PORT)

1шт.

15

1013191

COVER

(1" - 9 PORT)

1шт.

15

1013197

MANIFOLD

COVER (1" - 13 PORT)

1шт.

15

1013035

COVER (1" - 10 PORT) (1 1/2" - 5 & 10 PORT)

1шт.

Выбрано товаров: 68
