Запчасти Case IH 2400 (E46) - ELECTRICAL - DIESEL - DISCONTINUED

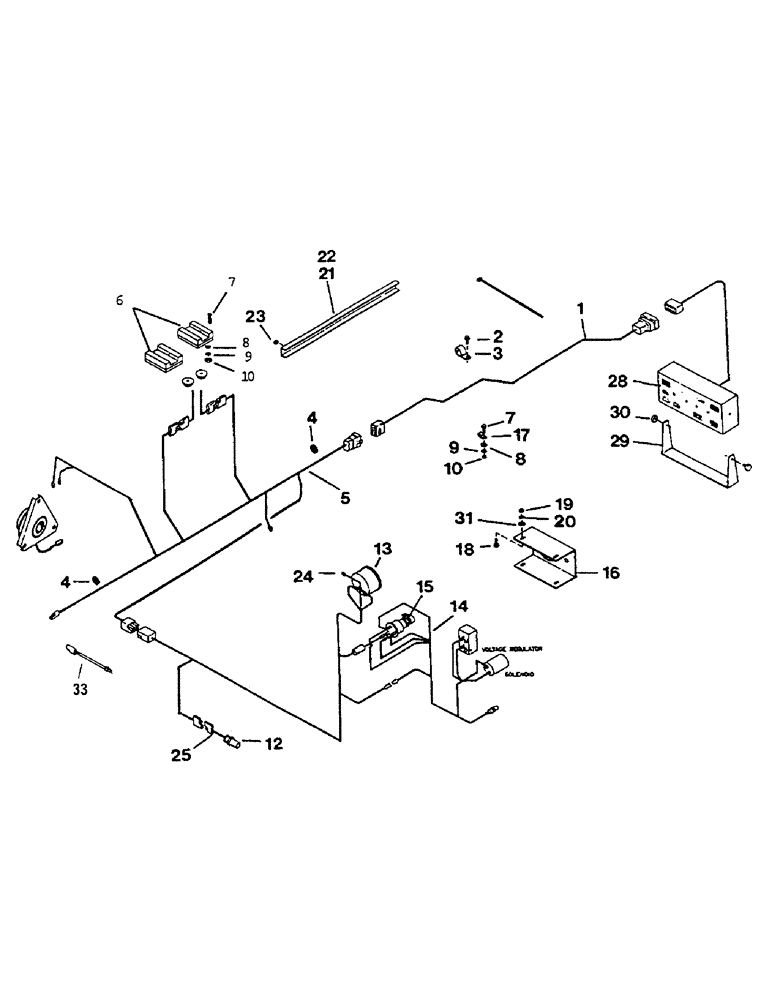

Схема запчастей Case IH 2400 - (E46) - ELECTRICAL - DIESEL - DISCONTINUED
33
18
15
31
7
3
14
24
4
10
1
20
19
21
6
13
25
9
5
9
7
10
2
23
4
22
8
29
17
28
8
12
30
16

Артикул

Название

Примечание

Количество

1

1024929

HARNESS

WIRING HARNESS, tractor

1шт.

2

1016352

CLAMP

harness

6шт.

3

1011974

RIVET

POP RIVET

6шт.

4

1014125

LOCK WASHER

LOCK WASHER, 5/16"

4шт.

5

1027456

HARNESS

WIRING HARNESS, 2400 model

1шт.

6

1027706

SENSOR

BIN LEVEL SENSOR ASSY.

2шт.

7

1014728

SCREW

8шт.

8

1016237

WASHER

FLAT WASHER, #10

8шт.

9

1013389

THRUST WASHER

LOCK WASHER, #10

8шт.

10

1011588

NUT,#10-24

hex, #10

8шт.

11

1021293

HARNESS

WIRING HARNESS, tach and engine

1шт.

12

1016300

SENSOR

MAGNETIC PICKUP

1шт.

13

1016068

METER

TACHOMETER

1шт.

14

1016281

HARNESS

WIRING HARNESS, ignition, oil pressure & filternator

1шт.

15

1016194

IGNITION SWITCH

START AND IGNITION SWITCH

1шт.

16

1027379

PANEL

INSTRUMENT PANEL

1шт.

17

1016234

CLAMP

harness

3шт.

18

1011598

BOLT

hex, 5/16" x 1"

4шт.

19

1011575

NUT,5/16"-18, G5

hex, 5/16"

4шт.

20

1016235

GROMMET

2шт.

21

1027352

CHANNEL

wire protector, 96" long

1шт.

22

1016247

CHANNEL

wire protector, 32" long

1шт.

23

280136

NUT,3/8"-16, G8

LOCKNUT, hex, 5/16"

4шт.

24

1016466

ELECTRICAL WIRE

WIRE, tachometer ground

1шт.

25

1016492

LOCK NUT

JAM NUT, 3/4"NF

1шт.

28

1024891

CONTROL

MONITOR BOX

1шт.

Ref# 28 If the customer has a 1024891 M100 Monitor Box they will need a 1025705 remote switch if the customer has a 290190A1 M200 Monitor Box they will need a 233788A1 Remote Switch. CH 4/33/98

1шт.

29

1024940

BRACKET

MONITOR BOX BRACKET

1шт.

30

1024941

KNOB

2шт.

31

1011582

WASHER

FLAT WASHER, 5/16"

4шт.

32

1016388

ELEC. TERMINAL PIN

CONNECTOR -, Serial Range: single-dual

1шт.

33

1024930

SENDER UNIT

SENDING UNIT TR-100-7

1шт.

NOTE: TO CONVERT M100 MONITOR TO M200 MONITOR ORDER P/N 306974A1. NAPO TECH NOTE.

1шт.

Выбрано товаров: 33
