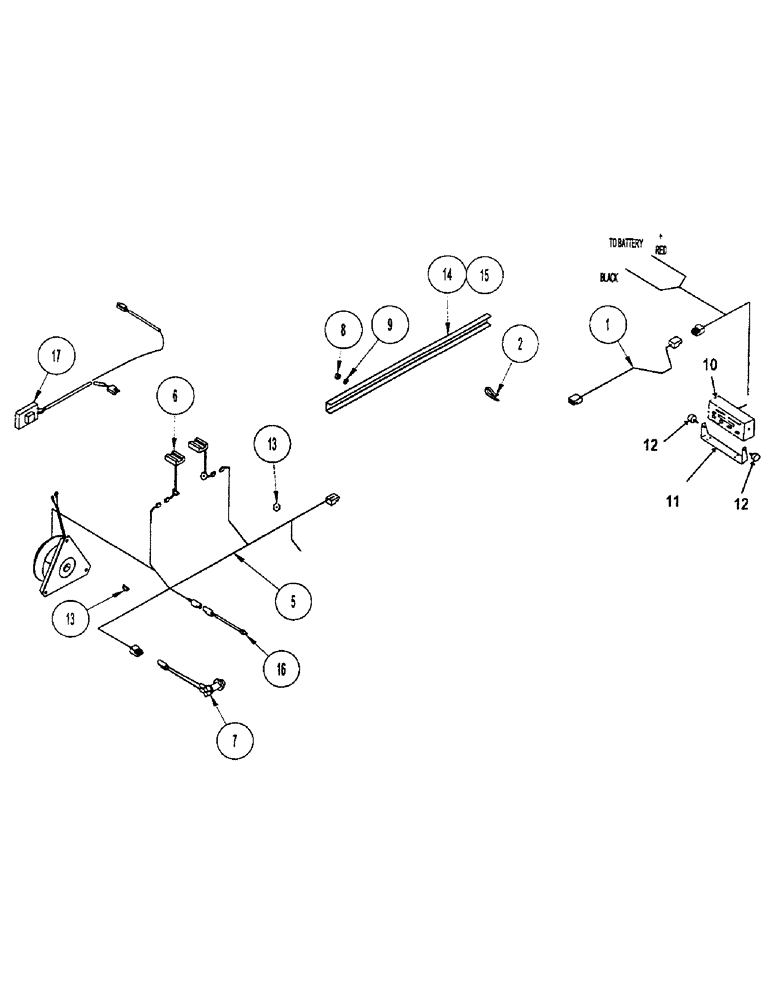

Запчасти Case IH 2400 (E45) - ELECTRICAL - HYDRAULIC - DISCONTINUED

1

1024929

HARNESS

WIRING HARNESS

1шт.

2

1016352

CLAMP

harness

15шт.

3

1011974

RIVET

POP RIVET

15шт.

5

1027456

HARNESS

WIRING HARNESS

1шт.

6

1027706

SENSOR

BIN LEVEL SENSOR ASSY.

2шт.

7

1016300

SENSOR

MAGNETIC PICKUP

1шт.

8

231-1445

NUT,5/16"-18, GB

NUT, nylock, .31 NC GR6 ZP

3шт.

9

1011583

WASHER

- flat: .31 ZP

3шт.

10

1024891

CONTROL

MONITOR BOX

1шт.

Ref# 10 If the customer has a 1024891 M100 Monitor Box they will need a 1025705 remote switch if the customer has a 290190A1 M200 Monitor Box they will need a 233788A1 Remote Switch. CH 4/33/98

1шт.

11

1024940

BRACKET

MONITOR BOX BRACKET

1шт.

12

1024941

KNOB

2шт.

13

280136

NUT,3/8"-16, G8

4шт.

13

1016235

GROMMET

2шт.

14

1027352

CHANNEL

PROTECTOR, 69 1/2"

1шт.

15

1016247

CHANNEL

PROTECTOR, 30"

1шт.

15

1030371

CHANNEL

harness protector

1шт.

16

1024930

SENDER UNIT

SENDING UNIT TR-100-7

1шт.

17

1025705

SENSOR

CLUTCH - remote switch TPN 1030

1шт.

Ref # 17 1025705, should read 1030497. bj 7/9/99

1шт.

if looking for the switch that looks like ref 17 p/n is 1030497 per branko in tech cs 7/12/99

1шт.

NOTE: TO CONVERT M100 MONITOR TO M200 MONITOR ORDER P/N 306974A1. NAPO TECH NOTE.

1шт.
