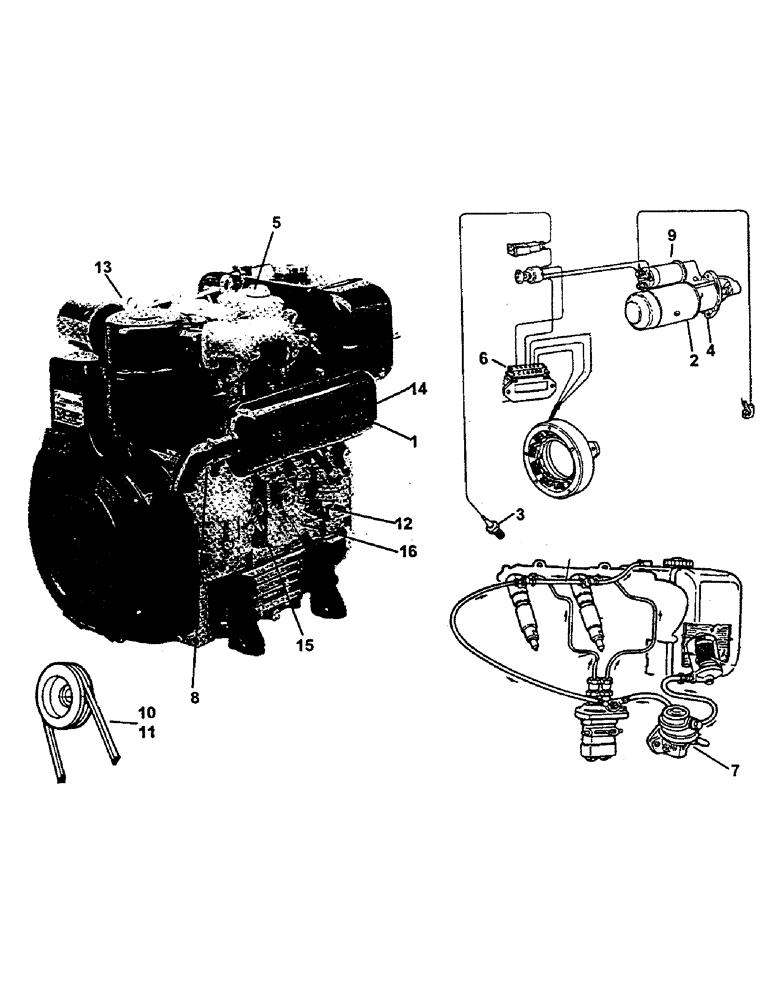

Запчасти Case IH 2400 (E44) - LOMBARDINI ENGINE SERVICE PARTS

1

1020445

MUFFLER

MUFFLER

1шт.

REF 1 MUFFLER, GASKET IS P/N 306421a1 PER ALLAN J.

1шт.

2

1016373

STARTING MOTOR

STARTER - Lomb

1шт.

2

1016373R

REMAN-STARTER

2400 (-11/01)

1шт.

2

1016373C

CORE-STARTER

Return number

1шт.

3

1021277

SENSOR

SENSOR - oil pressure

1шт.

4

1021278

STRUT

STARTER - drive

1шт.

5

1021702

CAP

CAP - oil

1шт.

6

1022588

VALVE

REGULATOR: Lomb

1шт.

7

1022589

PUMP

FUEL PUMP: Lomb

1шт.

8

1023247

ELBOW

ELBOW - muffler

1шт.

9

1021155

SWITCH

SOLENOID SWITCH (Bosch)

1шт.

10

1025006

BELT

BELT - Lomb

1шт.

REF; 10 BELT 1025006 IS A 405 MM OR 15.99 IN. BELT USED ON 9LD 3 CYL LOMBARDINI ENGINE PER CONCORD ENGINEERING MV

1шт.

11

1025003

BELT

BELT - Lomb

1шт.

REF 11 BEKT 1025003 IS A 401 MM OR 15.78 IN. BELT USED ON 9LD 3 CYL LOMBARDINI ENGINE

1шт.

12

1025766

KNOB

KNOB - lock

1шт.

13

1026699

TUBE

FUEL RETURN - Lomb

1шт.

14

1026893

SHIELD

SHIELD - muffler

1шт.

15

1027542

DIPSTICK

DIP STICK - Lomb

1шт.

16

1030773

LEVER

THROTTLE LEVER - Lomb

1шт.

1

1027571

GASKET

GASKET - Lomb. #560-4601-041, eng D sump parts- not shown

1шт.

2

1033388

SPACER

SPACER - oil sump extension, Lomb. eng. D sump parts - not shown

1шт.

3

1033389

DIPSTICK

DIPSTICK - modified, Lomb. eng. D sump parts - not shown

1шт.

4

1033391

PIN, ROLL

PIN - index roll, Lomd eng. sump parts - not shown

1шт.

5

290417AI

SCREW ALLEN LOMB #9730-040, eng D sump parts - not shown

1шт.

All air systems use engine oil filter p/n 1015367 , engine fuel filter is p/n 1013157. CH 4/7/98

1шт.

ALL LOMBARDINI ENGINE PARTS NOT SHOWN, DLR MUST CONTACT LOMBARDINI DIRECT AT 770-623-3554. ENG S/N MUST BE PROVIDED. PER MARCIA VALLEY. JBEDFORD 5/28/99.

1шт.
