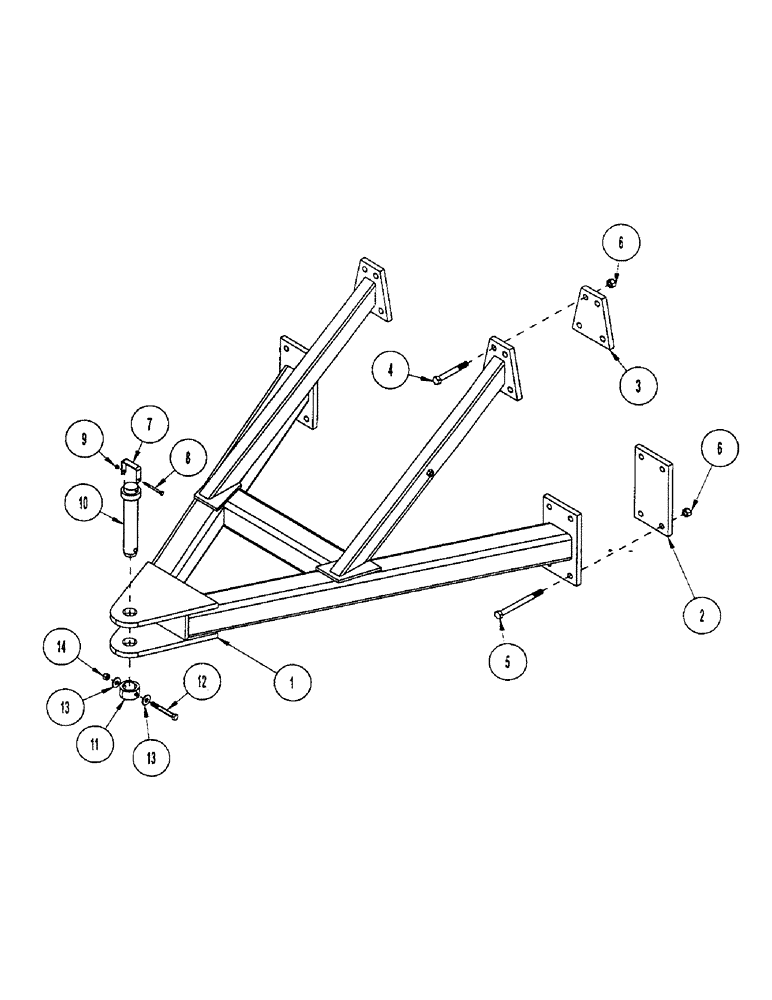

Запчасти Case IH 2400 (E37) - DRAWBAR - REAR

1

1027320

DRAWBAR

WLDMT - rear drawbar

1шт.

2

1027305

LARGE PLATE

PLATE - bolting

2шт.

3

1027319

LARGE PLATE

PLATE - bolting

2шт.

4

1013538

BOLT

- hex: .75 x 8.50 NC GR8 ZP

8шт.

5

1014531

BOLT

- hex: .75 x 11.00 NC GR5 ZP

8шт.

6

232-14412

NUT,3/4"-10, GB

NUT - nylock: .75 NC GR6 ZP

16шт.

7

1027995

PIN

HANDLE PIN .125 TK X .75W YZD

1шт.

8

1013894

BOLT,Hex, 1/4" - 20 x 3", Gr 5

BOLT - hex: .25 x 3.00, NC

1шт.

9

1013427

LOCK NUT,1/4"-20, GA

NUT - centerlock: .25

1шт.

10

1027969

PIN

HITCH PIN

1шт.

11

1027967

COLLAR

2.5 OD 1.81 ID YZD

1шт.

12

1011613

BOLT

BOLT - hex: .50 x 4.00, NC GR5

1шт.

13

1011584

WASHER

- flat: .50 SAE

2шт.

14

231-1448

NUT,1/2"-13, GB

- nylock: .50

1шт.
