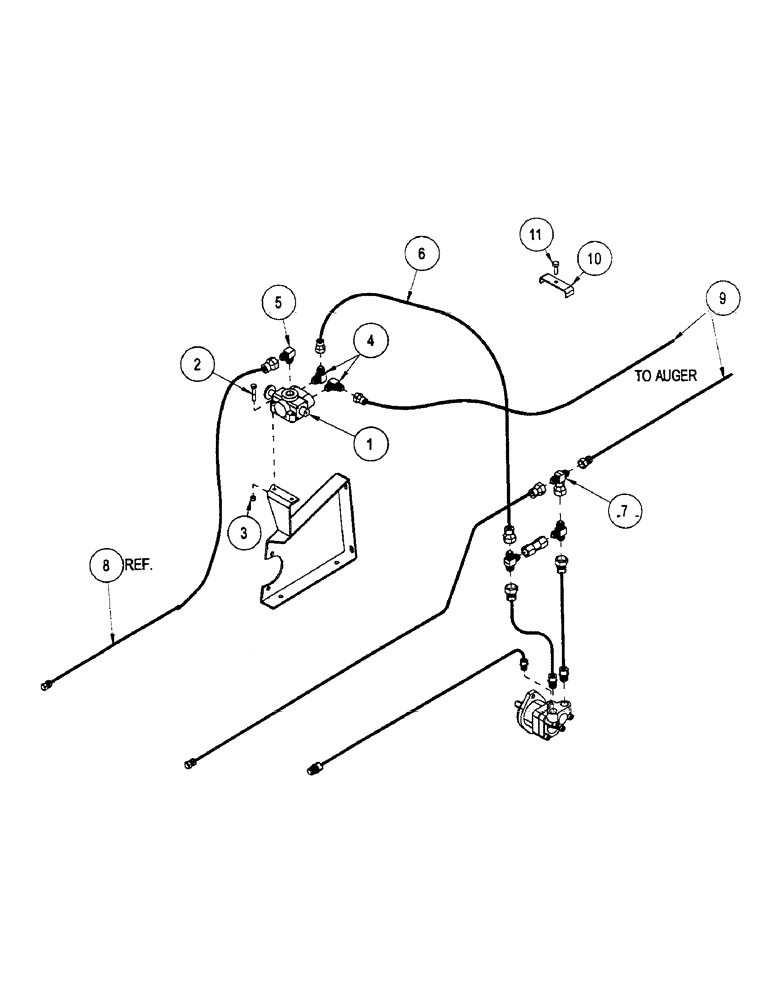

Запчасти Case IH 2400 (E36) - HYDRAULIC AUGER FITTINGS

1

1024240

VALVE

- selector: VS4BKLF6

1шт.

2

1011725

BOLT

BOLT - hex: .38 x 2.00 NC GR5 ZP

2шт.

3

425-106

NUT,3/8"-16, Cl 5

8шт.

4

1024426

FITTING

FTG - elbow TMK#2501-12-12

2шт.

5

1024328

FITTING

FTG - elbow TMK#2501-L-12-12

1шт.

6

1027428

HOSE ASSY.

HOSE .50 x 408-12JICFSW both

2шт.

7

1027381

TEE

FTG - tee TMK#6600-12-12

1шт.

8

1027380

HOSE ASSY.

HOSE - .75 x 120-12JICFSW/-8NPTM

1шт.

9

1027380

HOSE ASSY.

750X120IN-12JICFSW--8NPTM

2шт.

10

1024284

CLAMP

- hose small

9шт.

11

1011600

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT - hex: .38 x 1.00 NC GR5 ZP

9шт.
