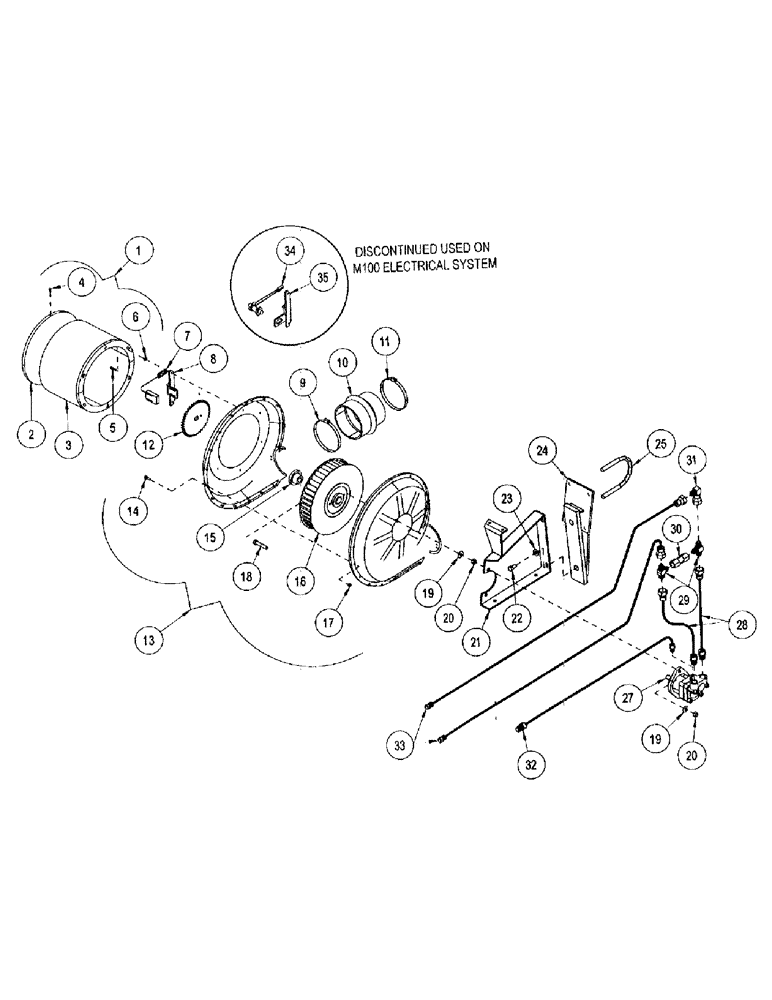

Запчасти Case IH 2400 (E34) - HYDRAULIC BLOWER AND MOUNTING

1

1020801

SCREEN

KIT

1шт.

2

1020540

SCREEN

- end

1шт.

3

1020543

SCREEN

WLDMT - screen

1шт.

4

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

SCREW - zipin tap: #12 x 1/2"

4шт.

5

1011595

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT - hex: .25 x .75 NC GR5 ZP

4шт.

5

1013423

BOLT

BOLT - hex: .25 x 1.00 NC GR5 ZP

2шт.

6

1020416

WASHER

- flat: .25 ZP

6шт.

7

290355A1

SENSOR

SMART SENSOR FAN (See M200 elec. sys. for hardware)

1шт.

8

290295A1

BRACKET, SUPPORTING

BRACKET /A FAN SPEED (See M200 elec. sys. for hardware)

1шт.

9

1016416

CLAMP

- hose: S.S.#96 5-56-6.50

1шт.

10

1014892

HOSE,5.00" ID, 6.00" ID x 6.00"

- Hump reducer 5.00" ID, 6.00" ID x 6.00"

1шт.

11

1026256

CLAMP

- hose: S.S.#88 5.06-6.00

1шт.

12

1020761

SPROCKET ASSY.

SPROCKET - tach machining

1шт.

13

1020418

BLOWER

- hydraulic: crary#20164 (14-17)

1шт.

Ref: 13 1020418 Blower Assy - includes item # 16 Rotor Assy 2 housings - inlet and drive side - 405-7416 bolt qty 16 and 1015656 Nut-Flange qty 16.

1шт.

14

1015646

BOLT

- WZLOK: .25 x 1.00

16шт.

15

1020459

BUSHING

HUB - taper lock

1шт.

Ref #15, 1020459, if looking for the bolt, part number is 1033363. bj 7/8/99.

1шт.

16

1024906

ROTOR

ASSEMBLY

1шт.

ref: 16 1024906 s/b p/n 1024908 per Concord Engineering NAPO TECH

1шт.

17

1015656

NUT

- flange: .25

16шт.

18

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

19

1011581

LOCK WASHER

- lock: .50 ZP

2шт.

20

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

21

1020527

MOUNTING PARTS

WLDMT - hyd mount

1шт.

22

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

23

1011581

LOCK WASHER

- lock: .50 ZP

2шт.

24

1027324

MOUNTING PARTS

WLDMT - fan mount

1шт.

25

1030623

U-BOLT

BOLT-U .50X6.06X5.00 ID

2шт.

27

1013988

MOTOR, HYDRAULIC

MOTOR - hyd. Volvo F11-10-HUCHK

1шт.

1013988R

REMAN-HYD MOTOR

2400

1шт.

1013988C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

312672A1

SEAL KIT

Seal Kit For 1013988

1шт.

28

1024327

HOSE ASSY.

HOSE .75 x 019-12JICFSW/-12 OR

2шт.

29

1024325

FITTING

FTG - tee TMK#2601-12-12

2шт.

30

1024320

VALVE, CHECK

FTG-CK VAL AFP#DC-750-5 P.S.I

1шт.

31

1027383

ELBOW

FTG - elbow: TMK#6500-12

2шт.

32

1024871

HOSE

.38 x 120-8NPTM/-6 OR M

1шт.

33

1027380

HOSE ASSY.

HOSE .75 x 120-12JICFSW/-8NPTM

2шт.

34

1016300

SENSOR

PICKUP - magnetic (Discontinued used on M100 elec)

1шт.

35

1020759

MOUNTING PARTS

WLDMT - mount - tach sensor (Discontinued used on M100)

1шт.

To convert from M100 to M200 order the following:

1шт.

306971A1 M100 to M200 for 2400 Hydraulics.

1шт.

306974A1 M100 to M200 for 2400 Diesel. bj 8/9/99

1шт.

P/n for M100 front toe kit is p/n PL4114 and p/n for M100 rear is p/n PL4112. MJP 5/28/99 ( per Marcia's book.)

1шт.
