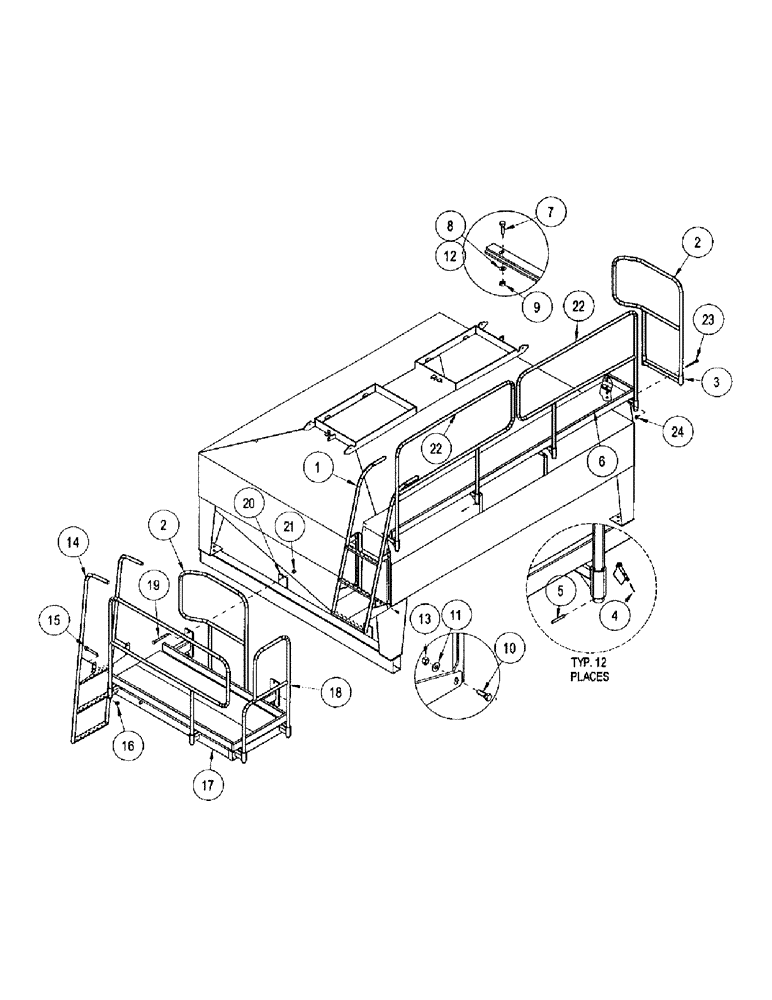

Запчасти Case IH 2400 (E32) - LADDER, HANDRAILS, AND CATWALK

1

1032202

RAIL

WLDMT - ladder RH

1шт.

2

1032140

RAIL

WLDMT - front handrail

2шт.

3

1032139

SUPPORT

WLDMT - rail support

1шт.

4

1013225

PIN

- wirelock: .31 x 2.75 NP

12шт.

5

1011726

ROLL PIN

PIN - roll: .25 x 2.00 NP

12шт.

6

1032194

WALKWAY

WLDMT - catwalk

1шт.

7

1011600

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT - hex: .38 x 1.00 NC GR5 ZP

8шт.

8

1011586

LOCK WASHER

- lock: .38 ZP

8шт.

9

425-106

NUT,3/8"-16, Cl 5

8шт.

10

1011607

BOLT

BOLT - hex: .50 x 1.50 NC GR5 ZP

4шт.

11

1011584

WASHER

- flat: SAE .50 ZP

8шт.

12

45-11041

WASHER

- flat: SAE .38 ZP

8шт.

13

231-1448

NUT,1/2"-13, GB

- nylock: .50 NC GR6 ZP

4шт.

14

1027473

LADDER

WLDMT - ladder LH

1шт.

15

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

- hex: .50 x 3.25 NC GR5 ZP

4шт.

16

231-1448

NUT,1/2"-13, GB

- nylock: .50 NC GR6 ZP

4шт.

17

1032220

PLATFORM

WLDMT - platform

1шт.

18

1032250

RAIL

WLDMT - side handrail

1шт.

19

1016718

BOLT

BOLT - hex: .75 x 6.50 NC GR5 ZP

4шт.

20

232-14412

NUT,3/4"-10, GB

NUT - nylock: .75 NC GR6 ZP

4шт.

21

1027517

LARGE PLATE

PLATE - bolting

2шт.

22

1032196

RAIL ASSY.

WLDMT - side handrail

3шт.

23

1013239

BOLT

BOLT - hex: .38 x 3.00 NC GR5 ZP

2шт.

24

232-1446

NUT,3/8"-16, GC

NUT - nylock: .38 NC GR6 ZP

2шт.

Ref: 12 45-11041 is incorrect it should be 495-11041.

1шт.

Tech. Notes

1шт.
