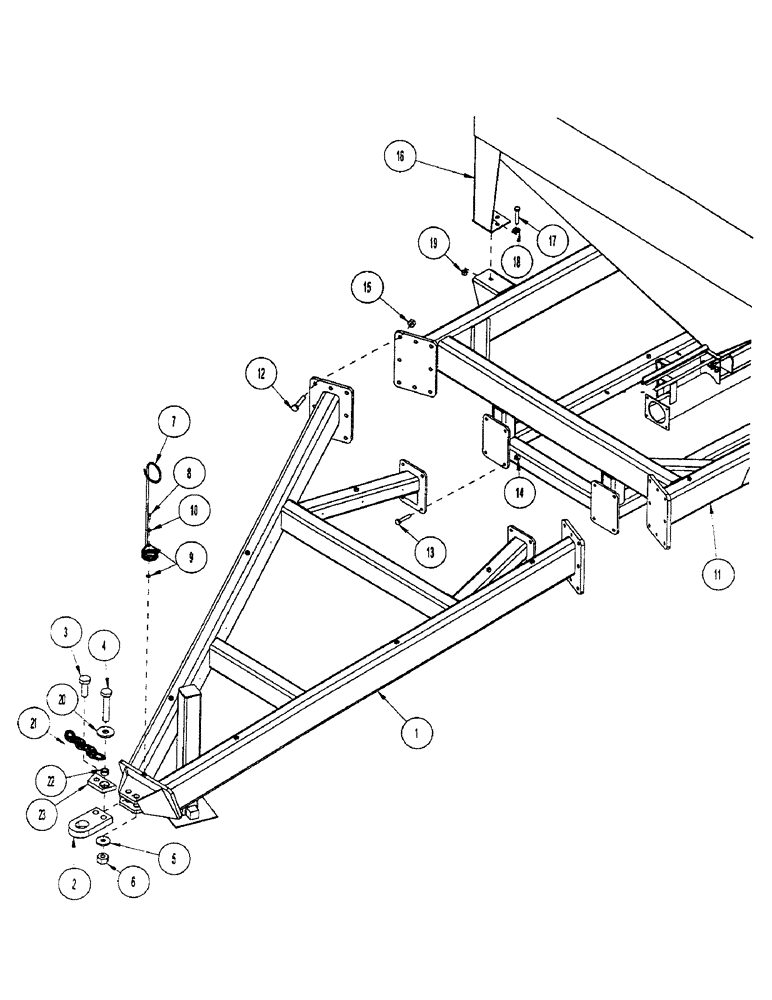

Запчасти Case IH 2400 (E28) - FRAME AND TANK

1

1027215

FRAME

WLDMT - front frame

1шт.

2

1026730

HITCH

HITCH

1шт.

3

1026731

BOLT

- hex: 1.25 x 4.50 NC GR8 ZP

1шт.

4

1032406

BOLT,Hex, 1 1/4" - 7 x 7", Gr 8

1шт.

5

1026732

LOCK WASHER

- lock: 1.25 ZP

2шт.

6

86625082

NUT,1 1/4"-12, G5

- hex: 1.25 NC GR2 ZP

2шт.

7

1026727

HOLDER

HOSE - holder: 5" 23-200229-1

1шт.

8

1011600

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT - hex: .38 x 1.00 NC GR5 ZP

21шт.

9

1011828

WASHER

- flat: .38 ZP

2шт.

10

1011586

LOCK WASHER

- lock: .38 ZP

1шт.

11

1027420

FRAME

WLDMT - rear frame

1шт.

12

1016598

BOLT

- hex: .75 x 2.50 NC GR5 ZP

16шт.

13

1011623

BOLT

- hex: .63 x 2.00 NC GR5 ZP

8шт.

14

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

8шт.

15

232-14412

NUT,3/4"-10, GB

NUT - nylock: .75 NC GR5 ZP

16шт.

16

1027333

AIR TANK

TANK ASSEMBLY

1шт.

17

1014349

BOLT

BOLT - hex: .63 x 1.50

4шт.

18

1013024

WASHER

- flat: .63 ZP

4шт.

19

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

4шт.

21

1032404

WASHER

P.WASHER 1.281ID3.75 .375 YZD

1шт.

22

GR-457A

CHAIN (AG)

CHAIN - safety 60K

1шт.

23

1032403

SPACER

TUBE-SPACER YZD

1шт.

24

1032405

LARGE PLATE

PLATE SPACER 1 TK YZD

1шт.

JACK IS PART # 1022893 PER DWG IT IS SET UP IN SYSTEM KL 4/16/98 PER DWG

1шт.
