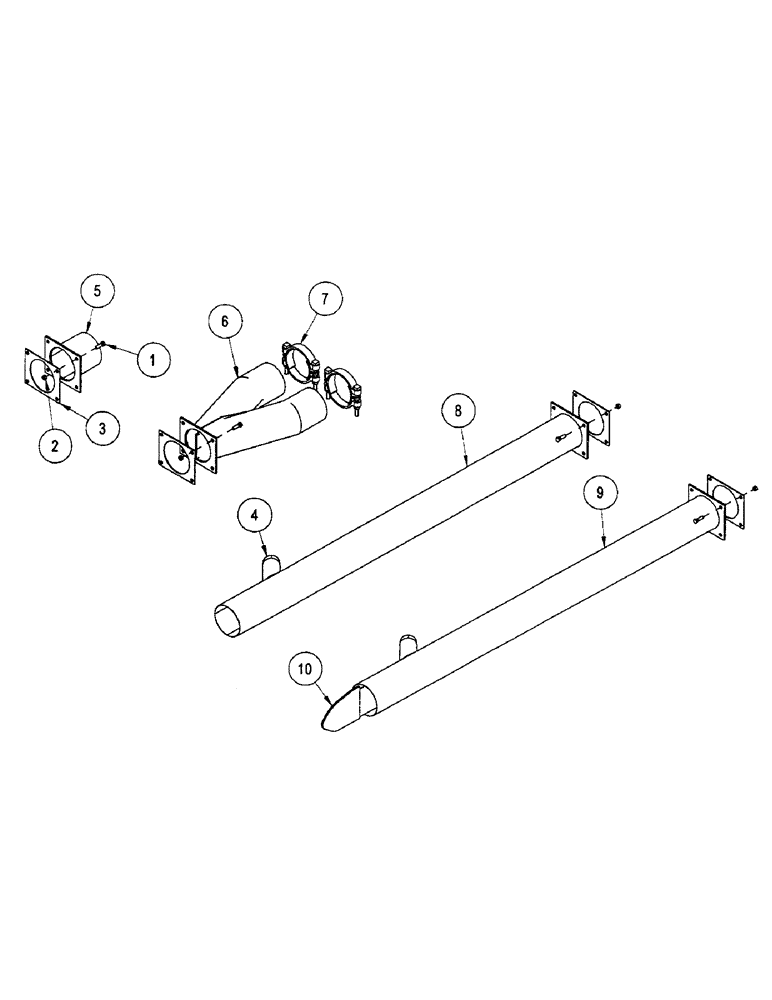

Запчасти Case IH 2400 (E27) - AIRSTREAM OPTIONS

1

1011601

BOLT

BOLT - hex: .38 x 1.25 NC GR5 ZP

8шт.

2

425-106

NUT,3/8"-16, Cl 5

8шт.

3

1023159

GASKET

.13 x 5.75 x 7 - 5" ID

2шт.

4

1018915

PIPE

CAP - pipe 2.0 04048-020

1шт.

5

1023133

FLANGE

WLDMT - flange & tube (Single)

1шт.

6

1026688

TUBE,18.563" Length

WLDMT - Y tube (Dual)

1шт.

7

1026541

CLAMP,127mm - 146.05mm

: #600, 5.00-5.75 (Dual)

2шт.

8

1030416

TUBE

WLDMT - air tube (Single)

1шт.

9

1027455

TUBE,75.5" Length

WLDMT - split tube (Dual)

1шт.

10

1026740

DIVIDER

DIVERTER - fin (Dual)

1шт.

NOTE: FRT ADAPTOR PLATE CAN BE REPLACED WITH TUBE # 1023480 OUT OF THE MAIN AIR TUBE STRUCTURE.

1шт.
