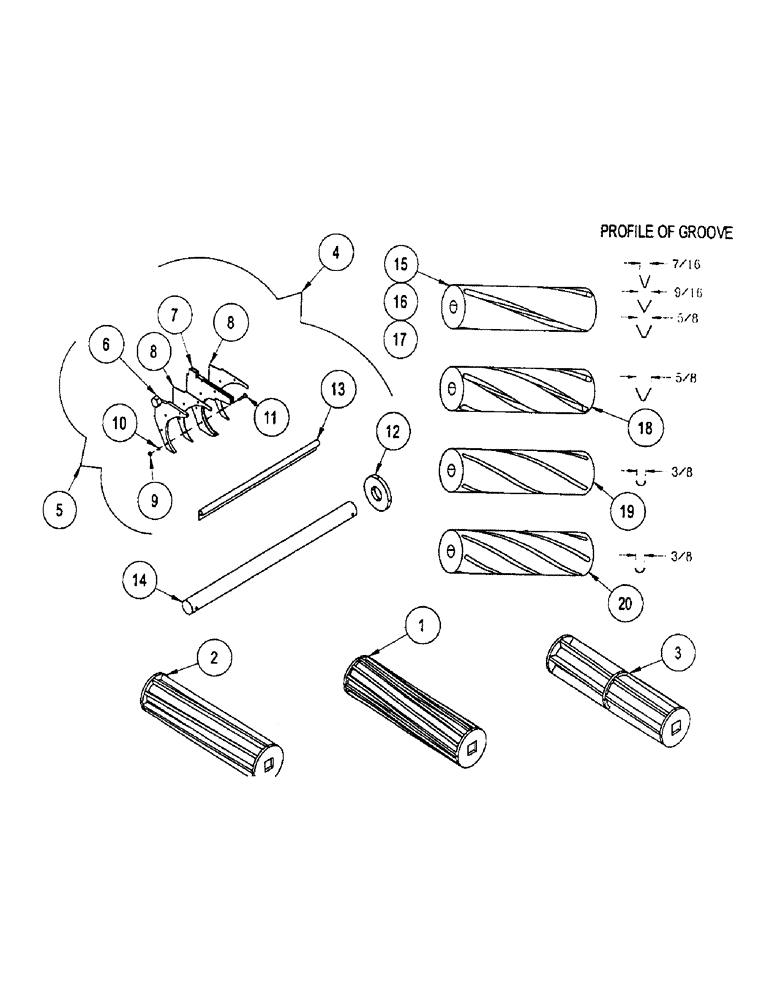

Запчасти Case IH 2400 (E26) - METERING ROLL ASSEMBLIES

1

1012608

ROLL

METERING ROLL, standard, 12-1/4" x 1/4" bars

1шт.

2

1013856

ROLL

METERING ROLL, high capacity, 8-1/4" x 1/2" bars

1шт.

3

1021264

ROLL

METERING ROLL, super high capacity, 6-1/4" x 3/4" bars

1шт.

4

1030624

FORK

KIT - seal (Incl. 5, 12, 13)

1шт.

5

1027945

PLATE

AND SEAL ASSEMBLY, fine seed, (Includes items 7-11)

1шт.

6

1032086

PLATE

FLOW CONTROL PLATE

2шт.

7

1027884

SEAL

rubber, outer

1шт.

8

1027884

SEAL

rubber, inner

1шт.

9

1027932

LARGE PLATE

PLATE

4шт.

10

1032094

LOCK NUT

NUT, K-lock, SS, #6

4шт.

11

1032479

SCREW

#6-32 x 1"

1шт.

12

1015623

DISC

thrust

1шт.

13

1027931

SEAL

extruded "P"

1шт.

14

1027957

SHAFT

DISCONTINUED ORDER 1032186

1шт.

15

1029252

METER

SPECIALTY CROP METER SHALLOW 3 GROOVE

1шт.

16

1029250

METER

SPECIALTY CROP METER MEDIUM 3 GROOVE

1шт.

17

1029251

METER

SPECIALTY CROP METER DEEP 3 GROOVE

1шт.

18

1030532

METER

SPECIALTY CROP METER DEEP 4 GROOVE

1шт.

19

1030533

METER

SPECIALTY CROP METER CANOLA 4 GROOVE

1шт.

20

1030534

METER

SPECIALTY CROP METER CANOLA 6 GROOVE

1шт.

The shear bolt, nut & washer are missing from the catalog.

1шт.

1032188 Bolt

1шт.

1032187 Nut

1шт.

1032189 Washer (bj 09/07/99)

1шт.
