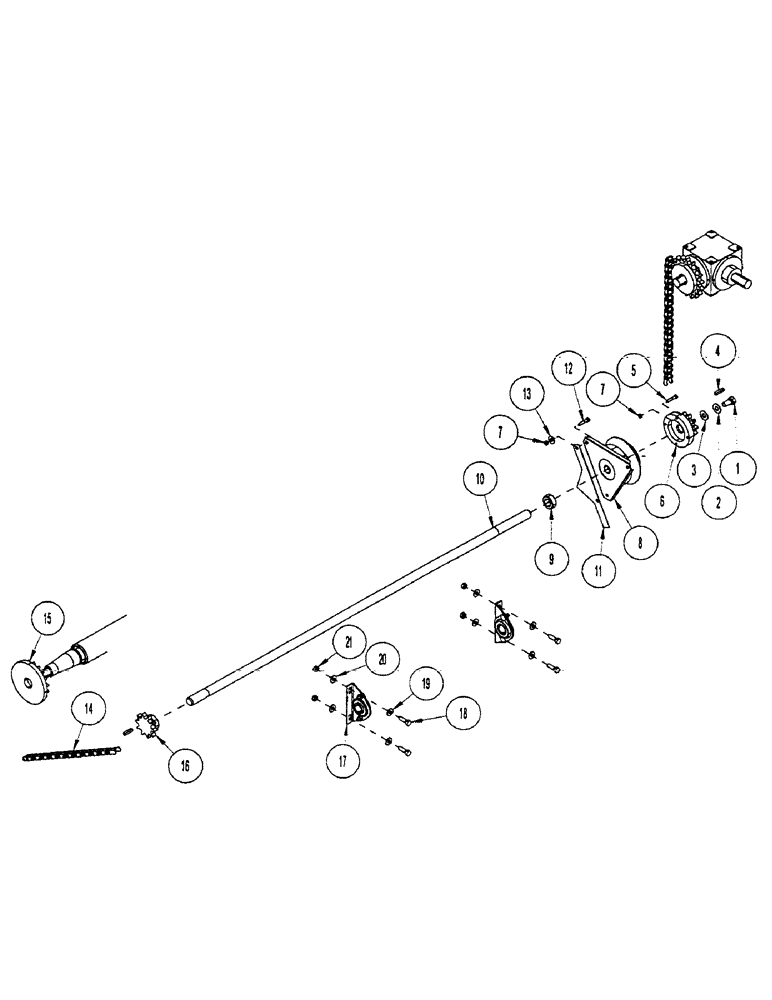

Запчасти Case IH 2400 (E22) - CLUTCH

1

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

2

1014443

WASHER

- flat: .50 ZP

1шт.

3

1011581

LOCK WASHER

- lock: .50 ZP

1шт.

4

1012975

KEY

: .250 x .250 x 1.250

1шт.

5

1013940

BOLT

BOLT - hex: .25 x 1.25 NC GR5 ZP

4шт.

6

1021091

ADAPTER

ASSY - adapter

1шт.

7

1011587

NUT,1/4"-20, G5

- hex: .25 NC GR2 ZP

5шт.

8

1021090

CLUTCH DISC

CLUTCH - electric: Warner 5210-25

1шт.

8

1021588

CLUTCH

- electric: rework

1шт.

9

1013418

COLLAR

- set: 1.00

1шт.

10

1021234

SHAFT

- drive

1шт.

11

1027378

STOP

WLDMT - clutch stop

1шт.

12

1013942

BOLT (MACHINE)

BOLT - hex: .25 x 2.25 NC GR5 ZP

1шт.

13

1011583

WASHER

- flat: .31 ZP

1шт.

14

1022874

SPROCKET ASSY.

SPROCKET - 60BS16 x 1.00 Martin

1шт.

15

1022844

CHAIN (AG)

CHAIN - roller: 33 links #60

1шт.

1018683

LINK

- offset: #60OL

1шт.

1022965

LINK, CONNECTING

LINK - connector: #60 .750 PTCH

1шт.

16

1012976

DRIVE SPROCKET

SPROCKET - 60BS10 x 1.00 Martin

1шт.

17

1018571

BEARING ASSY

ASSY - pillow block bearing

2шт.

18

1033271

BOLT

- hex: .38 x 1.00 NC SS

4шт.

19

1033262

WASHER

- flat: SAE .38 SS

8шт.

20

1033267

WASHER, LOCK

WASHER - lock: .38 SS

4шт.

21

1033268

NUT

- nylock: .38 NC SS

8шт.
