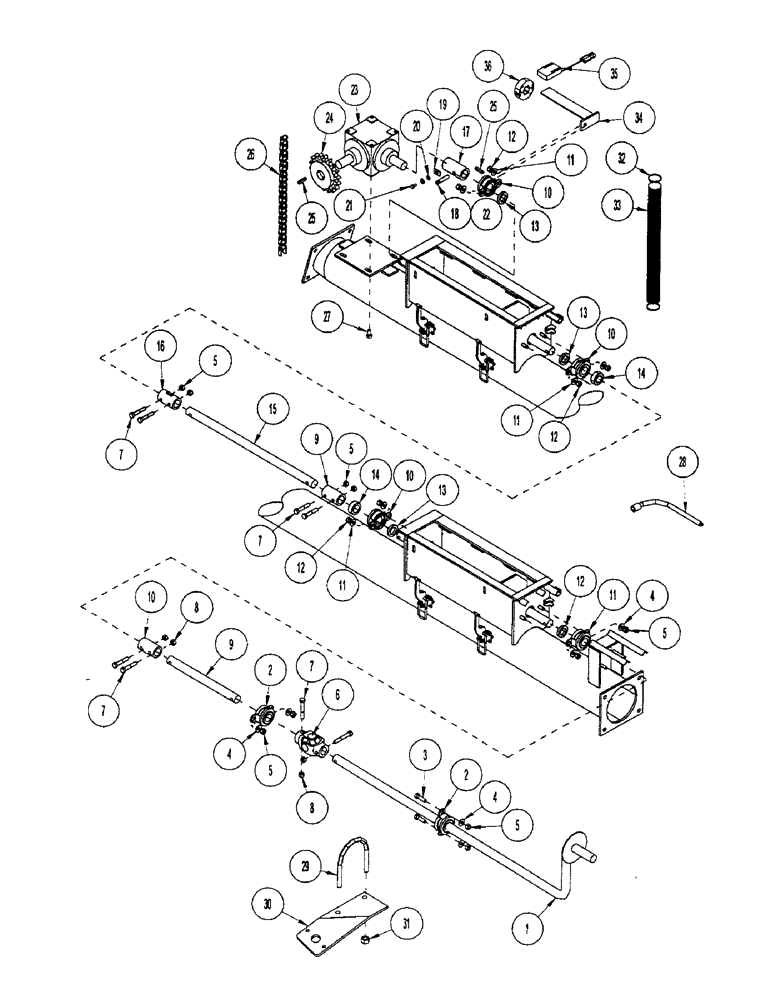

Запчасти Case IH 2400 (E20) - METERING DRIVE TRAIN

1

1032465

CRANK

ASSY - crank

1шт.

2

1030961

FLANGED BEARING,25.63mm ID

BEARING FLANGE/A

2шт.

3

1011600

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT - hex: .38 x 1.00 NC GR5 ZP

2шт.

4

1033266

WASHER

- flat: .38 SS

4шт.

5

232-1446

NUT,3/8"-16, GC

NUT - nylock: .38 NC GR6 ZP

12шт.

6

1013301

JOINT

- universal (Rework)

1шт.

7

1011725

BOLT

BOLT - hex: .38 x 2.00 NC GR5 ZP

8шт.

8

1027349

SHAFT

1шт.

9

1012996

TUBE,1.03" ID, 1.5" OD

- coupler

2шт.

10

1012986

BEARING ASSY,25.4mm ID

BEARING FLANGE/A

4шт.

11

1033262

WASHER

- flat: SAE .38 SS

8шт.

12

1033268

NUT

- nylock: .38 NC SS

8шт.

13

1012978

SEAL

WASHER - rubber

4шт.

14

1013418

COLLAR

LOCK COLLAR

2шт.

15

1027348

SHAFT

1шт.

16

1025089

COUPLING

ASSY - coupler

1шт.

17

1013042

TUBE,1.017" ID, 1.5" OD

- coupler 1.5 x 1.00 x 3.00

1шт.

18

1013044

SET SCREW

SCREW - set: .25 x .25 NC GR8 NP

1шт.

19

1013221

STRIP

- shear pin

1шт.

20

0100979

WASHER

- flat: SAE .25 ZP

1шт.

21

1013243

BOLT

BOLT - hex: .25 x .50 NC GR5 ZP

1шт.

22

1013218

PIN

Shear, Brass

1шт.

23

0100908

GEARBOX ASSY

ASSY - bevel gear drive, see breakdown below

1шт.

351802A1

GEARBOX ASSY

1шт.

350533A1

HOUSING

1шт.

350534A1

SCREW

1шт.

350535A1

CAP

SCREW

1шт.

350536A1

BEARING, CUP

cup

1шт.

350537A1

ROLLER BEARING

1шт.

350538A1

GEAR

SPACER

1шт.

350539A1

BEARING, CUP

cup

1шт.

350540A1

ROLLER BEARING

1шт.

350541A1

PINION SHAFT

1шт.

350709A1

SHAFT SEAL

1шт.

350542A1

SCREW

cap, thru

1шт.

350710A1

GASKET

1шт.

350711A1

GASKET

1шт.

350712A1

GASKET

1шт.

350543A1

GEAR, BEVEL

1шт.

350544A1

SHAFT

thru

1шт.

350545A1

PLUG

PIPE SOLID

1шт.

350546A1

PLUG

PIPE VENTED

1шт.

24

1022874

SPROCKET ASSY.

SPROCKET - 60BS16 x 1.00 Martin

1шт.

25

1012975

KEY

: .250 x .250 x 1.250

2шт.

26

1018683

LINK

- offset:#60 OL

1шт.

26

1022844

CHAIN (AG)

CHAIN - roller: 33 links #60

1шт.

26

1022965

LINK, CONNECTING

LINK - connector:#60 .750 PTCH

1шт.

27

1011599

BOLT

BOLT - hex: .38 x .75 NC GR5 ZP

4шт.

28

1013281

TOOL

WLDMT - wrench

1шт.

29

1023564

U-BOLT

BOLT-U: .50 x 4.53 x 5.00 ZP

2шт.

30

1027213

ANCHOR

MOUNT - bearing

1шт.

31

231-1448

NUT,1/2"-13, GB

- nylock: .50 NC GR6 ZP

2шт.

32

1021946

HOSE,1.50" ID

Air Transfer 1.50" ID

2шт.

33

1012979

CLAMP

#20

1шт.

34

290354A1

BRACKET

/ W SHAFT SENSOR (See M200 elec. for hardware)

1шт.

35

290353A1

SENSOR

SMART SHAFT

1шт.

36

290356A1

RING

SENSOR MAGNETIC RING

1шт.

1024937

MAGNET

secured by 2 part epoxy glue

2шт.
