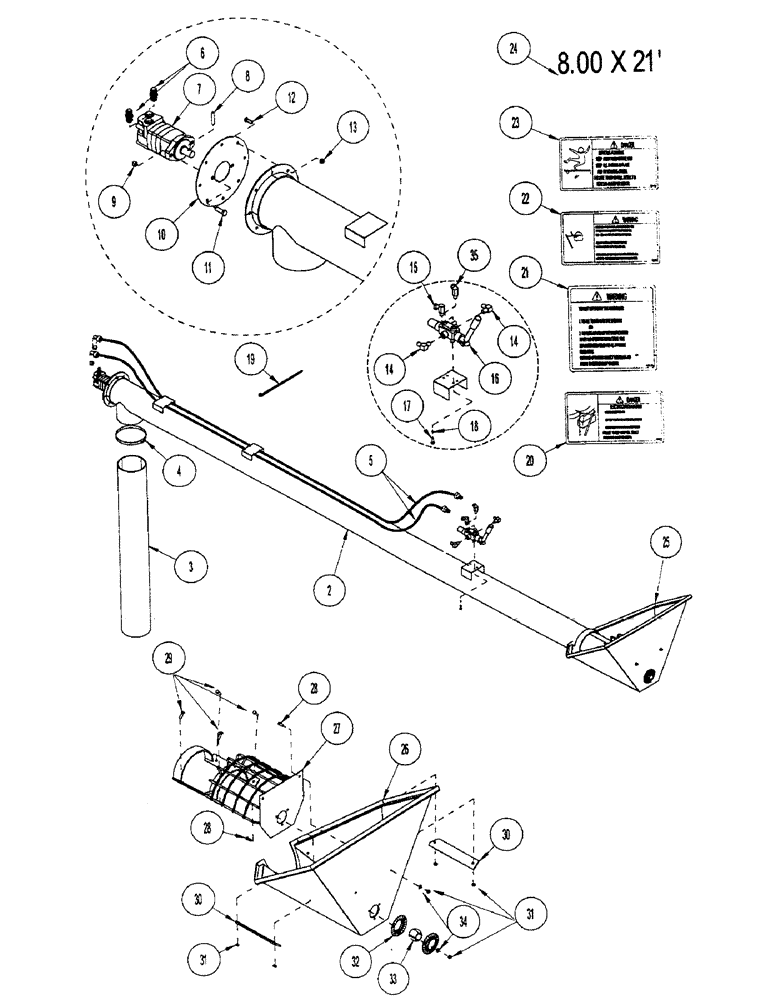

Запчасти Case IH 2400 (E18) - AUGER - 8"

2

1030373

AUGER

: 8.00 x 18" (Discontinued)

1шт.

2

1030080

AUGER

: 8.00 x 21"

1шт.

REF: 2 AUGER - PER ECN K981301 NOW AVAILABLE P/N 312589A1 AUGER/A 8.00 X 18'

1шт.

3

1030082

HOSE,8.00" ID x 60.00"

Flex Spout Auger 8.00" ID x 60.00"

1шт.

4

1030083

HOSE CLAMP

CLAMP HOSE #140

1шт.

5

1027943

HOSE

: .50 x 192

2шт.

6

1026594

ADAPTER

FITTING - adapter: TMK#6400-10 straight

2шт.

7

1032092

MOTOR, HYDRAULIC

HYDRAULIC MOTOR: Char-Lynn 104-1073

1шт.

8

1021532

PIN

- spiralok: .38 x 2.00

1шт.

9

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

10

1030087

LARGE PLATE

PLATE END - hyd. motor mount 8.00

1шт.

11

1011607

BOLT

BOLT - hex: .50 x 1.50

6шт.

12

1011600

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT - hex: .38 x 1.00

8шт.

13

231-1445

NUT,5/16"-18, GB

NUT - nylock: .38

8шт.

14

1021531

FITTING

ELBOW TMK#1501-8-8

2шт.

15

1024426

FITTING

ELBOW TMK#2507-12-12

1шт.

16

1021498

VALVE

- manual control 4 way

1шт.

Ref #16, 1021498 valve, the kit is 1026684. bj 6/28/99

1шт.

17

1021800

BOLT

BOLT - hex: .38 x .50

4шт.

18

95-11041

WASHER,3/8"

- lock: .38

4шт.

19

1021284

CABLE TIE

TIE - 8.00

6шт.

20

1023327

DECAL

- danger

1шт.

21

1023328

DECAL

- warning

1шт.

22

1023329

DECAL

- warning

1шт.

23

1023330

DECAL

- danger

1шт.

24

1030364

DECAL

- auger 8.00 x 18' (Discontinued)

1шт.

24

1030086

DECAL

- auger 8.00 x 21'

1шт.

25

1032458

HOPPER

ASSY - auger hopper

1шт.

26

1033394

HOPPER

- modified: 8"

1шт.

27

CON1030093

FRAME

HOPPER - guard

1шт.

28

1011600

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT - hex: .38 x 1.00

8шт.

29

1011607

BOLT

BOLT - hex

4шт.

30

1030645

BACK PLATE

PLATE - backing

2шт.

31

231-1445

NUT,5/16"-18, GB

NUT - nylock: .38

8шт.

32

1030646

FLANGED BEARING

AUGER - bearing

2шт.

33

1030647

BUSHING,38.89mm ID x 63.5mm OD

- wood

1шт.

34

95-11041

WASHER,3/8"

- flat: .38

5шт.

REF: 34 FLIGHTING - PER ECN K981301 NOW AVAILABLE

1шт.

35

1024328

FITTING

FTG - elbow TMK#2501-L-12-12

1шт.

1030084

TUBE,177.8 mm ID, 203.2 mm OD

ASSY - tube: auger 8.00 x 21'

1шт.

1030085

AUGER

FLIGHTING: 8.00 x 21'

1шт.

P/N 312590a1 AUGER/A 8.00 X 21' TECH-NOTE

1шт.

P/N 311921A1 FLIGHTING 8.00 X 21'

1шт.

P/N 311922A1 FLIGHTING 8.00 X 18' TECH-NOTE

1шт.
