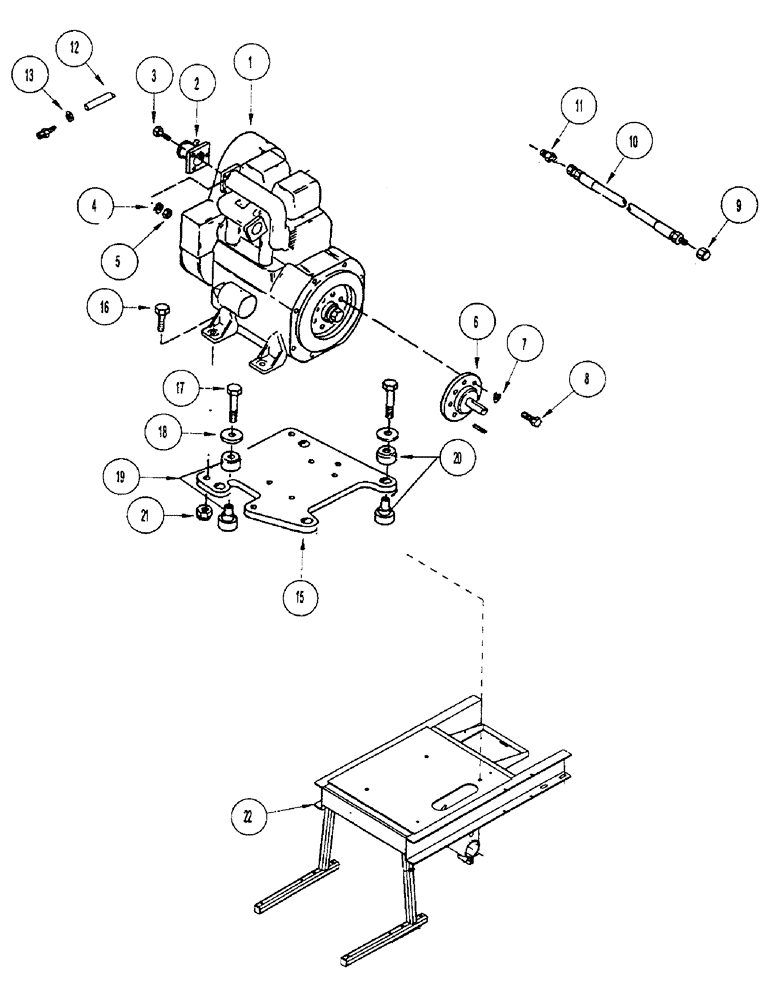

Запчасти Case IH 2400 (E10) - ENGINE MOUNTING

1

1033042

SKELETON ENGINE

ENGINE - 9LD-625-2

1шт.

1

1033100

ENGINE ASSEMBLY

PRE ASSY OF 9LD 625 ENGINE GRP

1шт.

2

1033337

FLANGE ASSY

WLDMT FLANGE

1шт.

3

1014786

BOLT

BOLT - hex: .31 x 1.25 NC GR5 ZP

2шт.

4

1014125

LOCK WASHER

WASHER - lock: .31 ZP

3шт.

5

1011575

NUT,5/16"-18, G5

- hex: .31 NC GR2 ZP

3шт.

6

1012363

SHAFT

STUBSHAFT - drive

1шт.

7

892-11010

LOCK WASHER,M10

8шт.

8

1012384

BOLT

- metrc: M10 x 30 MM G10.9 P

8шт.

9

1018143

SPARE PART

FTG - adapter: AQ#15.063-8-6

1шт.

10

1017737

HOSE ASSY.

HOSE .38 x 012-6JICM/-6JICFSW

1шт.

11

1017738

FITTING

FTG - cap TMK#304-C-6

1шт.

12

1014929

HOSE,0.38" ID x 8.50"

- Crankcase breather 0.38" ID x 8.50"

1шт.

13

1012406

CLAMP

- hose: S.S.# 04 .22 -.63

1шт.

15

1014736

LARGE PLATE

PLATE - engine mount

1шт.

15

1033336

PLATE

- Lombordini

1шт.

16

1017526

BOLT

- hex: .63 x 2.25 NC GR5 ZP

4шт.

17

1016726

BOLT

- hex: .63 x 4.00 NC GR5 ZP

4шт.

18

1014741

WASHER

- snubbing

4шт.

19

1014738

ISOLATOR

- 90#

2шт.

20

1014739

ISOLATOR

- 150#

2шт.

21

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

8шт.

22

1027346

PLATFORM

WLDMT - engine platform

1шт.
