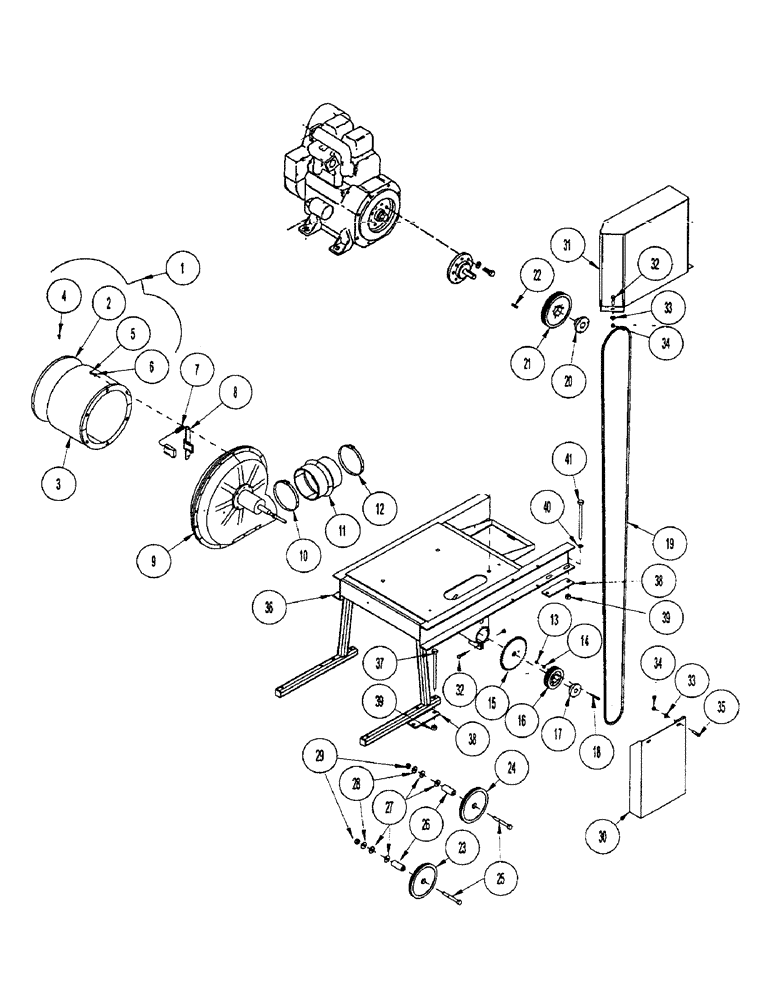

Запчасти Case IH 2400 (E08) - DIESEL BLOWER MOUNTING

1

1020801

SCREEN

KIT

1шт.

2

1020540

SCREEN

- end

1шт.

3

1020543

SCREEN

WLDMT - screen

1шт.

4

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

SCREW - zipin tap: #12 x 1/2"

4шт.

5

1011595

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT - hex: .25 x .75 NC GR5 ZP

4шт.

5

1013423

BOLT

BOLT - hex: .25 x 1.00 NC GR5 ZP

2шт.

6

1020416

WASHER

- flat: .25 ZP

6шт.

7

290355A1

SENSOR

SMART FAN

1шт.

8

290295A1

BRACKET, SUPPORTING

BRACKET (See M200 elec. page for hardware)

1шт.

9

1024764

BLOWER

MODIFICATION - diesel blower

1шт.

10

1016416

CLAMP

- hose: S.S.#96 5.56-6.50

1шт.

11

1014892

HOSE,5.00" ID, 6.00" ID x 6.00"

- Hump reducer 5.00" ID, 6.00" ID x 6.00"

1шт.

12

1026256

CLAMP

- hose: S.S.#88 5.06-6.00

1шт.

13

1011587

NUT,1/4"-20, G5

- hex: .25 NC GR2 ZP

3шт.

14

1013297

LOCK WASHER

LOCK .25 NP

3шт.

15

1016120

SPROCKET ASSY.

SPROCKET - machining

1шт.

16

1014865

SHEAVE

- 2-3V-4.12 OD Martin

1шт.

17

1014868

HUB

- taper lock - SH .880 bore

1шт.

18

1016211

BOLT

BOLT - hex: .25 x 2.00 NC GR5 ZP

3шт.

19

1020078

SET OF BELTS,67.00" L

- 2/3V-670 (Standard) 67.00" L

1шт.

19

1016394

BELT

- set: - 3V-710 (High)

1шт.

19

1032909

SET OF 2 BELTS

BELT - set: - 2/3V x 750 gates (Dsump)

1шт.

20

1012343

HUB

- taper lock - SDS 1.190 bore

1шт.

21

1014863

SHEAVE

- 2-3V-6.90 OD Martin (Standard)

1шт.

21

1014864

SHEAVE

- 8.00" QD type D3 - 2groov (High or desump)

1шт.

22

1012975

KEY

: .250 x .250 x 1.250

1шт.

23

290529A1

PULLEY

IDLER - flanged (High or desump)

1шт.

24

290529A1

PULLEY

IDLER - flanged (Standard, high or desump)

1шт.

25

61-36256

HEX SOC SCREW,5/8"-11 x 3 1/2"

SCREW-S-H: .63 x 3.50 WC GR8 NP

1шт.

26

1029619

SPACER

TUBE - spacer

1шт.

27

1011813

LOCK WASHER

- flat

2шт.

28

1013004

WASHER

- lock

1шт.

29

1011578

NUT,5/8"-11, G5

: .63 NC GR2 ZP

1шт.

30

1027347

BELT

GUARD - belt

1шт.

31

1025461

BELT

WLDMT - belt guard

1шт.

32

1011601

BOLT

BOLT - hex: .38 x 1.25 NC GR5 ZP

2шт.

33

1014608

WASHER

- flat: SAE .38 ZP

2шт.

34

232-1446

NUT,3/8"-16, GC

NUT - nylock: .38 NC GR6 ZP

2шт.

35

1011601

BOLT

BOLT - hex: .38 x 1.25 NC GR5 ZP

2шт.

36

1027346

PLATFORM

WLDMT - engine platform

1шт.

37

1020848

BOLT

- hex: .50 x 8.00 NC GR5 ZP

4шт.

38

1021679

LARGE PLATE

PLATE - backup

4шт.

39

231-1448

NUT,1/2"-13, GB

- nylock: .50 NC GR6 ZP

8шт.

40

1011584

WASHER

- flat: SAE .50 ZP

4шт.

41

1027367

BOLT

- hex: .50 x 9.00 NC GR5 ZP

4шт.
