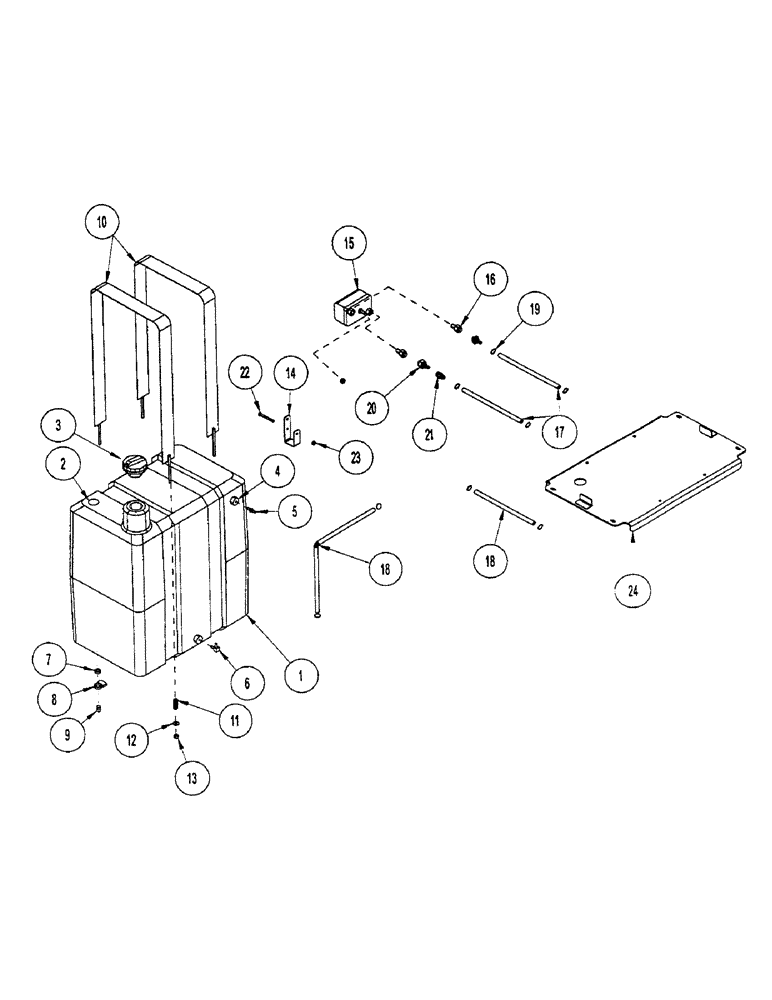

Запчасти Case IH 2400 (E06) - FUEL TANK

1

1030338

FUEL TANK

ASSY - fuel tank: 23.5 gallon

1шт.

1

1030036

FUEL TANK

FUEL - tank: 23.5 gallon

1шт.

2

1030343

GAUGE

KELCH REMOTE GAUGE: (27592)

1шт.

3

1030349

FILLER CAP

CAP - stant: 1.500 (27588)

1шт.

4

1030348

BUSHING

: (27545)

2шт.

5

1030346

FITTING

BARB - hose straight: .19 (27538)

1шт.

6

1030347

FITTING

BARB - hose 90 degree elbow: .19 (27552)

1шт.

7

1030350

GROMMET

: (27593)

1шт.

8

1030344

CLAMP

: (27362)

1шт.

9

1030345

PLUG

- cap: (27484)

1шт.

10

1030406

CLAMP

WLDMT - clamp band

2шт.

11

1030411

SPRING

4шт.

12

1011582

WASHER

- flat: SAE .31 ZP

4шт.

13

231-1445

NUT,5/16"-18, GB

NUT - nylock: .31 NC GR5 ZP

4шт.

14

1030547

ANCHOR

MOUNT - fuel filter

1шт.

15

1013157

FILTER, FUEL

FILTER - fuel: AC# TP-888

1шт.

Ref: 15 1013157 Used on S/N CKB0011847 & Prior for S/N's after use spin on filter 311934A1 per ECN CD981225 It will require new bracket 306697A1 to attach filter to engine. A kit p/n 311932A1 is also released to adapt old fuel style filters to new. NAPO Tech. Note

1шт.

16

1013158

FITTING

FTG - swivel AQ# 4797-5-4B

1шт.

17

1016178

FUEL HOSE,0.25" ID x 24.00"

0.25" ID x 24.00"

2шт.

18

1016179

FUEL HOSE,0.25" ID x 33.00"

0.25" ID x 33.00"

2шт.

19

1012406

CLAMP

- hose: S.S.#04 .22 -.63

8шт.

20

1013159

FITTING

FTG - adapter: AQ#200001-6-5B

1шт.

21

1013160

FITTING

FTG - adapter: AQ#4740-4B

1шт.

22

1013942

BOLT (MACHINE)

BOLT - hex: .25 x 2.25 NC GR5 ZP

1шт.

23

1013240

LOCK NUT,1/4"-20, GB

NUT - nylock: .25 NC GR6 ZP

1шт.

24

1030545

MOUNTING PARTS

WLDMT - fuel tank mount

1шт.
