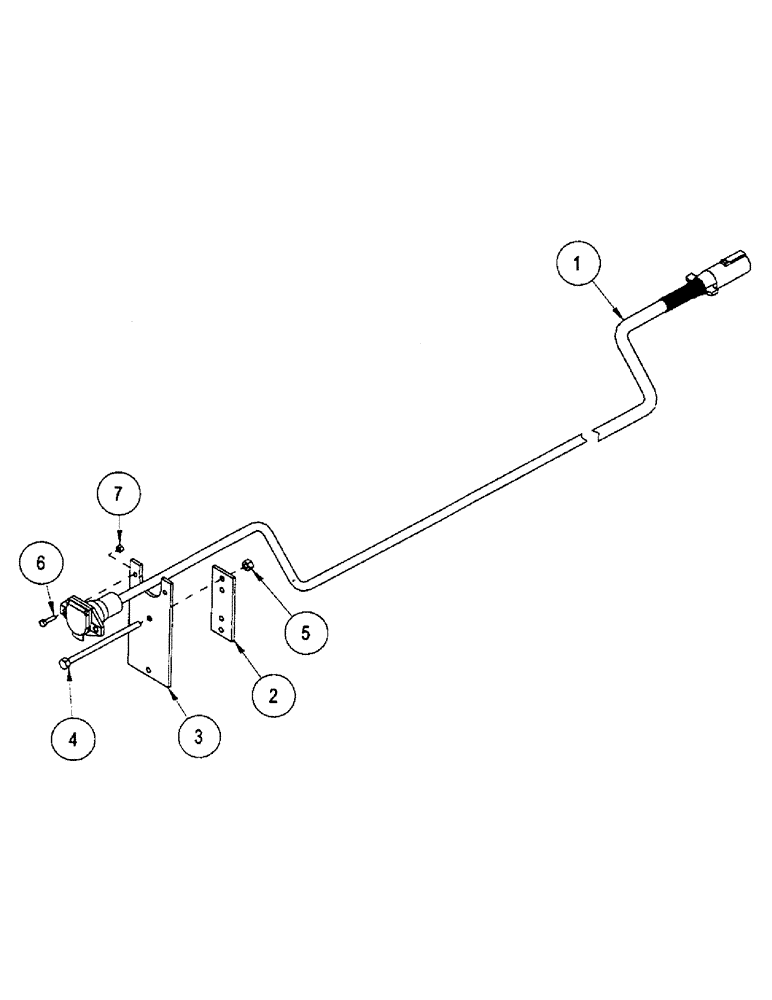

Запчасти Case IH 2400 (E05) - KIT - SAFETY LIGHT

1

1032284

HARNESS

- safety extension (Discontinued) (Replaced by 290360A1 harness AS-2400)

1шт.

REF: 1 PER ECN K981246 ADOPTED A NEW 2400

1шт.

LIGHT HARNESS P/N 290360A3. THIS 7 PIN TRACTOR CONNECTOR PIGTAIL ON THIS HARNESS OPERATES THE LIGHTS. IT IS A LONGER VERSION THAN THE 290360A2 ALLOWING 35 MORE INCHES ONTO THE PIGTAIL PORTION OF THE HARNESS.

1шт.

2

1026123

BAR

- bolting

1шт.

3

1032399

BAR

- plug bracket

1шт.

4

1024057

BOLT

- hex: .38 x 7.00 NC GR5 ZP

2шт.

5

232-1446

NUT,3/8"-16, GC

NUT - nylock: .38 NC GR6 ZP

2шт.

6

1013423

BOLT

BOLT- hex: .25 x 1.00 NC GR5 ZP

2шт.

7

1013240

LOCK NUT,1/4"-20, GB

NUT - nylock: .25 NC GR6 ZP

2шт.
