(23) - GROUND WHEEL DRIVE, 2351

Запчасти Case IH 2351 (23) - GROUND WHEEL DRIVE, 2351

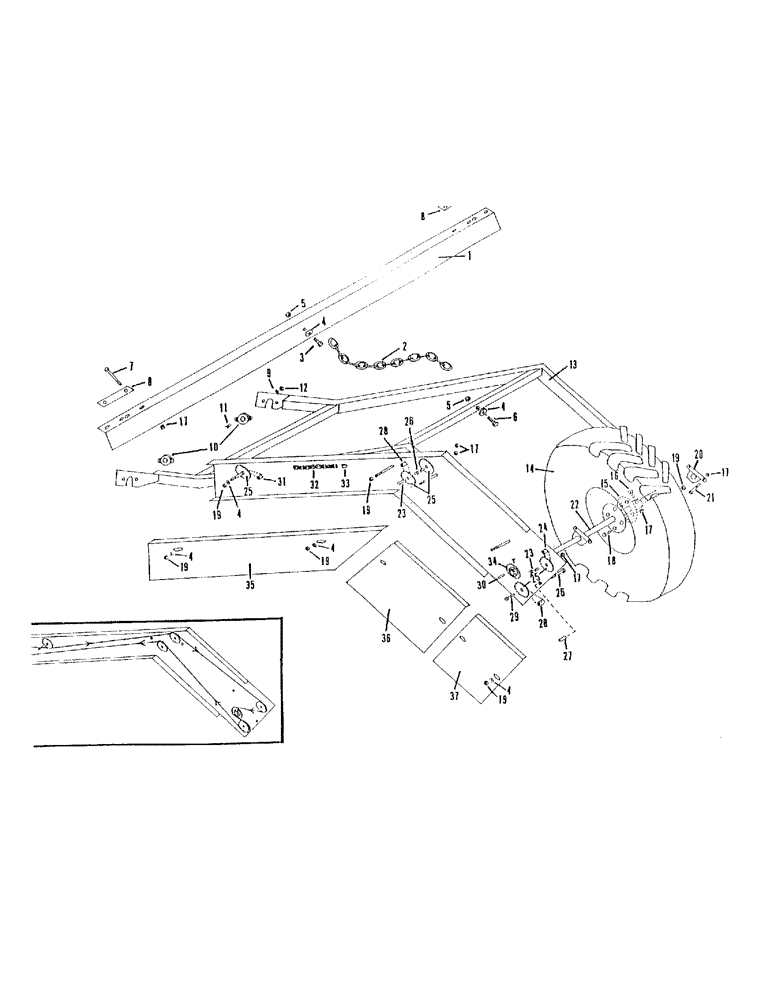

Схема запчастей Case IH 2351 - (23) - GROUND WHEEL DRIVE, 2351
6
19
17
21
15
35
4
16
7
26
19
19
23
34
12
4
10
5
17
30
4
27
26
17
33
8
25
3
19
28
20
37
2
8
18
4
22
14
19
17
24
36
19
11
28
4
25
23
9
29
11
32
1
13
5
4
31
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1021872

SUPPORT

BRACE

1шт.

2

1021937

CHAIN (AG)

CHAIN

1шт.

3

1011607

BOLT

BOLT, hex, 1/2" x 1 1/2"

1шт.

4

1011584

WASHER

FLAT WASHER, 1/2"

1шт.

5

231-4248

NUT,1/2"-13, GB

NUT, 1/2"

1шт.

6

1011610

BOLT

BOLT, hex, 1/2" x 2 1/2"

1шт.

7

1011669

BOLT

hex, 1/2" x 6"

4шт.

8

1021679

LARGE PLATE

PLATE

2шт.

9

1011586

LOCK WASHER

LOCK WASHER, 3/8"

4шт.

10

1012986

BEARING ASSY,25.4mm ID

FLANGE BEARING

2шт.

11

1011600

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, hex, 3/8" x 1"

4шт.

12

280136

NUT,3/8"-16, G8

4шт.

13

1023268

ARM ASSY.

GROUND WHEEL MOUNT ARM ASSEMBLY

1шт.

14

1021724

TYRE/TIRE

WHEEL & TIRE ASSEMBLY (includes calcium)

1шт.

15

1021791

HUB ASSY.

HUB

1шт.

16

1017708

BOLT

BOLT, hex, 1/2" x 2 1/4"

1шт.

17

231-1448

NUT,1/2"-13, GB

nylock, 1/2"

1шт.

18

1021927

BOLT

BOLT, hex, 1/2" x 1 1/2" fine thread

4шт.

19

1021928

NUT

1/2" fine thread

4шт.

20

1021782

BEARING CARRIER

PILLOW BLOCK BEARING

2шт.

21

1011611

BOLT

BOLT, hex, 1/2" x 3"

4шт.

22

1021863

SHAFT

1шт.

23

1011610

BOLT

BOLT, hex, 1/2" x 2 1/2"

2шт.

24

1021869

BUSHING

SPACER BUSHING, 1/4"

1шт.

25

1020065

SPROCKET ASSY.

IDLER SPROCKET, 17 tooth

5шт.

26

1011612

BOLT

BOLT, hex, 1/2" x 3 1/2"

2шт.

27

1021840

TUBE,0.531" ID, 1" OD

SPACER BUSHING

1шт.

28

1015892

BUSHING

SPACER BUSHING

2шт.

29

1011609

BOLT

BOLT, hex, 1/2" x 2"

1шт.

30

1012975

KEY

STOCK, 1/4" x 1/4" x 1"

1шт.

31

1024798

TUBE

SPACER BUSHING, 3/8"

1шт.

32

1021948

CHAIN (AG)

CHAIN

1шт.

33

1016875

LINK, CONNECTING

CONNECTING LINK

1шт.

34

1020039

SPROCKET ASSY.

SPROCKET, 16 tooth

1шт.

35

1021864

SHIELD

1шт.

36

1021865

SHIELD

1шт.

37

1021867

ADJUSTER

SHIELD

1шт.
