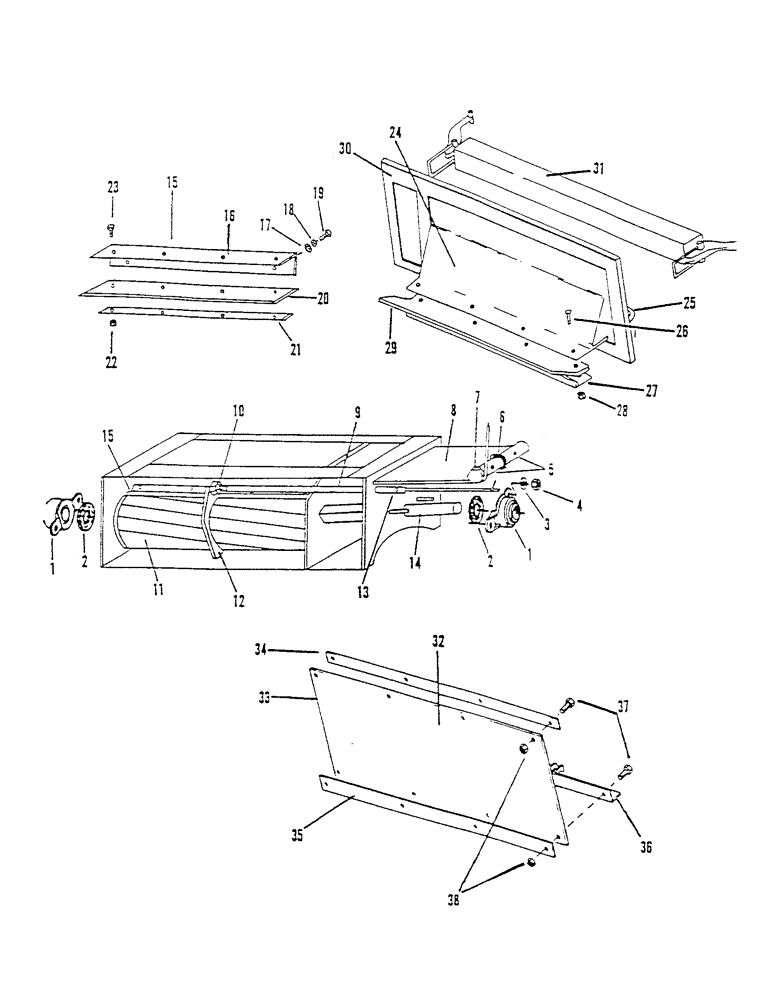

Запчасти Case IH 2351 (20) - PRODUCT METER, RIGHT

1

1012986

BEARING ASSY,25.4mm ID

BEARING, flange

2шт.

2

1012978

SEAL

WASHER, rubber

2шт.

3

1011583

WASHER

flat

4шт.

4

280136

NUT,3/8"-16, G8

4шт.

5

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

NIPPLE, LUBE, 1/4"-28 x .52" lg

2шт.

6

1013346

PINION

meter door

1шт.

7

1013097

GUSSET

BOLT

1шт.

8

1015182

RING GEAR

METERING DOOR ASSY (includes items 5, 6, & 7)

1шт.

9

1015419

TIE-ROD

ROD, flow control

1шт.

10

1011591

NUT,Jam, 1/2"-13, G5

1/2" jam

1шт.

11

METERING ROLL (see "METERING ROLLS" page for options)

1шт.

12

1015678

PLATE

FLOW CONTROL ASSEMBLY

1шт.

13

1013895

THUMB SCREW

THUMBSCREW

1шт.

14

1013920

SHAFT

metering roll drive

1шт.

15

1013310

DEFLECTOR

ASSEMBLY

1шт.

16

1012955

DEFLECTOR

PLATE ASSEMBLY, deflector

1шт.

17

1011828

WASHER

FLAT WASHER, 3/8"

4шт.

18

1011586

LOCK WASHER

LOCK WASHER, 3/8"

2шт.

19

1013395

BOLT

BOLT, 3/8" x 1 1/4"

2шт.

20

1013128

DEFLECTOR

RUBBER, deflector

1шт.

21

1013127

STRIP

PLATE, hold

1шт.

22

1013240

LOCK NUT,1/4"-20, GB

LOCKNUT, 1/4"

4шт.

23

1011595

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT, hex, 1/4" x 3/4"

4шт.

24

1016218

COVER ASSY

COVER & WIPER ASSY (includes items 25-30)

1шт.

25

1016215

COVER

ASSEMBLY

1шт.

26

1013244

SCREW

4шт.

27

1013126

ANGLE

hold

1шт.

28

1011588

NUT,#10-24

4шт.

29

1013129

WINDSHIELD WIPER

WIPER, rubber

1шт.

30

1018874

GASKET

1шт.

31

1016213

TOGGLE

ASSEMBLY

1шт.

32

1013283

DOOR ASSY.

CLEANOUT DOOR ASSY (includes items 33-38)

1шт.

33

1013176

COVER

DOOR

1шт.

34

1013177

SUPPORT

STRIP, narrow

1шт.

35

1013178

STRIP

wide

1шт.

36

1013284

ANGLE

LATCH ANGLE ASSEMBLY

1шт.

37

1011595

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT, 1/4" x 3/4"

8шт.

38

1013240

LOCK NUT,1/4"-20, GB

NUT, 1/4"

8шт.
