(E64) - KIT-INTERMEDIATE SUPPORT 2000 ONLY, DISC. ON ALL OTHER MODELS MAY 1, 1997, HITCH UPGRADE KIT

Запчасти Case IH 2000 (E64) - KIT-INTERMEDIATE SUPPORT 2000 ONLY, DISC. ON ALL OTHER MODELS MAY 1, 1997, HITCH UPGRADE KIT

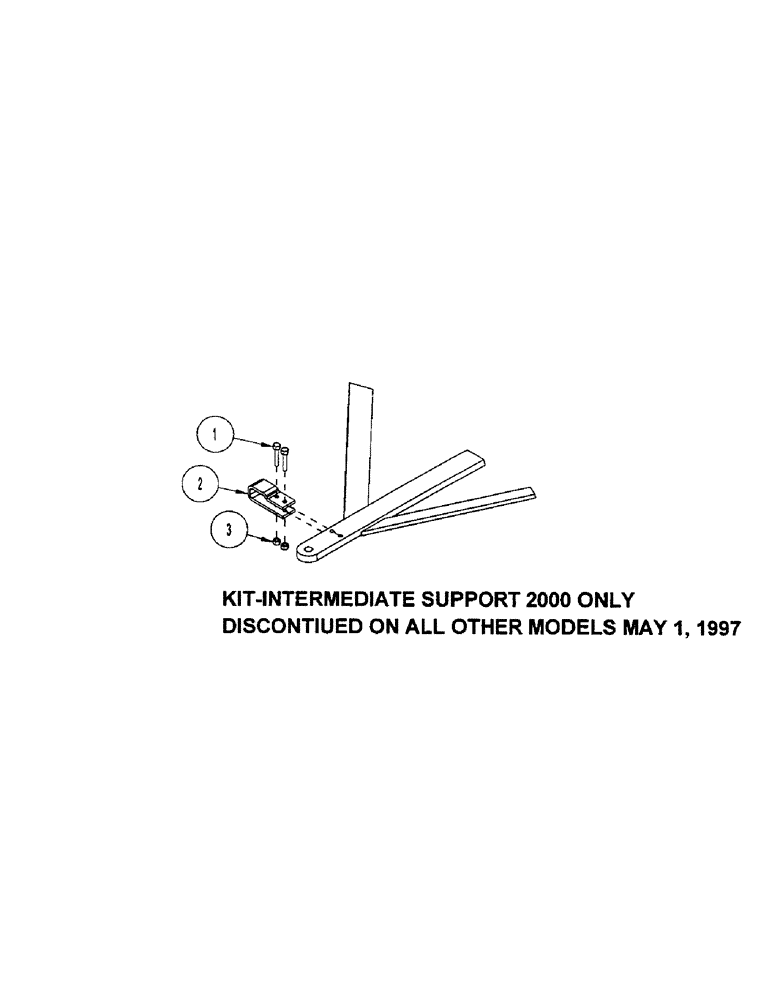

Схема запчастей Case IH 2000 - (E64) - KIT-INTERMEDIATE SUPPORT 2000 ONLY, DISC. ON ALL OTHER MODELS MAY 1, 1997, HITCH UPGRADE KIT
3
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1016858

BOLT

BOLT - hex: .50 x 2.75 NC GR5 ZP

2шт.

2

1032247

CHAIN (CE)

CLEVIS - safety chain

1шт.

3

231-1448

NUT,1/2"-13, GB

- nylock: .50 NC GR6 ZP

2шт.

283737A1

HITCH ASSY

HITCH UPGRADE KIT - red

1шт.

290054A1

ATTACHMENT

HITCH UPGRADE KIT - green

1шт.

Выбрано товаров: 0
