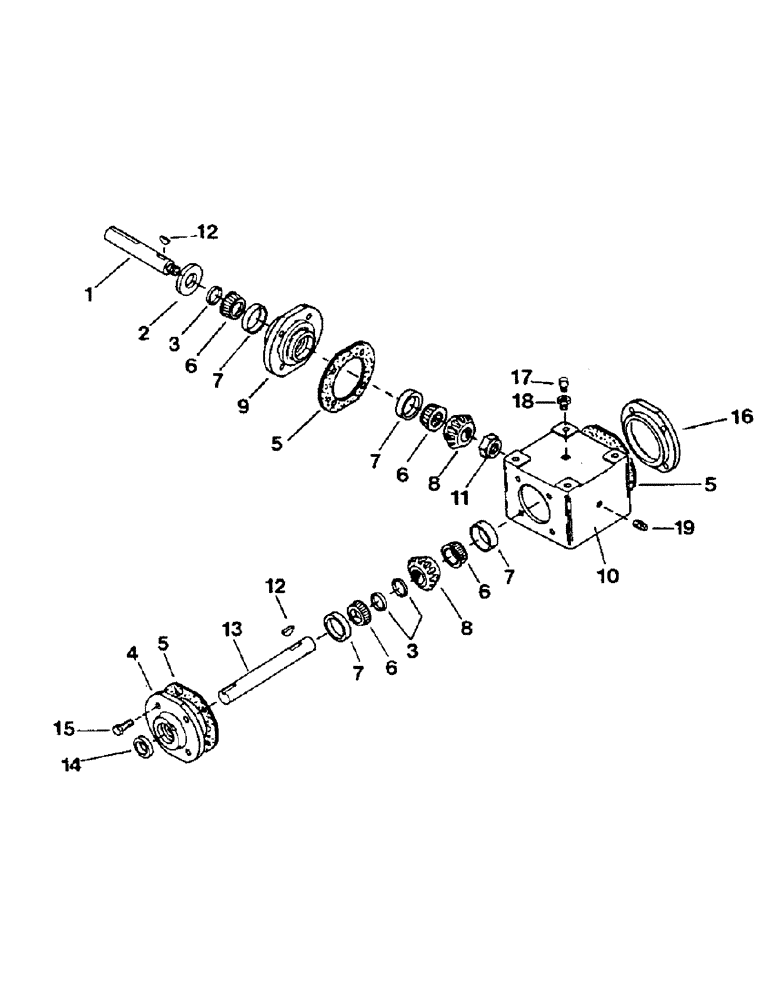

Запчасти Case IH 2000 (E22) - 101908 GEARBOX PARTS

1

0100936

SHAFT

pinion

1шт.

2

0100939

SEAL

pinion shaft

1шт.

3

0100941

RING

retaining

3шт.

4

0100932

CAP

open end

2шт.

5

0100943

GASKET

3шт.

Ref: 5 This is a gasket kit with 3 types of gaskets and a total of 15 gaskets. NAPO TECH. NOTE

1шт.

6

0100938

CONE

bearing

4шт.

7

0100937

CUP

bearing

4шт.

8

0100934

GEAR

straight bevel

2шт.

9

0100933

HOUSING

pinion

1шт.

10

0100931

HOUSING

gearbox

1шт.

11

0100942

NUT

pinion

1шт.

12

016935

KEY, woodruff

2шт.

13

0100935

SHAFT

cross

1шт.

14

0100940

SEAL

cross shaft

1шт.

15

1011597

BOLT

BOLT

12шт.

16

0100944

CAP

closed end

1шт.

17

0100928

PLUG

pressure relief

1шт.

18

017427

BUSHING, reducing

1шт.

19

016016

PLUG, pipe

1шт.

COMPLETE GEARBOX NUMBER S/B 100908. SEE 1802 AIR SYSTEM P/B. JBEDFORD 5/4/99.

1шт.

NAPO TECH NOTE.

1шт.
