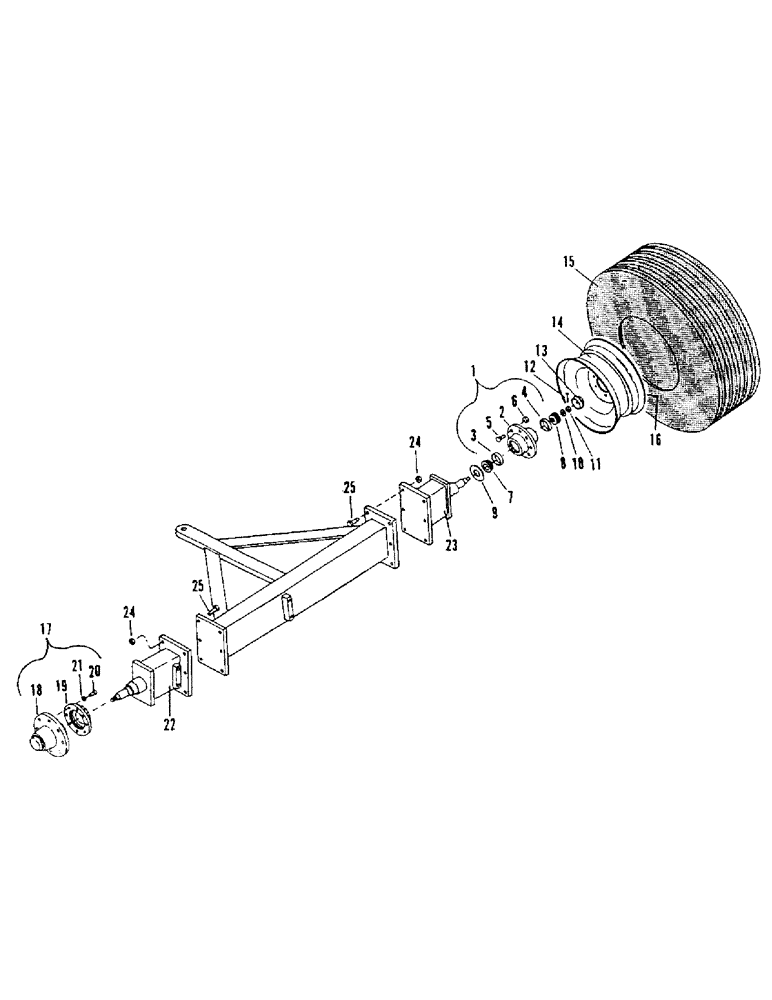

Запчасти Case IH 2000 (E11) - REAR AXLE - 2000

1

1017759

HUB ASSY.

ASSY - hub: CT&D # HA 817

1шт.

2

1017760

HUB ASSY.

ASSY - hub w/ cups & studs

1шт.

3

1017761

BEARING CUP,3.5" ID x 3.8125" OD

CUP - CT&D #382-A (BCA #382-A)

1шт.

4

1012359

CUP

- CT&D # & NTN #LM501310

1шт.

5

1017762

STUD

- lug: CT&D # WB 46

8шт.

6

1013470

NUT

- Bev: CT&D # WB 18

8шт.

7

1017763

ROLLER BEARING,2.25" ID x 0.864"

CONE - CT&D #387-AS (BCA# 387-AS)

1шт.

8

1012354

ROLLER BEARING,1.625" ID x 2.09375" OD x 0.7656"

CONE - CT&D #LM501349

1шт.

9

1017764

SEAL

- #TCM-30404TA (CT&D #SE42)

1шт.

10

1013475

WASHER

- flat: F&H #106247

1шт.

11

425-1316

NUT,1"-14, G5

NUT - hex: slot 1-14 NS GR2 ZP

1шт.

12

1013473

ANGLE BAR

PIN - cotter: .19 X 2.00 NP

1шт.

13

1013474

CAP

- hub: CT&D # DC26

1шт.

14-15

SEE TIRE OPTIONS PARTS PAGE

1шт.

17

1021050

HUB

ASSY - hub & sprocket

1шт.

19

1020647

FLANGE

WLDMT - flange & sprocket

1шт.

20

1013940

BOLT

BOLT - hex: .25 x 1.25 NC GR5 ZP

8шт.

21

1013297

LOCK WASHER

- lock: .25 NP

8шт.

22

1025678

WLDMT - rear spindle RH: 68

1шт.

22

1025679

WLDMT - rear spindle RH: 72

1шт.

22

1025680

WLDMT - rear spindle RH: 76

1шт.

22

1025681

WLDMT - rear spindle RH: 88

1шт.

23

1025673

WLDMT - rear spindle LH: 68

1шт.

23

1025674

WLDMT - rear spindle LH: 72

1шт.

23

1025675

WLDMT - rear spindle LH: 76

1шт.

23

1025681

WLDMT - rear spindle RH: 88

1шт.

24

232-14412

NUT,3/4"-10, GB

NUT - nylock: .75 NC GR6 ZP

16шт.

25

1016598

BOLT

- hex: .75 x 2.50 NC GR5 ZP

16шт.
