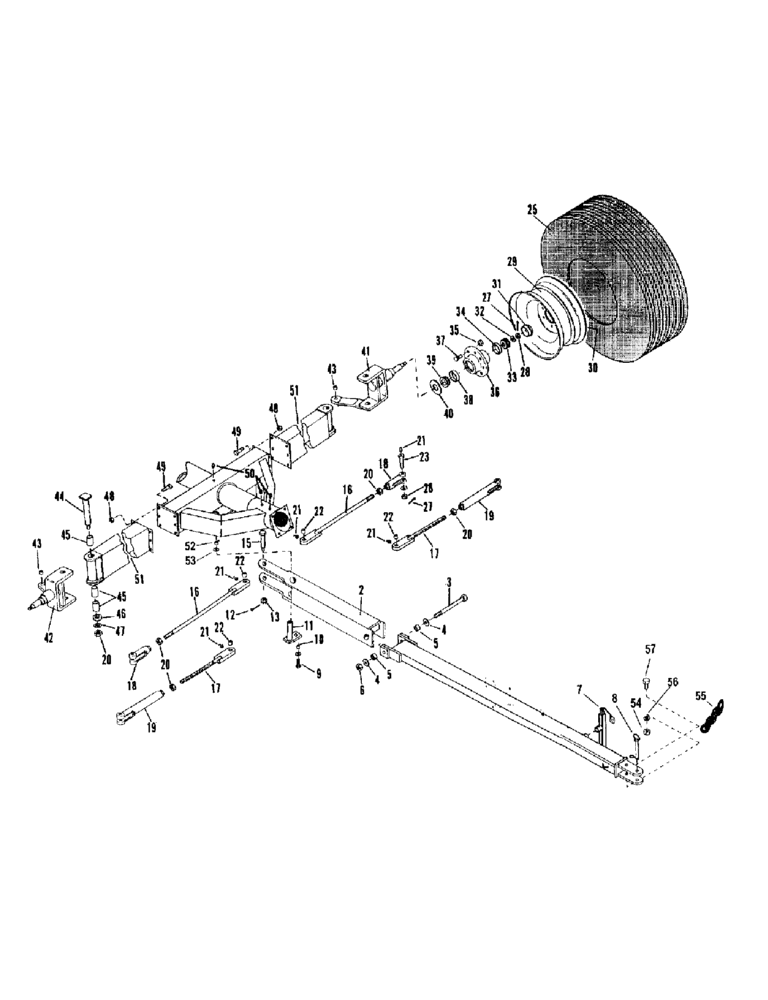

Запчасти Case IH 2000 (E08) - DRAWPOLE & FRONT AXLE - 2000

1

1024665

POLE

DRAWPOLE/W

1шт.

2

1024650

YOKE

WLDMT - yoke

1шт.

3

1026574

PIN ASSY.

WLDMT - pin

1шт.

4

1015896

WASHER

- flat: SAE 1.00 NP

2шт.

5

1026786

BUSHING

bearing pivot 1.00 X 1.250

2шт.

6

232-14416

NUT,1"-8, GC

NUT - nylock: 1.00 NC GR6 ZP

1шт.

7

1016961

JACK

1шт.

8

1027881

HITCH PIN

ASSY - hitch pin

1шт.

9

1011609

BOLT

BOLT - hex: .50 x 2.00 NC GR5 ZP

1шт.

10

1015892

BUSHING

TUBE - bushing

1шт.

11

1024659

PIN

WLDMT - pin-yoke

1шт.

12

1012375

SPLIT PIN/SAFETY PIN

PIN - cotter: .19 x 1.50 NP

1шт.

13

425-1314

SLOTTED NUT,7/8"-14, G5

NUT - hex: slot .88 NF GR5 ZP

1шт.

15

1026109

PIN ASSY.

WLDMT - pin

1шт.

16

1020682

ROD

WLDMT - tie rod

2шт.

17

1024696

ROD

WLDMT - tie rod

2шт.

18

1020683

CLEVIS

WLDMT - tie rod clevis

2шт.

19

1024697

WLDMT - tie rod clevis

2шт.

20

1020676

LOCK NUT

NUT - jam: 1.25 NF GR2 ZP

4шт.

21

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

ZERK - grease: .25 UNF STR

8шт.

22

1020681

BUSHING

2шт.

23

CAS1024351

ROD

ASSY - tie rod bolt

2шт.

25

SEE TIRE OPTIONS PARTS PAGE

1шт.

27

1013473

ANGLE BAR

PIN - cotter: .19 x 2.00 NP

2шт.

28

425-1316

NUT,1"-14, G5

NUT - hex: slot 1-14 NS GR2 ZP

2шт.

29

SEE TIRE OPTIONS PARTS PAGE

1шт.

30

SEE TIRE OPTIONS PARTS PAGE

1шт.

31

1013474

CAP

- hub: CT&D # DC26

4шт.

32

1013475

WASHER

- flat: F&H #106247

4шт.

33

1012354

ROLLER BEARING,1.625" ID x 2.09375" OD x 0.7656"

CONE - CT&D #LM501349

4шт.

34

1012359

CUP

- CT&D # & NTN #LM501310

4шт.

35

1013470

NUT

- Bev: CT&D # WB 18

32шт.

36

1017759

HUB ASSY.

ASSY - hub: CT&D # HA 817

4шт.

37

1017762

STUD

- lug: CT&D # WB 46

32шт.

38

1017761

BEARING CUP,3.5" ID x 3.8125" OD

CUP - CT&D #382-A (BCA #382-A)

4шт.

39

1017763

ROLLER BEARING,2.25" ID x 0.864"

CONE - CT&D #387-AS (BCA# 387-AS)

4шт.

40

1017764

SEAL

- #TCM-30404TA (CT&D #SE42)

4шт.

41

1024701

TRUNNION

WLDMT - front trunnion LH

1шт.

42

1024702

TRUNNION

WLDMT - front trunnion RH

1шт.

43

1020691

BUSHING

- AA-1232-2

2шт.

44

1020687

PIN

WLDMT - king pin

2шт.

45

1020686

BUSHING

6шт.

46

1020688

THRUST BEARING,1.7717" ID x 2.874" OD x 0.7874"

BEARING - thrust: Timken T177

2шт.

47

1020675

LOCK WASHER

- star: INT 1.25 ZP

2шт.

48

232-14412

NUT,3/4"-10, GB

NUT - nylock: .75 NC GR6 ZP

18шт.

49

1016598

BOLT

- hex: .75 x 2.50 NC GR5 ZP

18шт.

50

1011747

FITTING

ZERK - grease: .25-28 NFT 45D

4шт.

50

1030331

NIPPLE, LUBE

ZERK - grease: .25-28 UNF 90DG

2шт.

51

1025895

PLATE

WLDMT - bolting king pin 68"

2шт.

51

1025898

PLATE

WLDMT - bolting king pin 72"

2шт.

51

1025899

PLATE

WLDMT - bolting king pin 76"

2шт.

51

1025900

PLATE

WLDMT - bolting king pin 88"

2шт.

51

1025901

PLATE

WLDMT - bolting king pin 120"

2шт.

REF: 51 ILLUSTRATION SHOWS 6 BOLTING PLATE

1шт.

52

231-1448

NUT,1/2"-13, GB

- nylock: .50 NC GR6 ZP

1шт.

53

1013342

WASHER

1шт.

54

1013430

LOCK NUT

NUT - centerlock: 1.00 NC GR2 ZP

1шт.

55

1032161

CHAIN (AG)

CHAIN - safety 10.1K PC #8601553

1шт.

56

1032169

WASHER

- heavy duty

1шт.

57

1023331

BOLT

BOLT - hex: 1.00 x 2.50 NC GR5 ZP

1шт.

PATTERN 1989-1990. 8 BOLTING PLATE PATTERN 1990 TO 1991. AFTER 1991 THEY WENT TO A 9 BOLTING PLATE PATTERN: ALL NUMBER IN ITEM 51 ARE FOR THE 9 BOLTING PLATE. PER M.BAUMLER CONCORD ENGINEERING. MV

1шт.
