(69) - SECONDARY MANIFOLD GROUP

Запчасти Case IH 1802 (69) - SECONDARY MANIFOLD GROUP

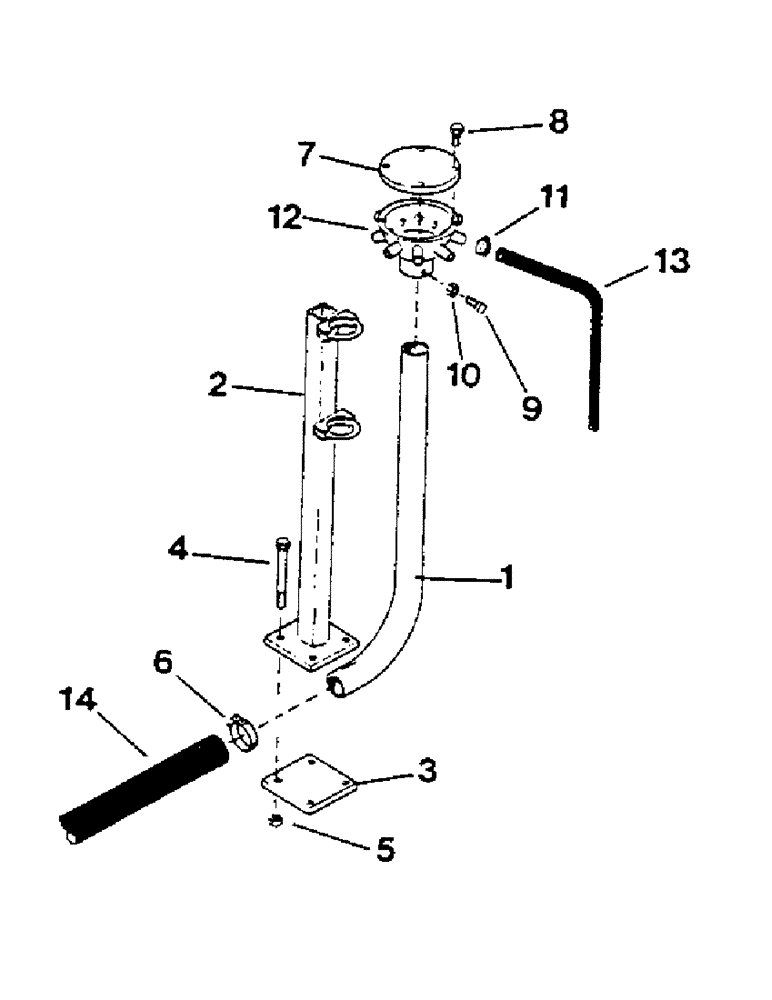

Схема запчастей Case IH 1802 - (69) - SECONDARY MANIFOLD GROUP
4
14
10
6
1
13
9
2
11
7
3
12
5
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1013209

TUBE,2.5" Diameter, 32.875" Length

ASSEMBLY, secondary

1шт.

1013210

BRACKET

ASSEMBLY (Ref. 2, 3, 4, 5)

1шт.

2

1013211

LARGE PLATE

BRACKET, mounting

1шт.

3

1012914

PLATE

1шт.

4

1013068

BOLT

BOLT

4шт.

5

1011578

NUT,5/8"-11, G5

4шт.

6

1012980

CLAMP

2.3" min - 3.25" max.

3шт.

7

1013191

COVER

manifold, 9 ports

1шт.

1013038

COVER

manifold, 10 ports

1шт.

1013192

COVER

manifold, 7 & 11 ports

1шт.

1013193

COVER

manifold, 8 & 12 ports

1шт.

1013194

COVER

manifold, 13 ports

1шт.

1014419

COVER

manifold, 14 ports

1шт.

8

1011598

BOLT

hex, 5/16" x 1"

4шт.

9

1013208

SET SCREW

1/4" x 1"

4шт.

10

1013518

LOCK NUT

NUT, jam, 1/4"

2шт.

11

1012979

CLAMP

.813" min. - 1.75" max.

1шт.

1015042

TUBE ASSY.

MANIFOLD, 7 ports

1шт.

1014485

TUBE ASSY.

MANIFOLD, 8 ports

1шт.

12

1013199

TUBE ASSY.

MANIFOLD, 9 ports

1шт.

1012426

TUBE ASSY.

MANIFOLD, 10 ports

1шт.

1013200

TUBE ASSY.

MANIFOLD, 11 ports

1шт.

1013201

TUBE ASSY.

MANIFOLD, 12 ports

1шт.

1013202

COVER

MANIFOLD, 13 ports

1шт.

1015044

COVER

MANIFOLD, 14 ports

1шт.

13

1012985

HOSE,1.00" ID

- 100 foot bundle 1.00" ID

1шт.

14

1012984

HOSE,2.50" ID

- 50 foot bundles (State length needed when ordering) 2.50" ID

1шт.
