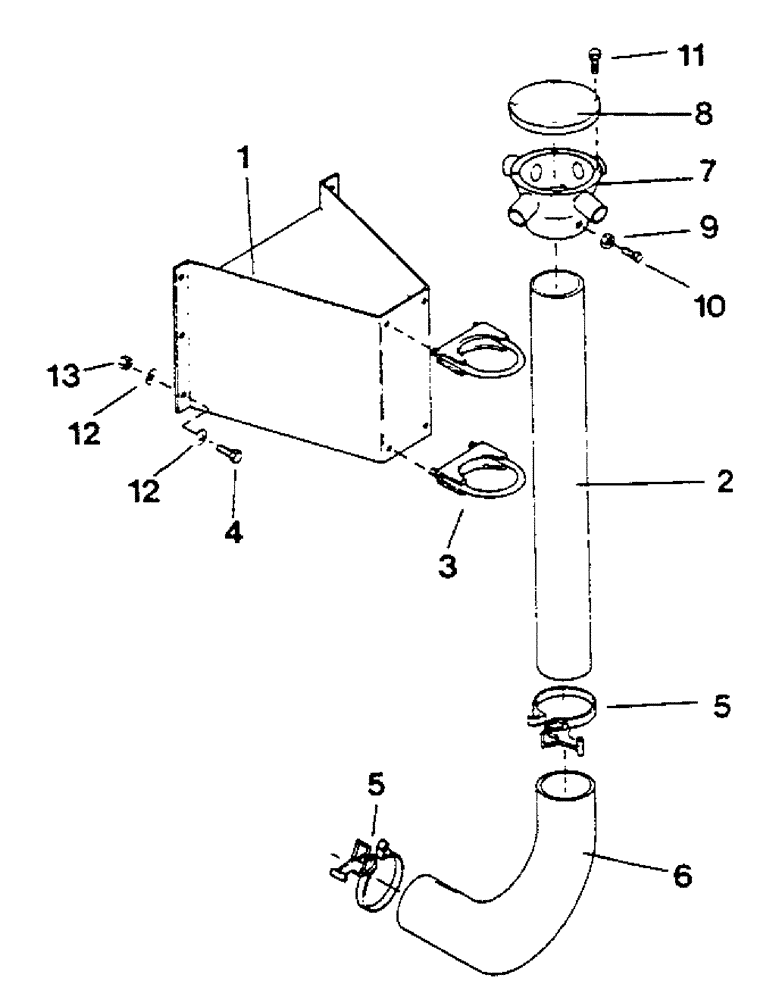

Запчасти Case IH 1802 (68) - PRIMARY MANIFOLD - TANK MOUNT

1

1014609

BRACKET

ASSEMBLY

1шт.

2

1014611

TUBE

1шт.

3

1013059

CLAMP

ASSEMBLY

2шт.

4

1011600

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, hex, 3/8" x 1"

6шт.

5

1013259

CLAMP

ASSEMBLY

2шт.

6

1015716

HOSE,5.00" ID x 18.00"

5.00" ID x 18.00"

1шт.

7

1013166

TUBE ASSY.

MANIFOLD, 2 ports

1шт.

1013167

TUBE ASSY.

MANIFOLD, 3 ports

1шт.

1012428

COVER

MANIFOLD, 4 ports

1шт.

1013168

COVER

MANIFOLD, 5 ports

1шт.

1013169

COVER

MANIFOLD, 6 ports

1шт.

1015877

MANIFOLD, 8 ports

1шт.

1015880

TUBE ASSY.

MANIFOLD, 12 ports

1шт.

1015322

TUBE ASSY.

MANIFOLD, 20 ports

1шт.

1015323

TUBE ASSY.

MANIFOLD, 24 ports

1шт.

1015879

TUBE ASSY.

MANIFOLD, 21 ports

1шт.

8

1013039

COVER

manifold, 2, 3, 4, 6, 8 ports

1шт.

1013190

COVER

manifold, 5 port

1шт.

1015860

COVER

manifold, 12 and 24 port

1шт.

1015861

COVER

manifold, 20 port

1шт.

1015862

COVER

manifold, 21 port

1шт.

9

1013518

LOCK NUT

NUT, jam, 1/4"

2шт.

10

1013208

SET SCREW

1/4" x 1"

2шт.

11

1011598

BOLT

hex, 5/16" x 1"

4шт.

12

1014608

WASHER

FLAT WASHER, 3/8"

12шт.

13

231-4246

LOCK NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

6шт.
