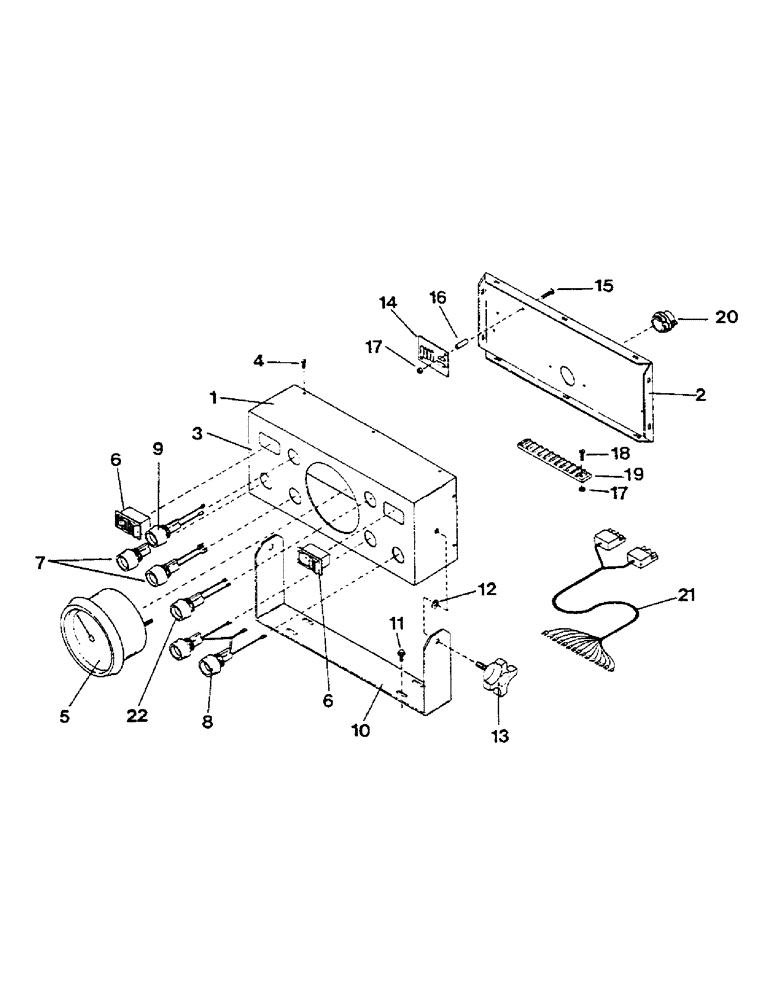

Запчасти Case IH 1802 (59) - INSTRUMENT BOX ASSEMBLY

1

1016232

INSTRUMENT BOX

1шт.

2

1016230

BACK PANEL

1шт.

3

1016299

DECAL, instrument panel

1шт.

4

1016335

SELF-TAP SCREW,1/2" - 20 x 1.406"

#6 x 1/4", pan head self tapping

10шт.

5

1016068

METER

TACHOMETER

1шт.

6

1016291

SWITCH

rocker

2шт.

7

1016290

LIGHT

indicator

2шт.

8

1016329

ELECTRICAL WIRE

LIGHT ASSEMBLY, water & oil

1шт.

9

1016328

ELECTRICAL WIRE

LIGHT ASSEMBLY, clutch

1шт.

10

1016307

BRACKET

mounting

1шт.

11

100862

GASKET

SCREW, #10 x 1/2", self tapping

4шт.

12

100979

SELECTOR

2шт.

13

1016346

KNOB

ASSEMBLY

2шт.

14

1016200

BOARD

CIRCUIT BOARD ASSEMBLY

1шт.

15

1016333

SCREW

#6 x 1", round head slotted

2шт.

16

1016331

SPACER

2шт.

17

1015483

NUT

hex, #6

6шт.

18

1016334

SCREW

#6 x 1/2", round head slotted

4шт.

19

1016308

STRIP, connector

1шт.

20

1016332

CONNECTOR, box

1шт.

21

1016275

HARNESS

WIRING HARNESS, instrument box

1шт.

22

1016641

LIGHT ASSY.

LIGHT, indicator

1шт.
