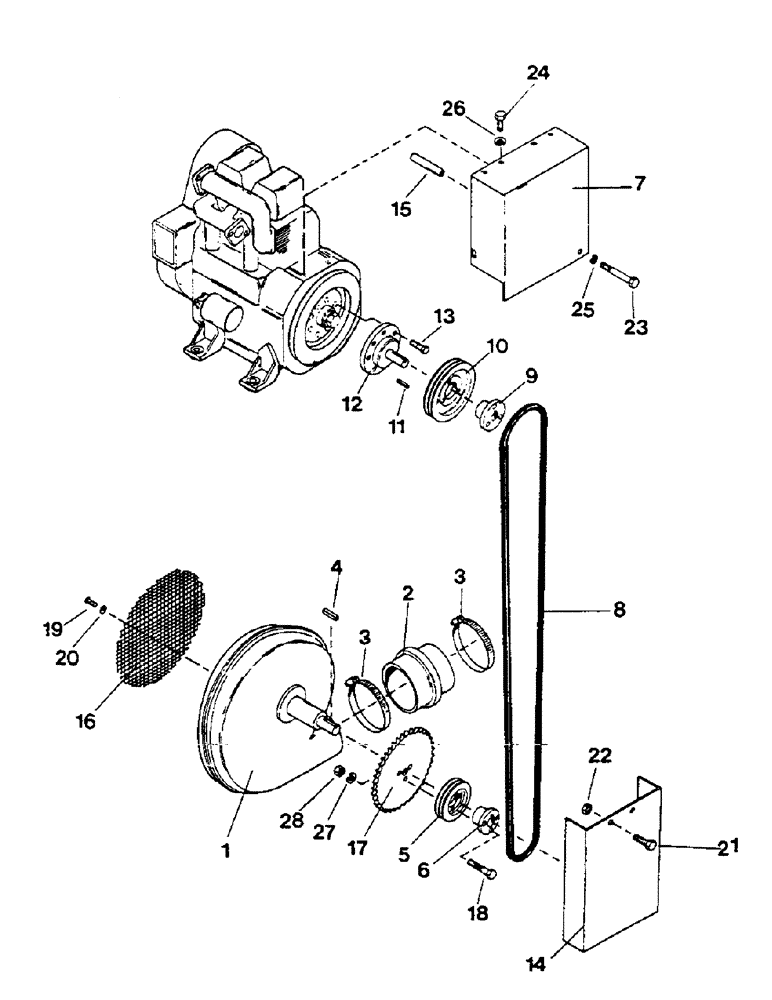

Запчасти Case IH 1802 (50) - BLOWER MOUNTING GROUP, MODEL AS1502

1

1014980

BLOWER

ASSEMBLY (Includes 16-20)

1шт.

1016236

BLOWER

(See breakdown page 49)

1шт.

2

1014892

HOSE,5.00" ID, 6.00" ID x 6.00"

- Reducer 5.00" ID, 6.00" ID x 6.00"

1шт.

3

1012455

CLAMP

2шт.

4

1014870

KEY

1шт.

5

1014865

SHEAVE

- driven

1шт.

6

1014868

HUB

1шт.

7

1014878

BELT

GUARD, belt

1шт.

8

1016417

SET OF BELTS,0.38" W

(One matched pair) 0.38" W

1шт.

9

1012343

HUB

bearing

1шт.

10

1014863

SHEAVE

- driver, 6.90" O.D.

1шт.

1014864

SHEAVE

- driver, 8.00" O.D. optional

1шт.

11

1012975

KEY

1шт.

12

1012363

SHAFT

STUBSHAFT - drive

1шт.

13

1012384

BOLT

1шт.

14

1014879

BELT

GUARD, belt

1шт.

15

1014884

SPACER, guard

1шт.

16

1014962

SCREEN

1шт.

order kit 1020801 - the 1014962 screen is not available - that screen was disk that was screwed directly to the blower. This kit will convert to todays style where they have a cylinder of screen that gets attached to the blower. The kit can been seen in catalog 9-28512 page 34-E & 35-E. It is now used across all air systems - same blower asy.

1шт.

17

1016120

SPROCKET ASSY.

SPROCKET

1шт.

18

1016211

BOLT

BOLT, hex, 1/4" x 2"

3шт.

19

1013243

BOLT

BOLT, 1/4" x 1/2"

6шт.

20

1014977

BLANK-OFF PLUG

SLUG

6шт.

21

1011602

BOLT

BOLT, 3/8" x 1 1/2"

2шт.

22

280136

NUT,3/8"-16, G8

2шт.

23

1016422

BOLT, metric, 10mm x 130mm

1шт.

24

1015084

BOLT

metric, 8mm x 16mm

2шт.

25

1013043

WASHER

2шт.

26

1011582

WASHER

1шт.

27

1013242

WASHER, LOCK

LOCKWASHER, 1/4"

3шт.

28

1011587

NUT,1/4"-20, G5

hex, 1/4"

3шт.
