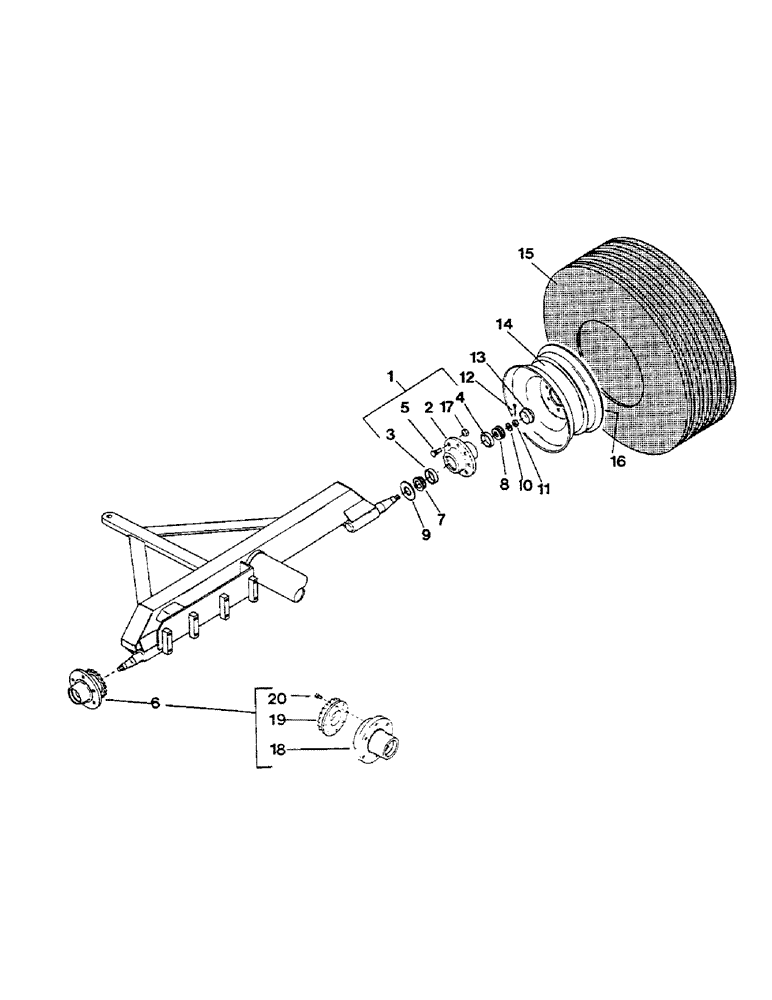

Запчасти Case IH 1802 (46) - REAR AXLE GROUP, 8 BOLT HUB

1

1013465

CAP ASSY.

HUB ASSEMBLY (With cups, hub, bolts, nuts)

1шт.

2

1013466

HUB

1шт.

3

1013467

BEARING, CUP,3.54" OD x 0.7283"

CUP, inner

1шт.

4

1012359

CUP

outer

1шт.

5

1013469

BOLT

wheel

8шт.

6

HUB & SPROCKET ASSEMBLY (Ref. 18, 19, 20)

1шт.

7

1013468

BEARING, ROLLER,2.4" ID x 0.9055"

CONE, inner

1шт.

8

1012354

ROLLER BEARING,1.625" ID x 2.09375" OD x 0.7656"

CONE, outer

1шт.

9

1013471

SEAL

1шт.

10

1013475

WASHER

1шт.

11

425-1316

NUT,1"-14, G5

NUT, slotted

1шт.

12

1013473

ANGLE BAR

COTTER PIN

1шт.

13

1013474

CAP

HUB CAP

1шт.

14

1013464

RIM

2шт.

15

1013463

TYRE/TIRE

TIRE

2шт.

1016042

TYRE/TIRE

TIRE, all weather implement, 16.5L x 16.1 - 10 ply

2шт.

16

1012383

VALVE STEM

2шт.

17

1013470

NUT

beveled

8шт.

18

1013524

HUB ASSY.

HUB

1шт.

19

1013713

FLANGE ASSY

FLANGE & SPROCKET

1шт.

20

1011595

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT

8шт.
