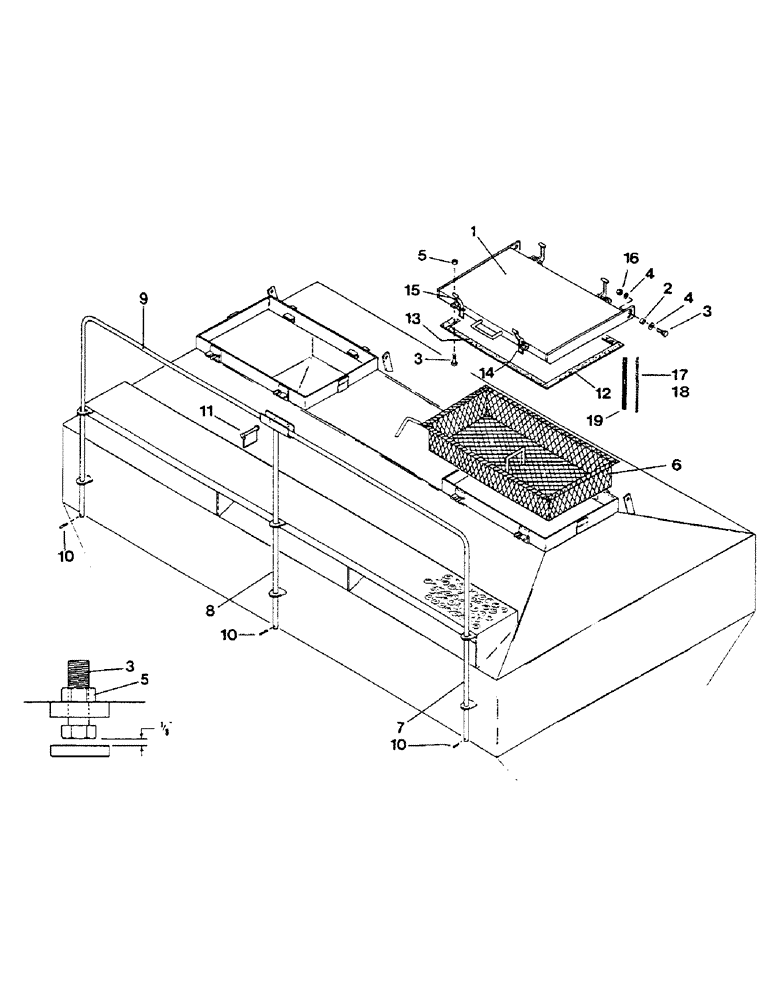

Запчасти Case IH 1802 (43) - RAILING AND COVER GROUP, MODEL AS1502

1

1015904

COVER ASSEMBLY

2шт.

2

1015941

SPACER, pivot

4шт.

3

1011609

BOLT

BOLT, hex, 1/2" x 1 1/2"

16шт.

4

1014443

WASHER

flat

8шт.

5

1011591

NUT,Jam, 1/2"-13, G5

jam, 1/2"

8шт.

6

1015067

GRILLE

GRILL ASSEMBLY

2шт.

7

1013150

RAIL

ASSEMBLY - front

1шт.

8

1013151

HOUSING

POST ASSEMBLY - center

1шт.

9

1013152

RAIL ASSEMBLY - rear

1шт.

10

1012930

PIN

ROLL PIN, 5/16" x 2"

3шт.

11

1013225

PIN

lynch

2шт.

12

1015907

GASKET

cover

4шт.

13

1015906

GASKET

cover

4шт.

14

1015196

U-BOLT

toggle

4шт.

15

1013286

TOGGLE

TOGGLE ASSEMBLY

4шт.

16

1011097

NUT,1/2"-13, G5

hex

4шт.

17

1015928

CARRIER

CHAIN

2шт.

18

1016491

CHAIN, repair link

2шт.

19

1016490

HOSE,1.00" ID x 26.75"

- Chain 1.00" ID x 26.75"

2шт.
